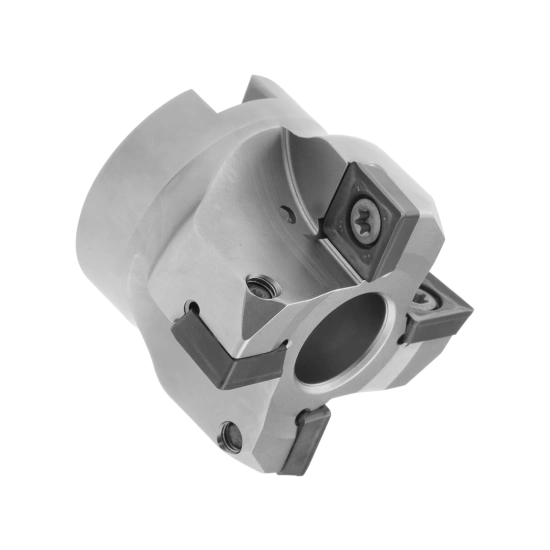

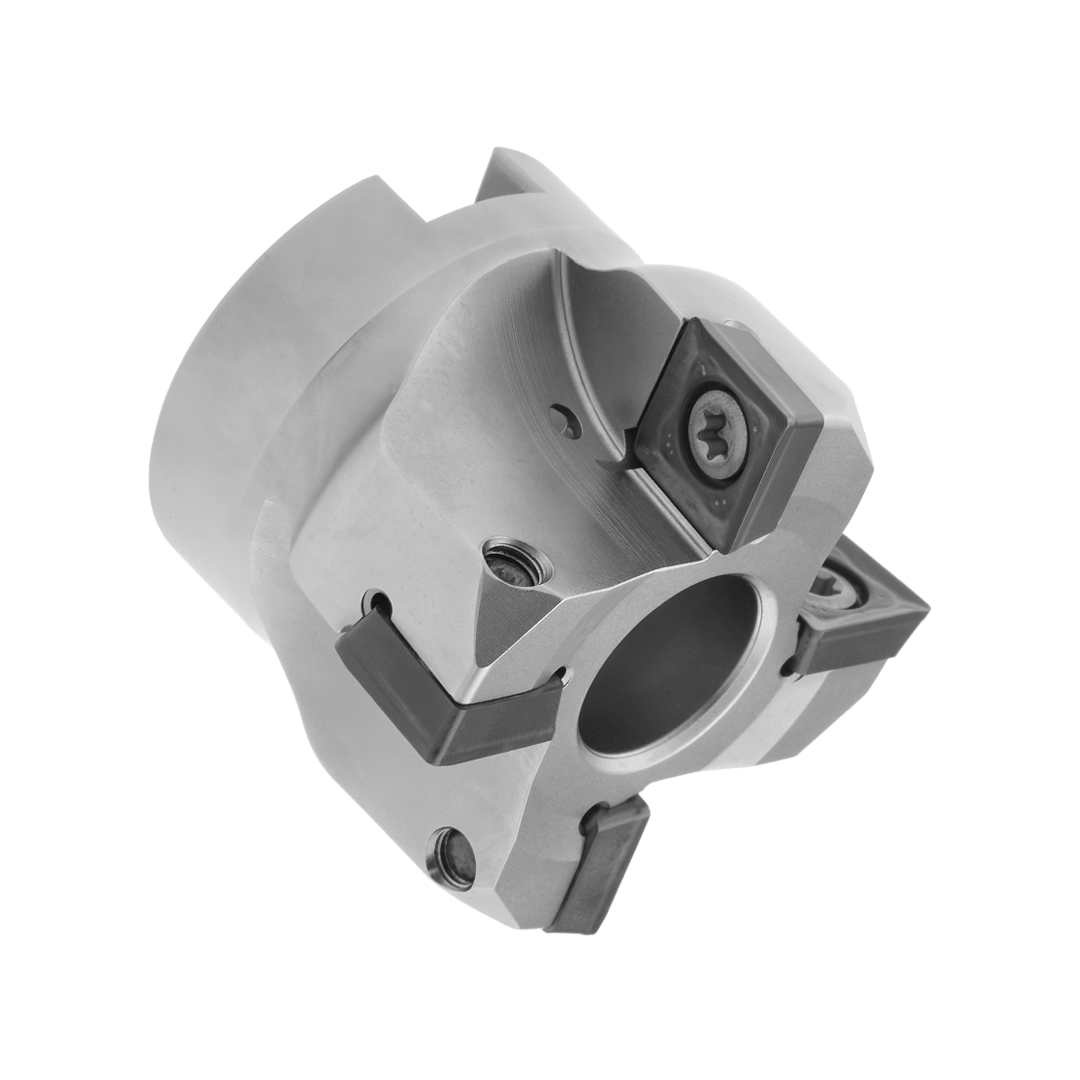

MILLING TOOL 080A06290-06-06-027050
181168000 | FRESA 080A06290-06-06-027050
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
11 mm
Axial rake angle (GAMP)
6
Connection diameter (DCONMS)
27 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
80 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
50 mm
Radial rake angle (GAMF)
-6
Cutting item count (CICT)
6
Contact surface diameter machine side (DCSFMS)
60 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
5
Spare parts
KEY SD6368-20
Article code
290058200
Reference
SD6368-20
SCREW J0204610
Article code
119163200
Reference
J0204610
SCREW P0501100
Article code
290017500
Reference
P0501100
TORX KEY DT2050
Article code
290078400
Reference
DT2050
