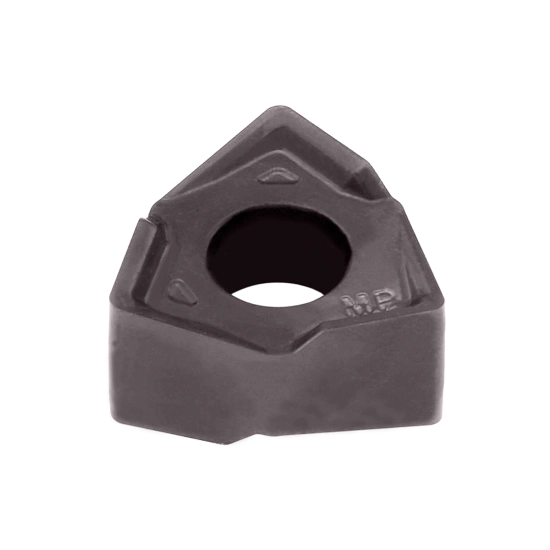

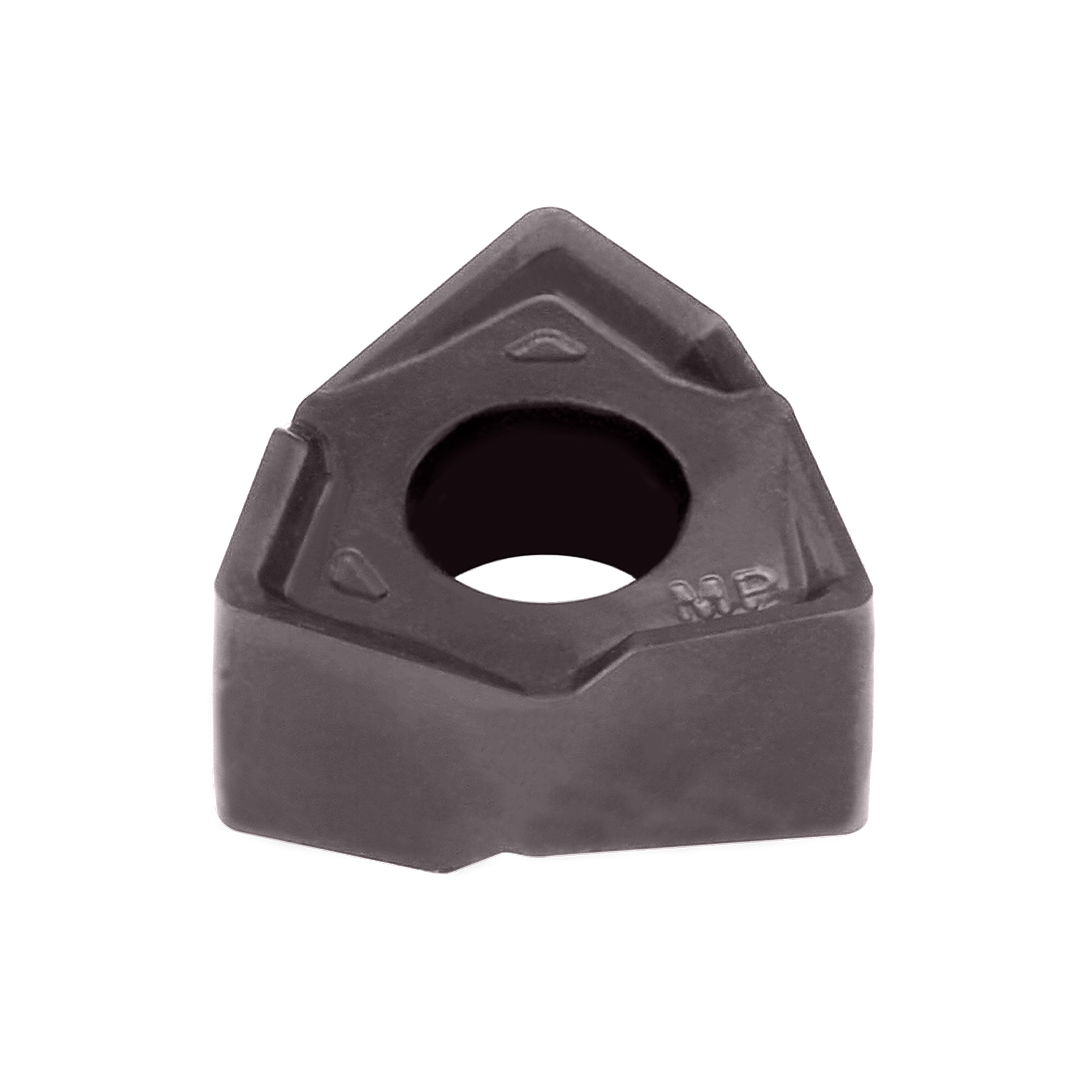

INSERT WNXT 080608 PNSR-MP PHP920
1113000T1 | PAST. WNXT 080608 PNSR-MP PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
6

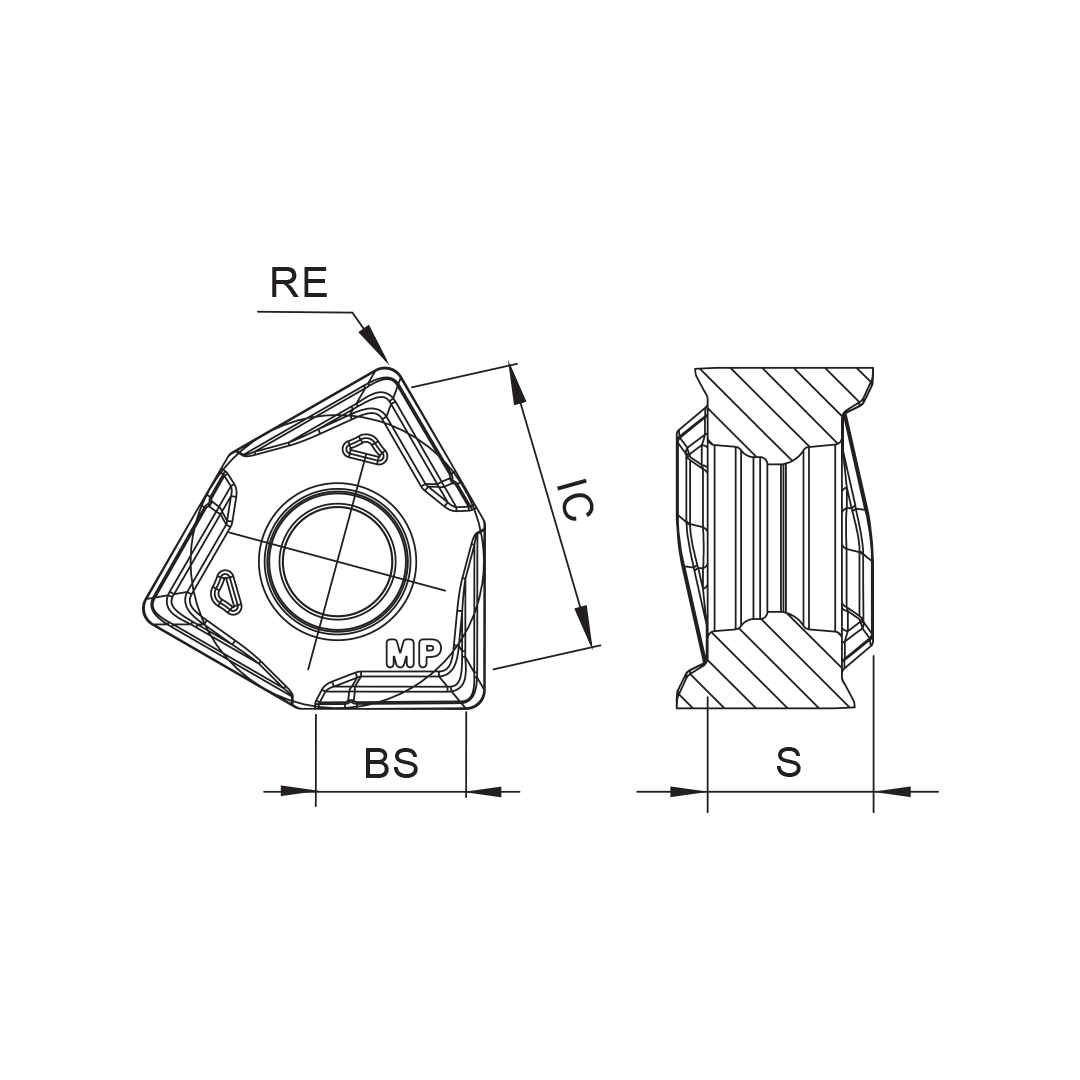

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
W
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PHP920
Insert thickness (S)
6.3 mm
Wiper edge length (BS)
4.1 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.185 mm
Tolerance class insert (TCINS)
X
Start values
- K
VC (m/min) (120 - 270)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7.5)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7.5)
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7.5)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7.5)
