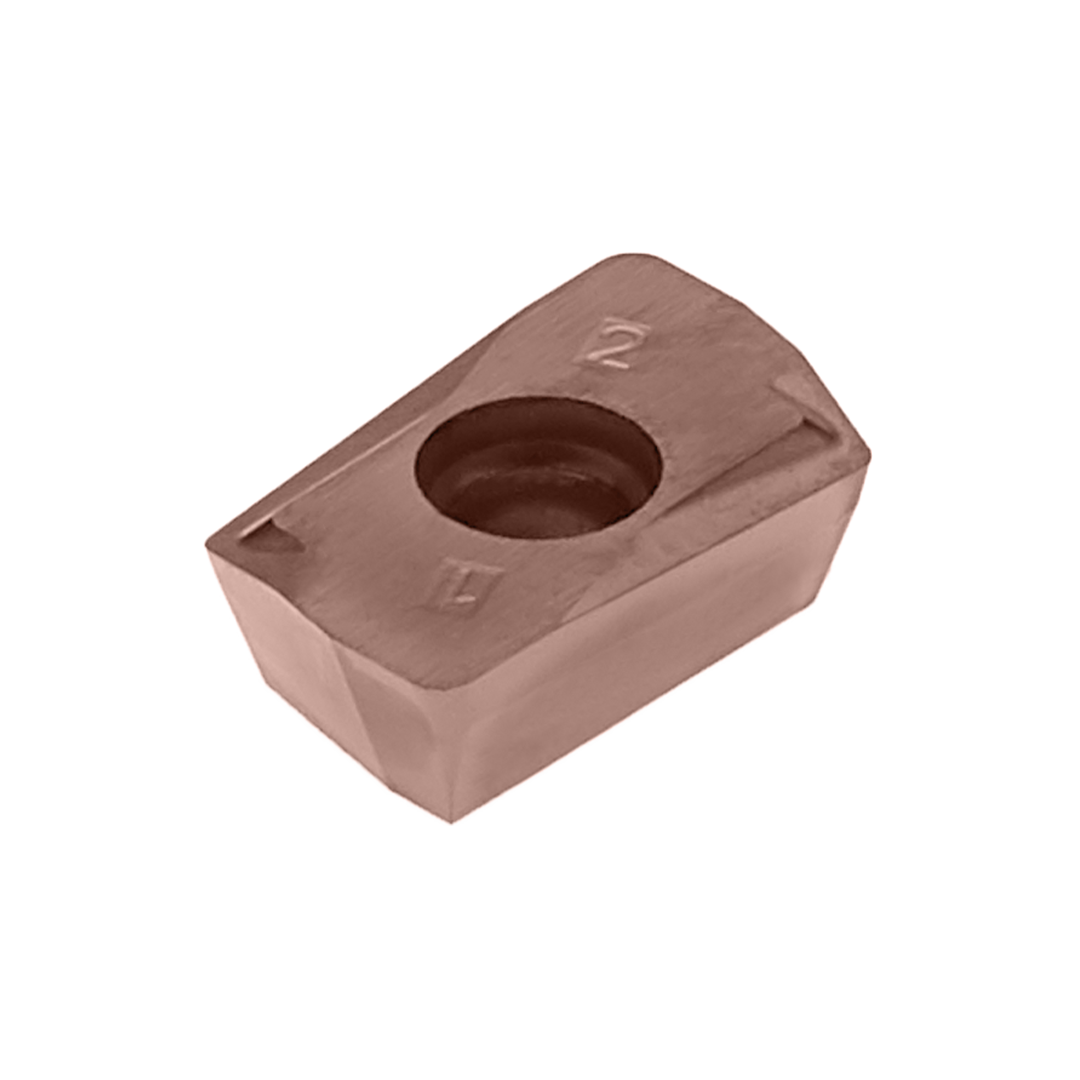

INSERT XPHW 100310 ZER-MH PHH603
1112736X4 | PAST. XPHW 100310 ZER-MH PHH603
Product data
Material classification level 1 (TMC1ISO)
- P
- H
Operation type (CTPT)
Shoulder Milling
Insert shape code (SC)
X
Cutting edge effective length (LE)
3 mm
Corner radius (RE)
1
Hand (HAND)
R
Grade (GRADE)
PHH603
Insert thickness (S)
3.6 mm
Wiper edge length (BS)
0.051 mm
Chip breaker manufacturer's designation (CBMD)
MH
Fixing hole diameter (D1)
0.1142 mm
Insert length (INSL)
0.2736 mm
Tolerance class insert (TCINS)
P
