INSERT XPHW 100308 ZER-MH PHP910
1112500X5 | PAST. XPHW 100308 ZER-MH PHP910
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Shoulder Milling
Insert shape code (SC)
X
Cutting edge effective length (LE)
3 mm
Corner radius (RE)
0.8
Hand (HAND)
R
Grade (GRADE)
PHP910
Insert thickness (S)
3.6 mm
Wiper edge length (BS)
0.059 mm
Chip breaker manufacturer's designation (CBMD)
MH
Fixing hole diameter (D1)
0.1142 mm
Insert length (INSL)
0.2736 mm
Tolerance class insert (TCINS)
P

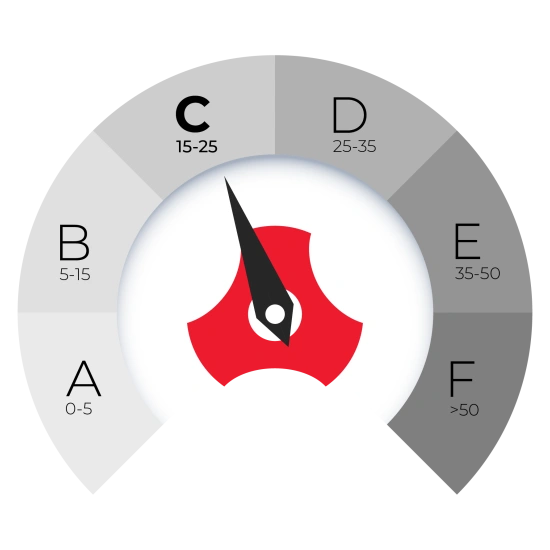

PCF Classification
Start values
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 3)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 3)
