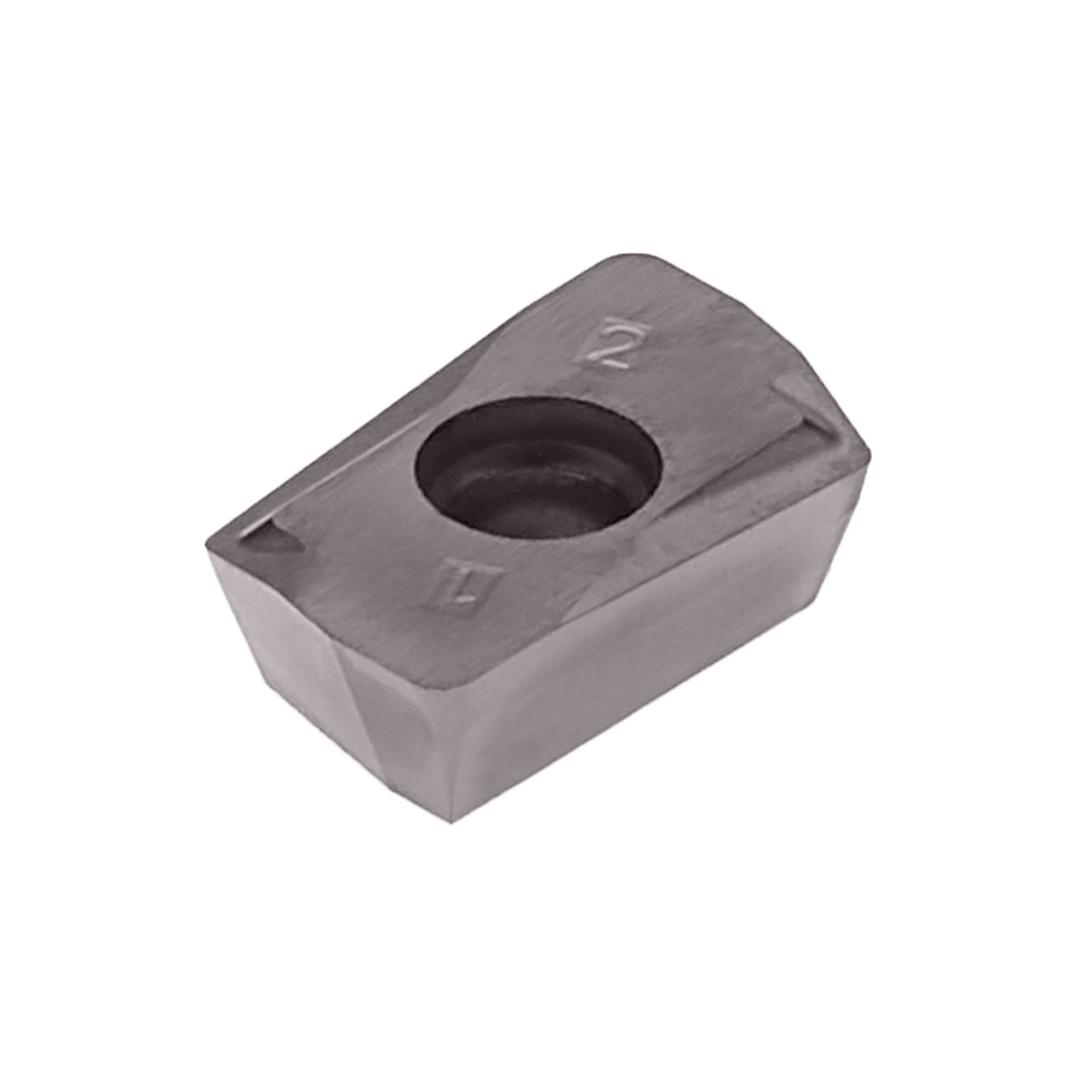

INSERT XPHW 100308 ZER-MH PH7603
1112500P7 | PAST. XPHW 100308 ZER-MH PH7603
Product data
Material classification level 1 (TMC1ISO)
- H
Operation type (CTPT)
Shoulder Milling
Insert shape code (SC)
X
Cutting edge effective length (LE)
3 mm
Corner radius (RE)
0.8
Hand (HAND)
R
Grade (GRADE)
PH7603
Insert thickness (S)
3.6 mm
Wiper edge length (BS)
0.059 mm
Chip breaker manufacturer's designation (CBMD)
MH
Fixing hole diameter (D1)
0.1142 mm
Insert length (INSL)
0.2736 mm
Tolerance class insert (TCINS)
P
Start values
- H
VC (m/min) (120 - 240)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 3)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 3)
- P
VC (m/min) (180 - 300)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 3)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 3)
