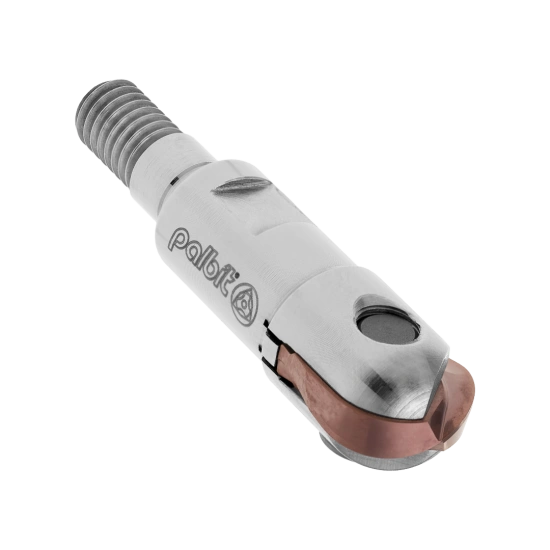

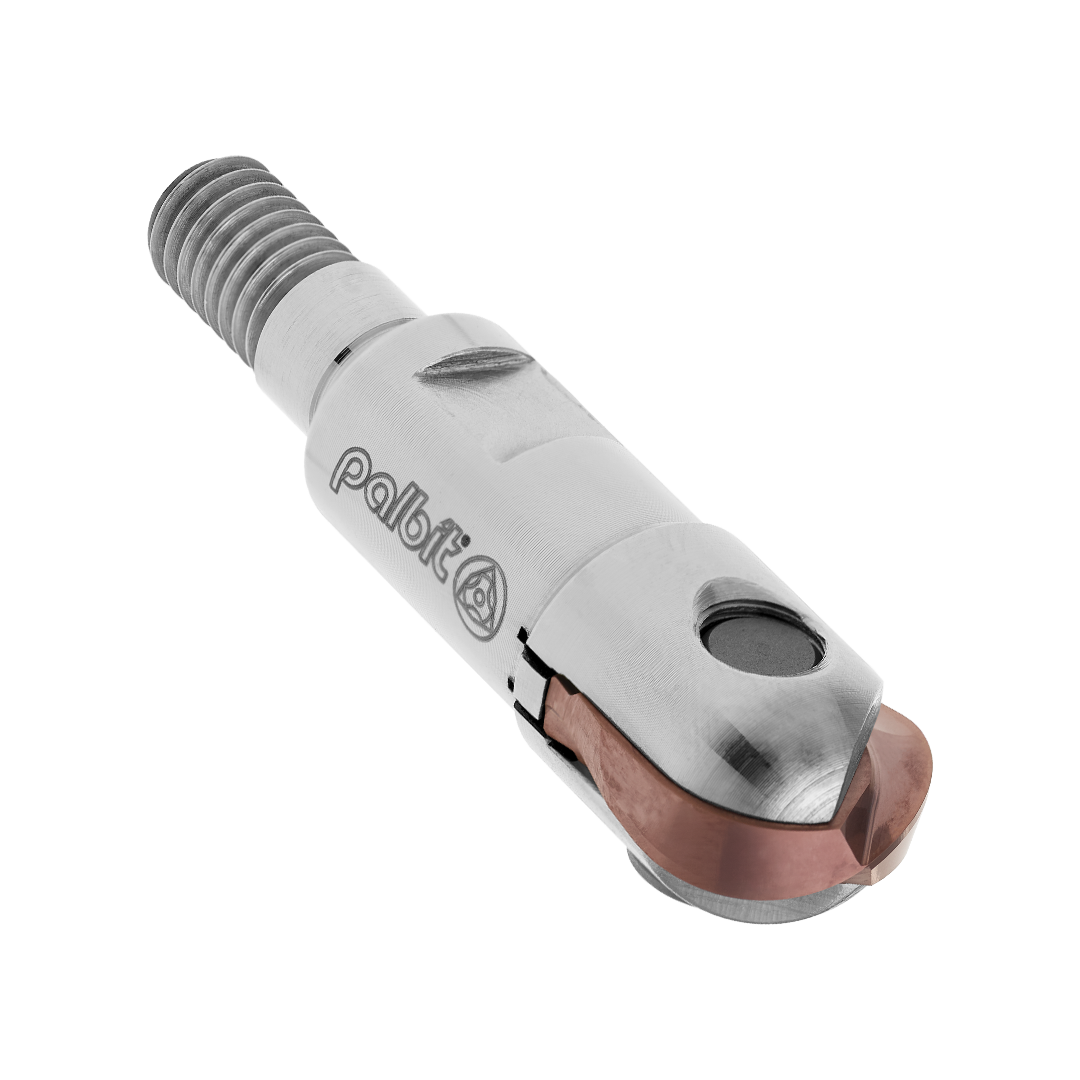

MILLING TOOL 012R62090-02-M06030

181209800 | FRESA 012R62090-02-M06030

Technical flyer Web page

Product data

Hand (HAND)

Depth of cut maximum (APMX)

6 mm

Adaptive interface machine direction (ADINTMS)

Threaded Coupling

Cutting diameter (DC)

12 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

30 mm

Cutting item count (CICT)

Cutting pitch differential (CPDF)

Torque (TQ)

Connection Thread Nominal Size Machine Side (THSZMS)

M06

Downloads

Basic 3D model (STP)

2D drawing (DXF)

Spare parts

Article code

290084400

Reference

P0501025

Article code

290078400

Reference

DT2050

Article code

290013200

Reference

XT20-S40
