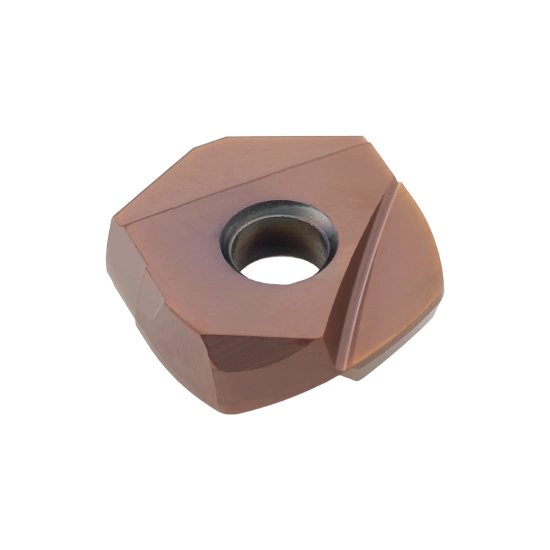

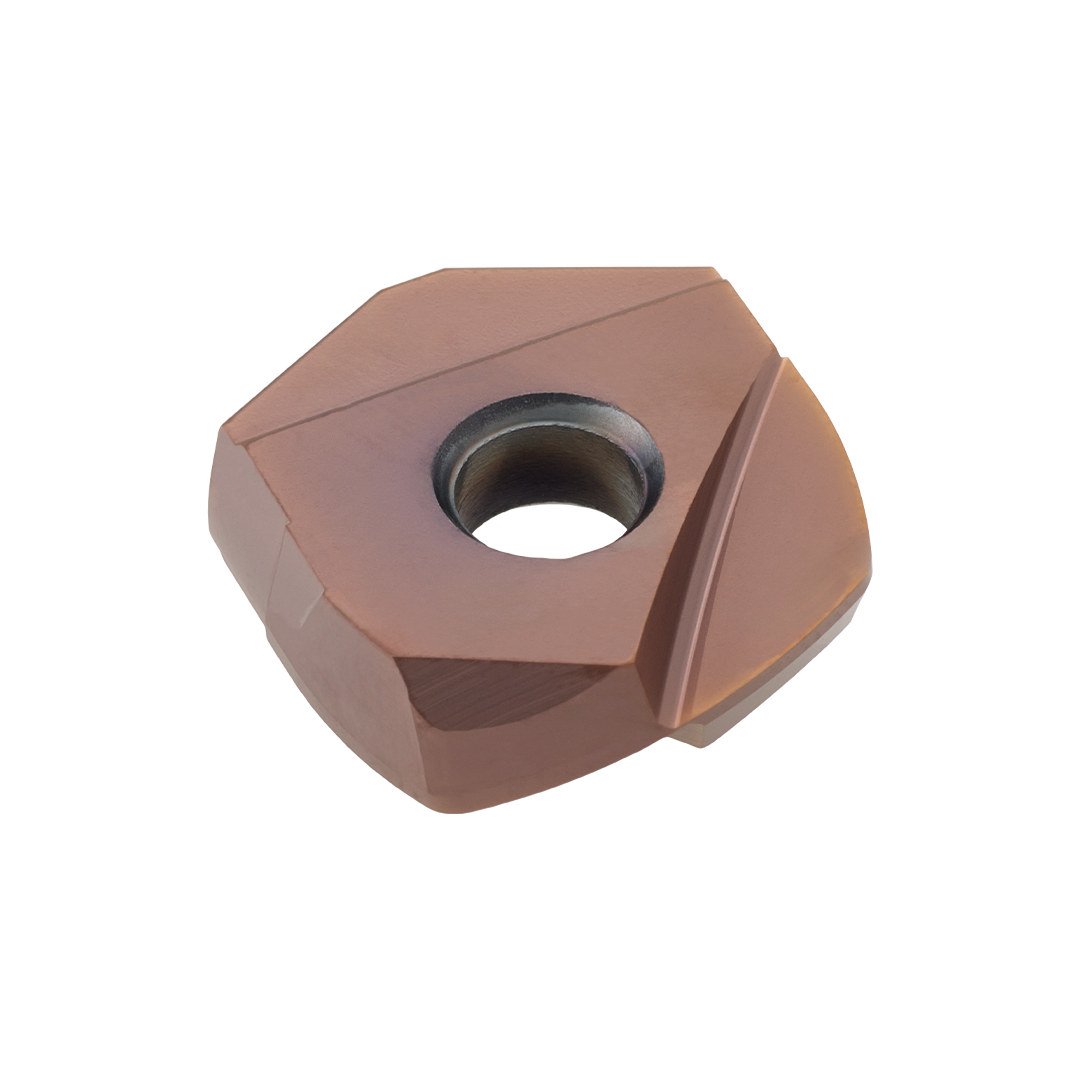

INSERT WCX-16 LE 1.5-16.0 PHF910

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

11134124F | PAST. WCX-16 LE 1.5-16.0 PHF910

Technical flyer Web page

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Profile Miling

Cutting edge count (CEDC)

Insert shape code (SC)

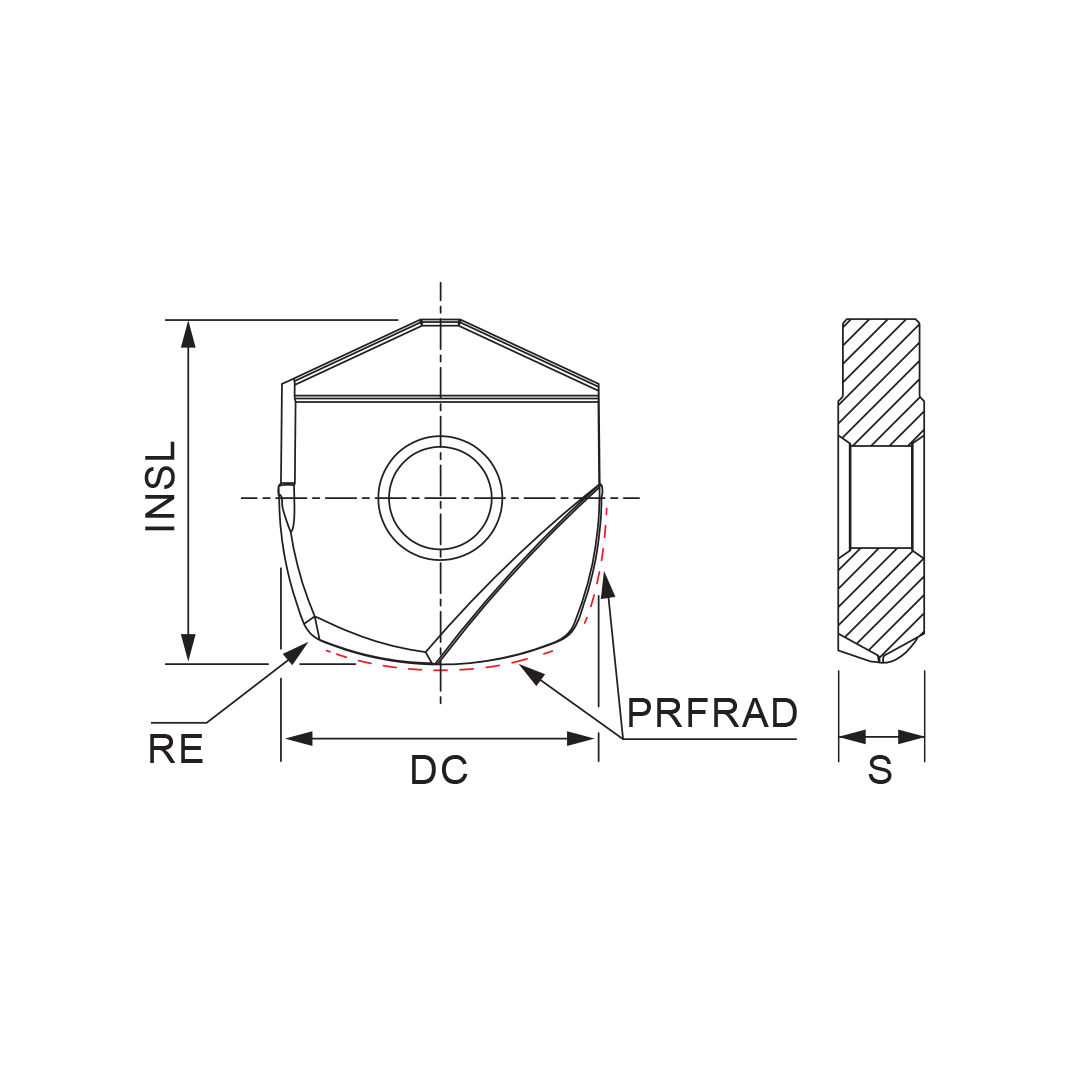

Corner radius (RE)

0.1 mm

Hand (HAND)

Grade (GRADE)

PHF910

Insert thickness (S)

4.2 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.1969 mm

Insert length (INSL)

16.6 mm

Tolerance class insert (TCINS)
