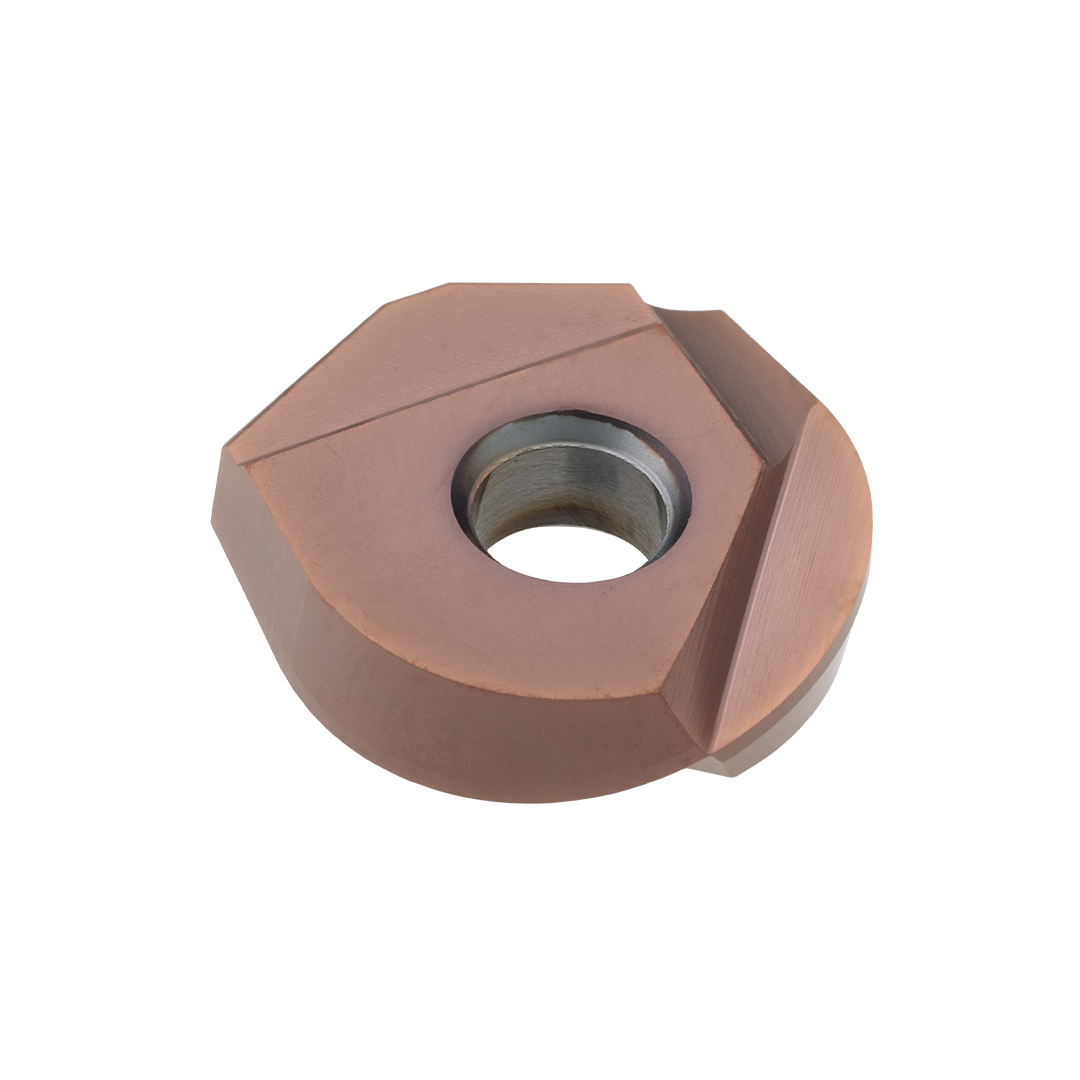

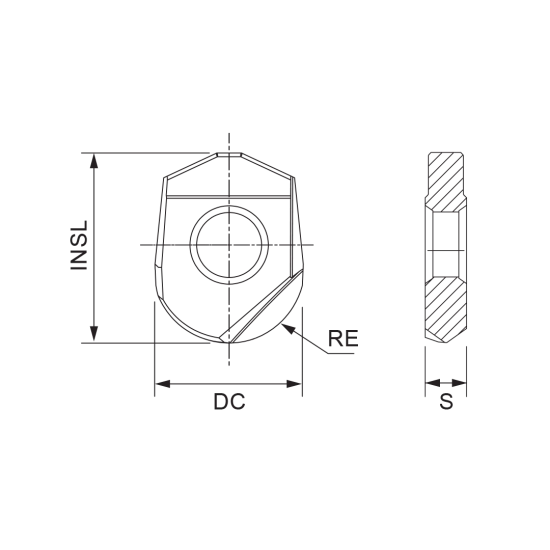

INSERT WCR-16 PHH603
1112100X4 | PAST. WCR-16 PHH603
Product data
Material classification level 1 (TMC1ISO)
- P
- H
Operation type (CTPT)
Profile Miling
Cutting edge count (CEDC)
2
Insert shape code (SC)
W

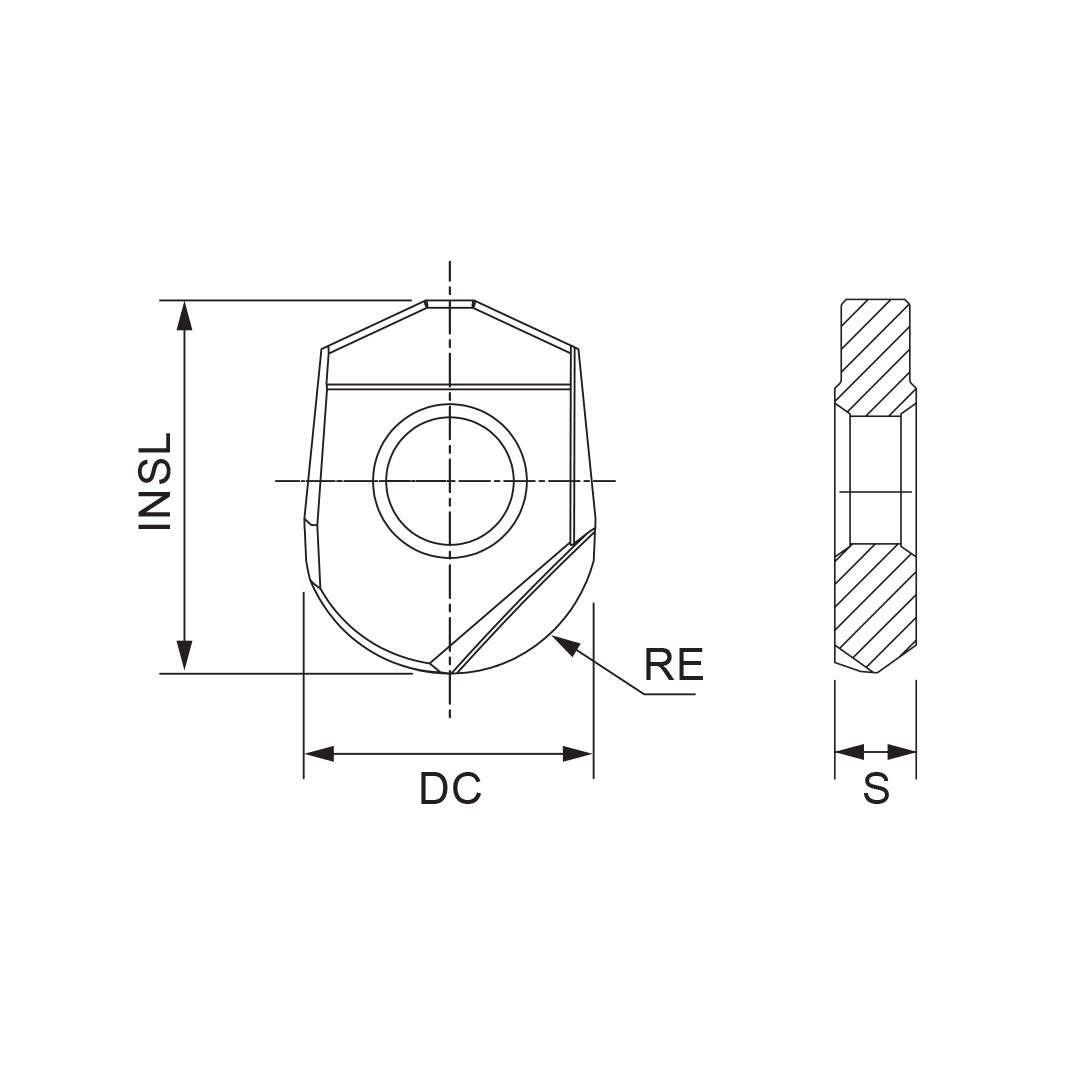

Corner radius (RE)
8 mm
Hand (HAND)
R
Grade (GRADE)
PHH603
Insert thickness (S)
4.2 mm
Fixing hole diameter (D1)
0.1969 mm
Insert length (INSL)
16.6 mm
Tolerance class insert (TCINS)
R
Start values
- H
VC (m/min) (70 - 270)
FZ (mm/t) (0.04 - 0.45)
AP (mm) (0.01 - 8)
FZ (mm/t) (0.04 - 0.45)
AP (mm) (0.01 - 8)
- P
VC (m/min) (180 - 310)
FZ (mm/t) (0.04 - 0.45)
AP (mm) (0.01 - 8)
FZ (mm/t) (0.04 - 0.45)
AP (mm) (0.01 - 8)
