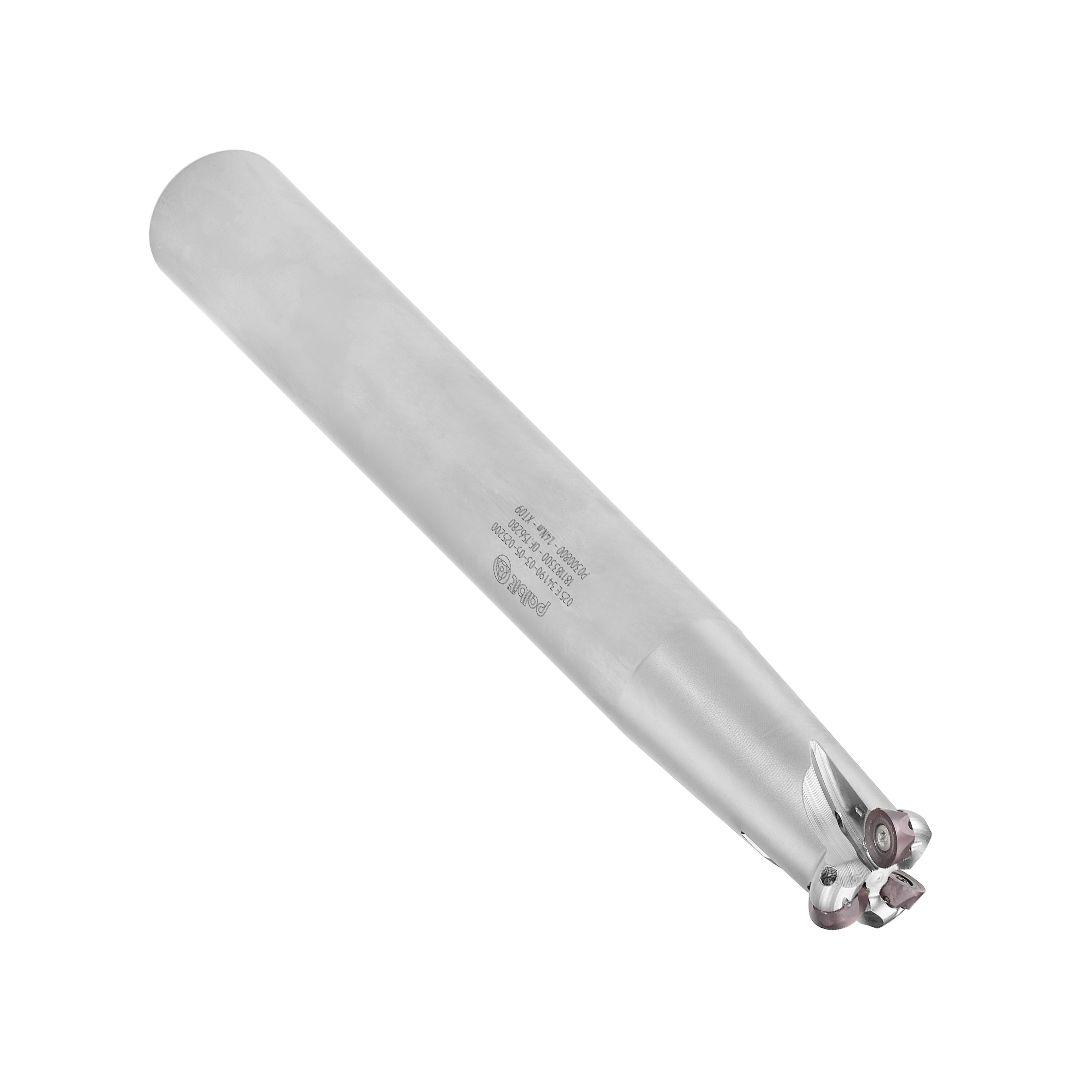

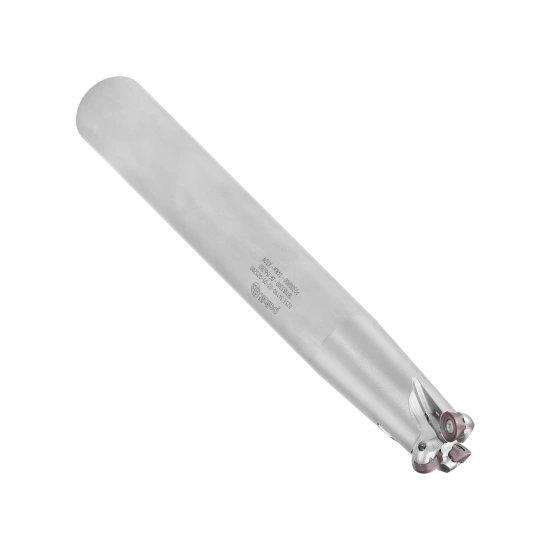

MILLING TOOL 032E34190-04-05-032200
181191500 | FRESA 032E34190-04-05-032200
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
5 mm
Axial rake angle (GAMP)
5
Connection diameter (DCONMS)
32 mm
Adaptive interface machine direction (ADINTMS)
Cylindrical Shank
Cutting diameter (DC)
22 mm
Maximum cutting diameter (DCX)
32 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
200 mm
Usable length (LU)
60 mm
Radial rake angle (GAMF)
-4
Cutting item count (CICT)
4
Cutting pitch differential (CPDF)
NO
Torque (TQ)
1.4
Prog. Stocks
No
* cutting tool parameters according to ISO 13399. Read more here
Related products
Spare parts
SCREW P0300800
Article code
290009100
Reference
P0300800
TORX KEY DT0914
Article code
290059900
Reference
DT0914
TORX KEY XT09
Article code
290025700
Reference
XT09
