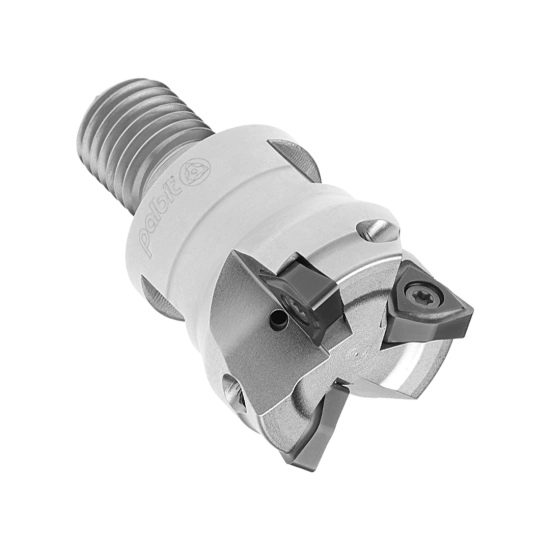

MILLING TOOL 035R45095-03-06-M16035
181037600 | FRESA 035R45095-03-06-M16035

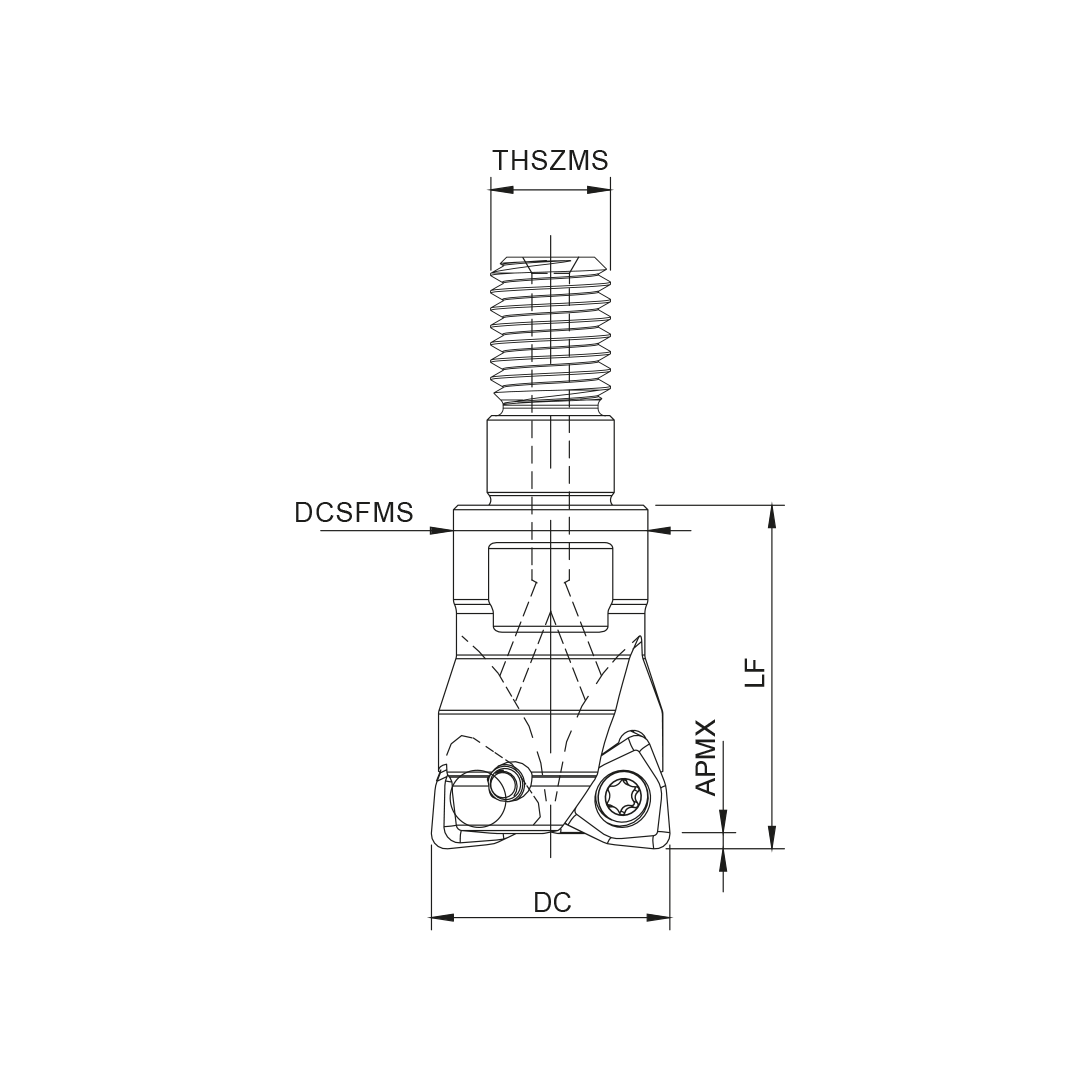

Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
0.5 mm
Axial rake angle (GAMP)
6
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
35 mm
Tool cutting edge angle (KAPR)
95
Functional length (LF)
35 mm
Radial rake angle (GAMF)
-13
Cutting item count (CICT)
3
Contact surface diameter machine side (DCSFMS)
29 mm
Torque (TQ)
2
Connection Thread Nominal Size Machine Side (THSZMS)
M16
Related products
Spare parts
SCREW P0350902
Article code
290027100
Reference
P0350902
TORX KEY DT1020
Article code
290060000
Reference
DT1020
TORX KEY XT10
Article code
290013100
Reference
XT10
