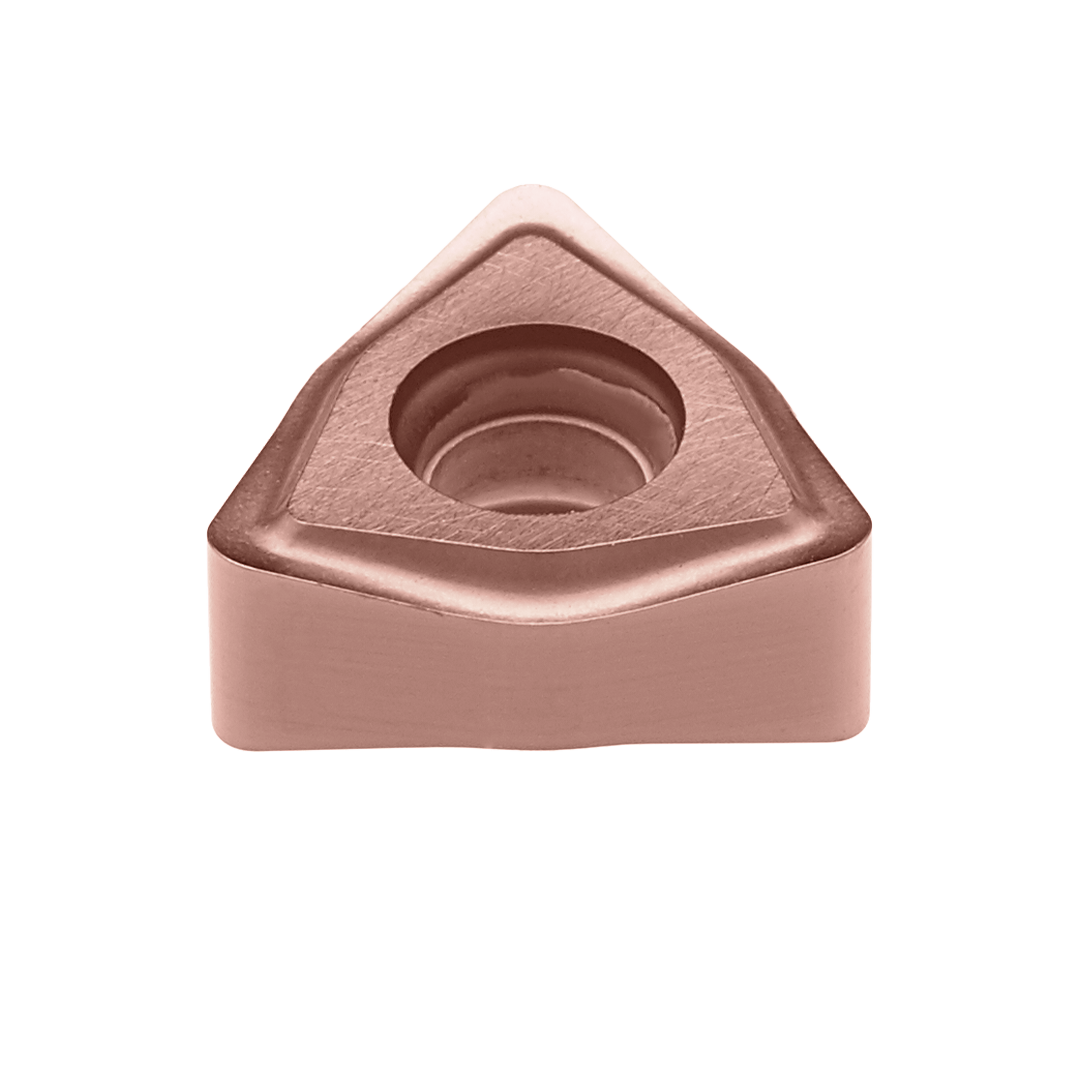

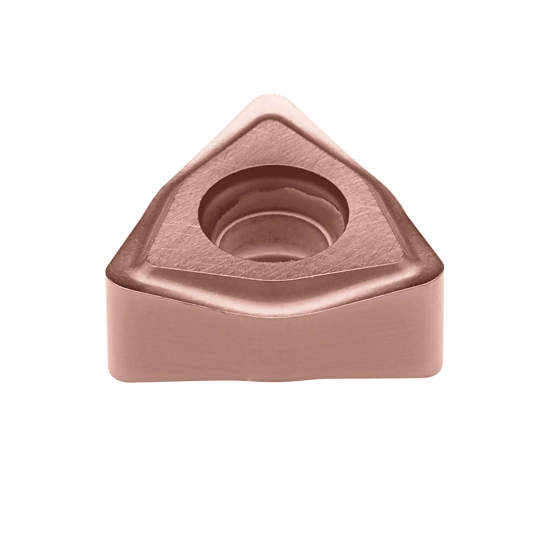

INSERT WNHU 060410 PHH603
1111424X4 | PAST. WNHU 060410 PHH603
Product data
Material classification level 1 (TMC1ISO)
- P
- H
Operation type (CTPT)
Profile Miling
Cutting edge count (CEDC)
6
Inscribed circle diameter (IC)
9.53 mm
Insert shape code (SC)
W
Cutting edge effective length (LE)
3.4 mm
Corner radius (RE)
1 mm
Hand (HAND)
R
Grade (GRADE)
PHH603
Insert thickness (S)
4.76 mm
Chip breaker manufacturer's designation (CBMD)
10
Fixing hole diameter (D1)
0.1575 mm
Tolerance class insert (TCINS)
H
Start values
- H
VC (m/min) (70 - 270)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.03 - 0.3)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.03 - 0.3)
- P
VC (m/min) (180 - 310)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.03 - 0.3)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.03 - 0.3)
