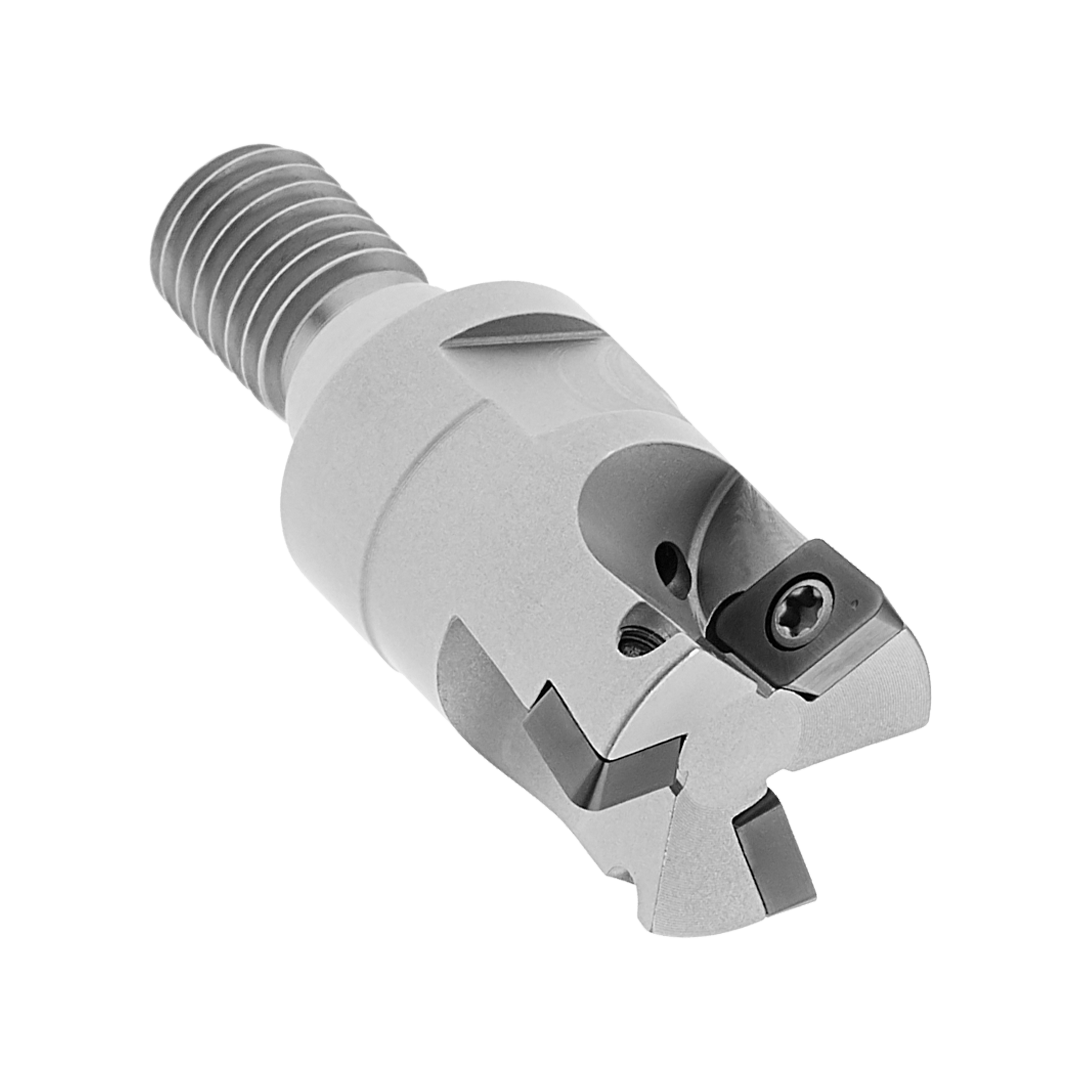

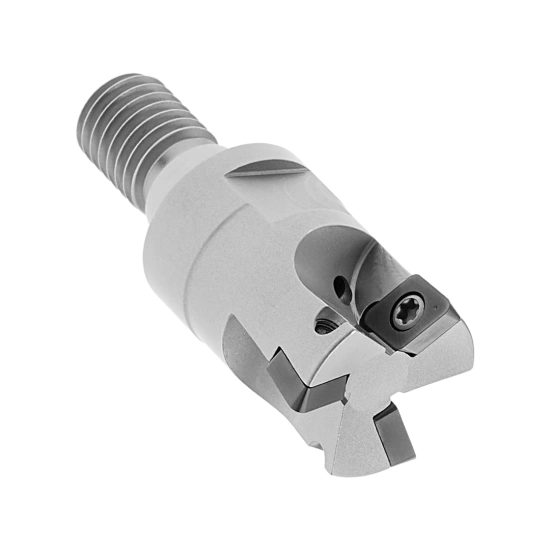

MILLING TOOL 012R41095-02-09-M06020
181016300 | FRESA 012R41095-02-09-M06020
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
0.8 mm
Axial rake angle (GAMP)
9
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
12 mm
Tool cutting edge angle (KAPR)
95
Functional length (LF)
20 mm
Radial rake angle (GAMF)
-4,5
Cutting item count (CICT)
2
Contact surface diameter machine side (DCSFMS)
9.8 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
0.6
Connection Thread Nominal Size Machine Side (THSZMS)
M06
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Downloads
Spare parts
SCREW P0180401
Article code
290011300
Reference
P0180401
TORX KEY XT06
Article code
290011400
Reference
XT06
