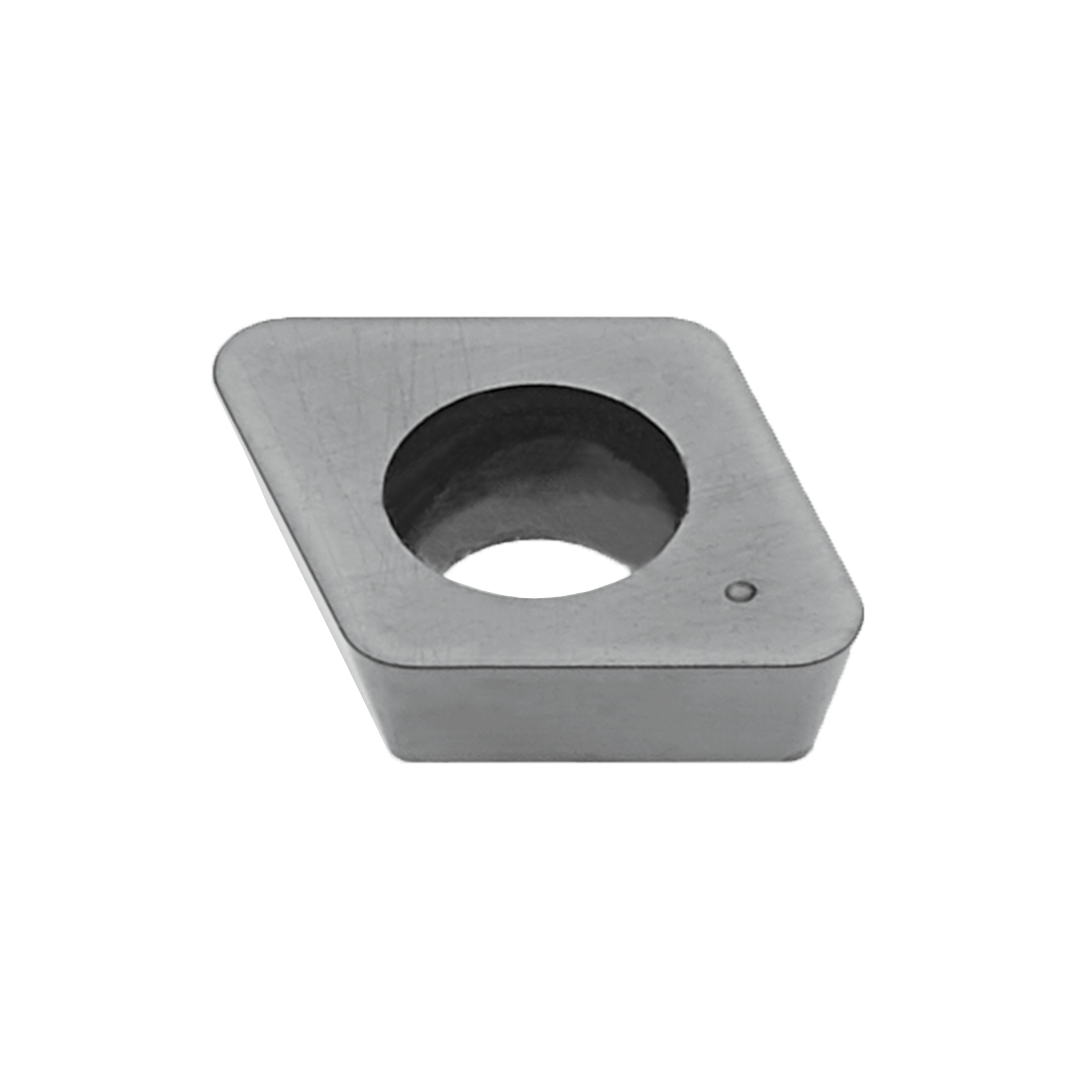

INSERT XDHW 060210 PH6910
111053254 | PAST. XDHW 060210 PH6910
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Profile Miling
Cutting edge count (CEDC)
1
Inscribed circle diameter (IC)
6.5 mm
Insert shape code (SC)
X
Cutting edge effective length (LE)
6.2 mm
Corner radius (RE)
1 mm
Hand (HAND)
N
Grade (GRADE)
PH6910
Insert thickness (S)
2.38 mm
Fixing hole diameter (D1)
0.1142 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (90 - 260)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.2 - 1)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.2 - 1)
- P
VC (m/min) (150 - 250)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.2 - 1)
FZ (mm/t) (0.1 - 0.3)
AP (mm) (0.2 - 1)
