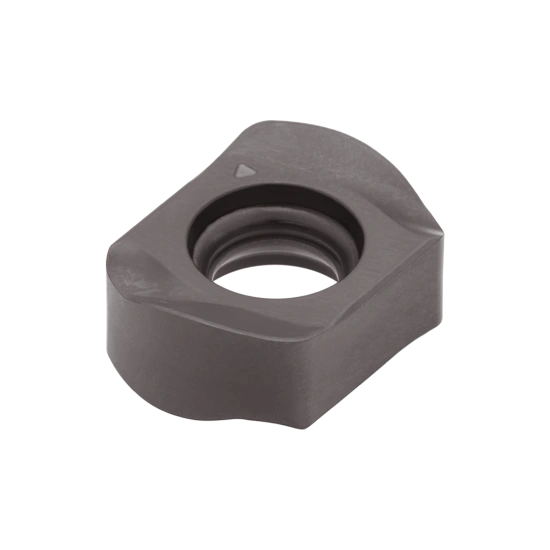

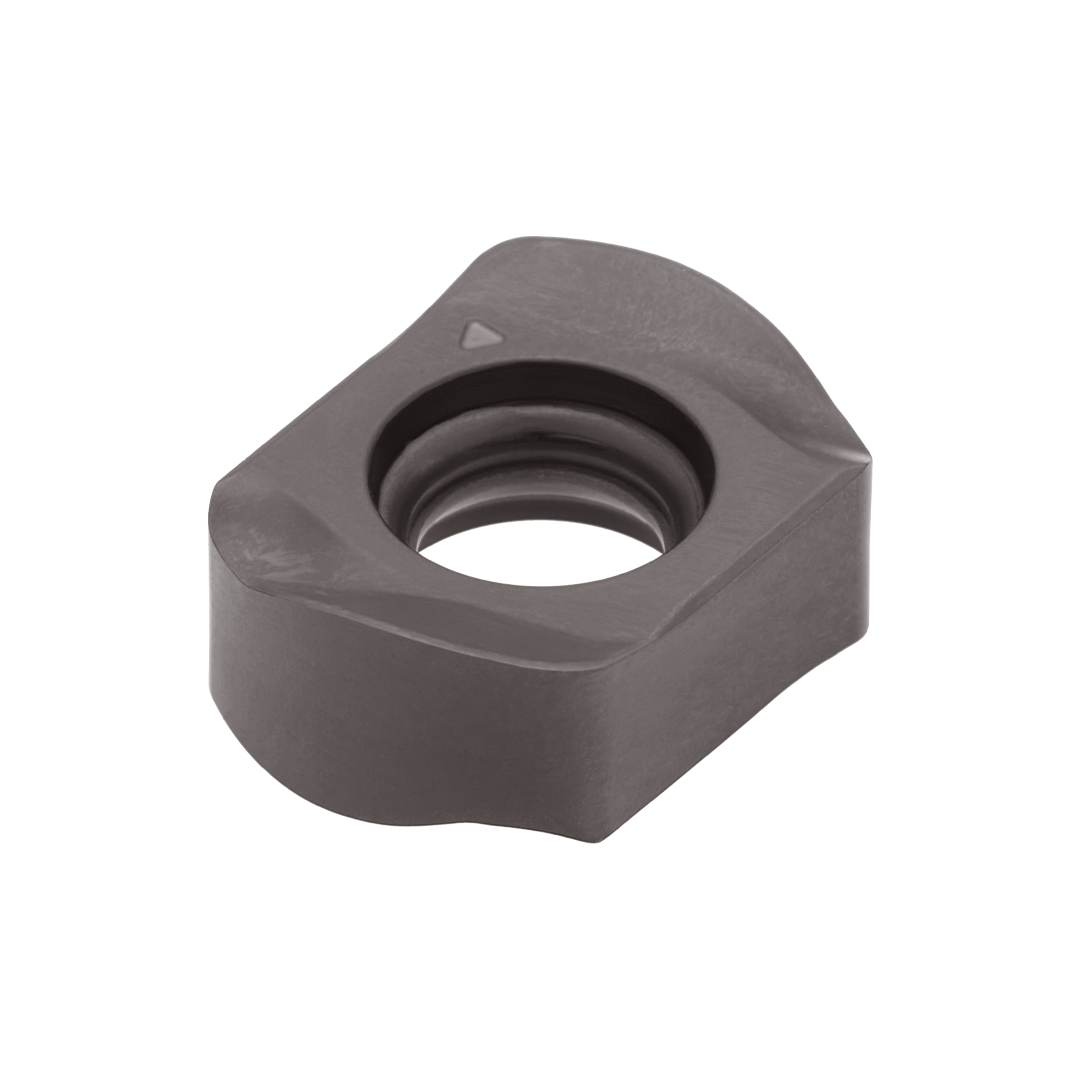

INSERT XNKU 120516-MP PHP910
1113071X5 | PAST. XNKU 120516-MP PHP910
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
High Feed Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
X

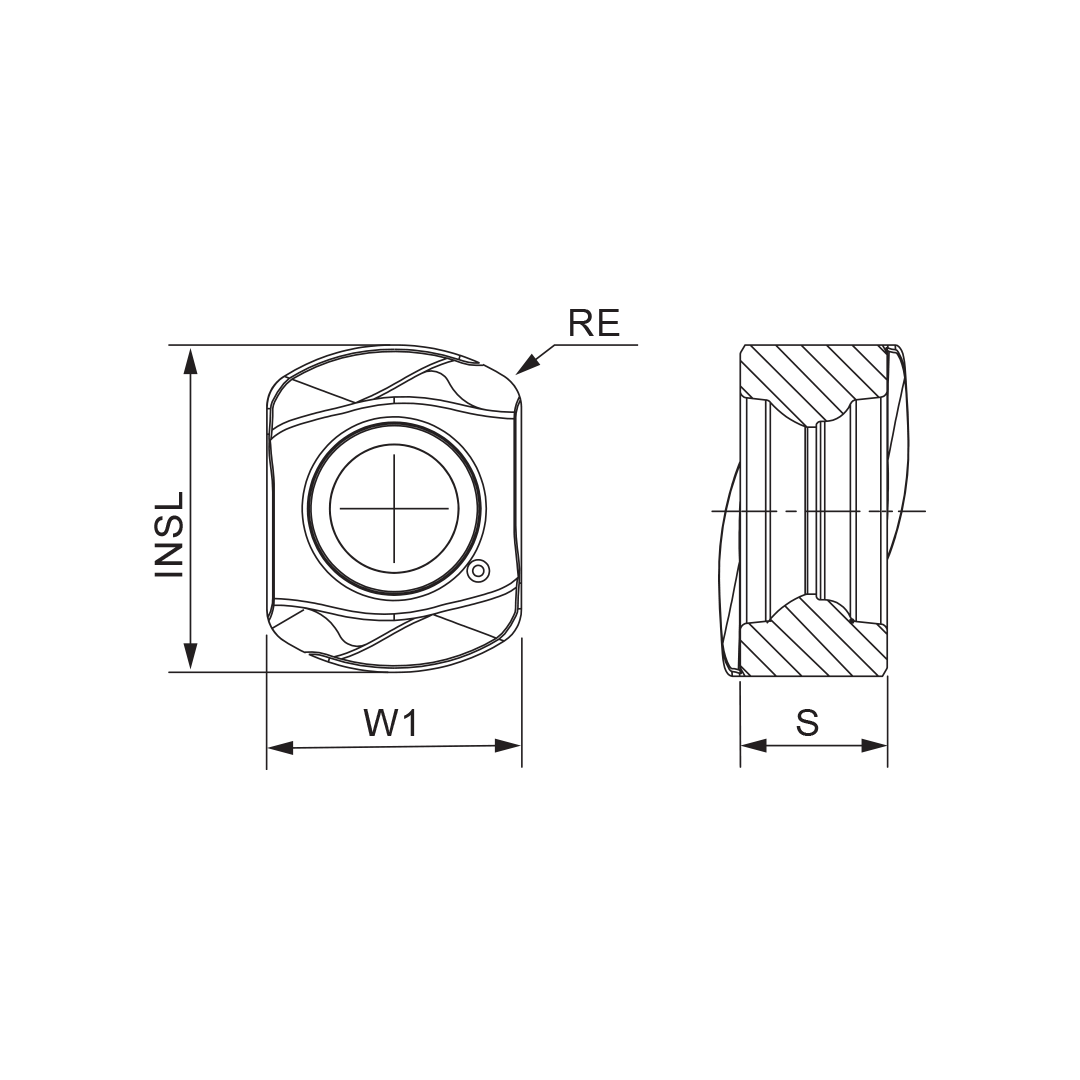

Corner radius (RE)
1.6 mm
Hand (HAND)
R
Grade (GRADE)
PHP910
Insert thickness (S)
5.9 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.2323 mm
Insert length (INSL)
15 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (150 - 300)
AP (mm) (0.4 - 1.5)
AP (mm) (0.4 - 1.5)
- P
VC (m/min) (140 - 250)
AP (mm) (0.4 - 1.5)
AP (mm) (0.4 - 1.5)
