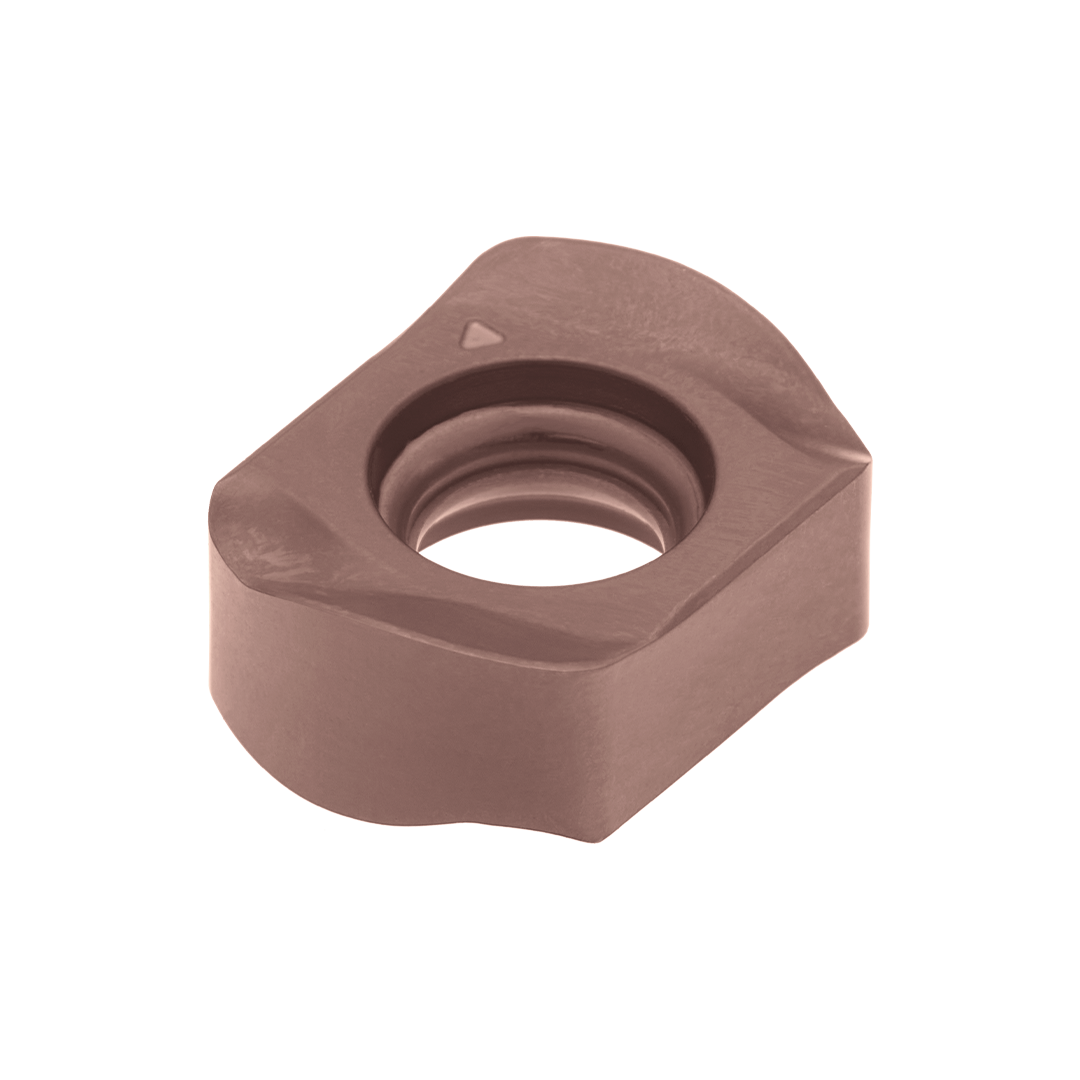

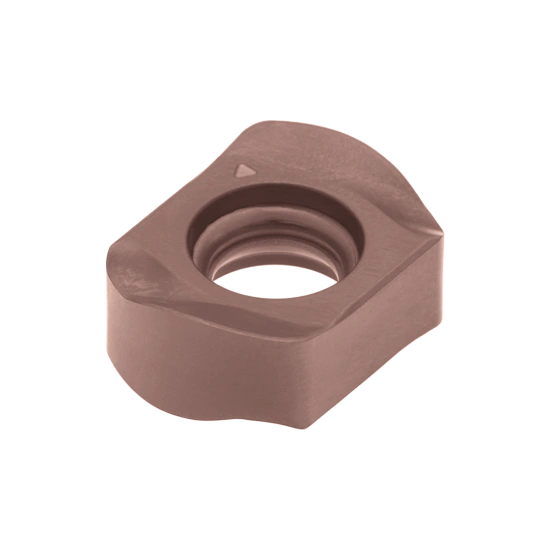

INSERT XNKU 120516-MP PHH930
1113071X9 | PAST. XNKU 120516-MP PHH930
Product data
Material classification level 1 (TMC1ISO)
- M
- S
Operation type (CTPT)
High Feed Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
X

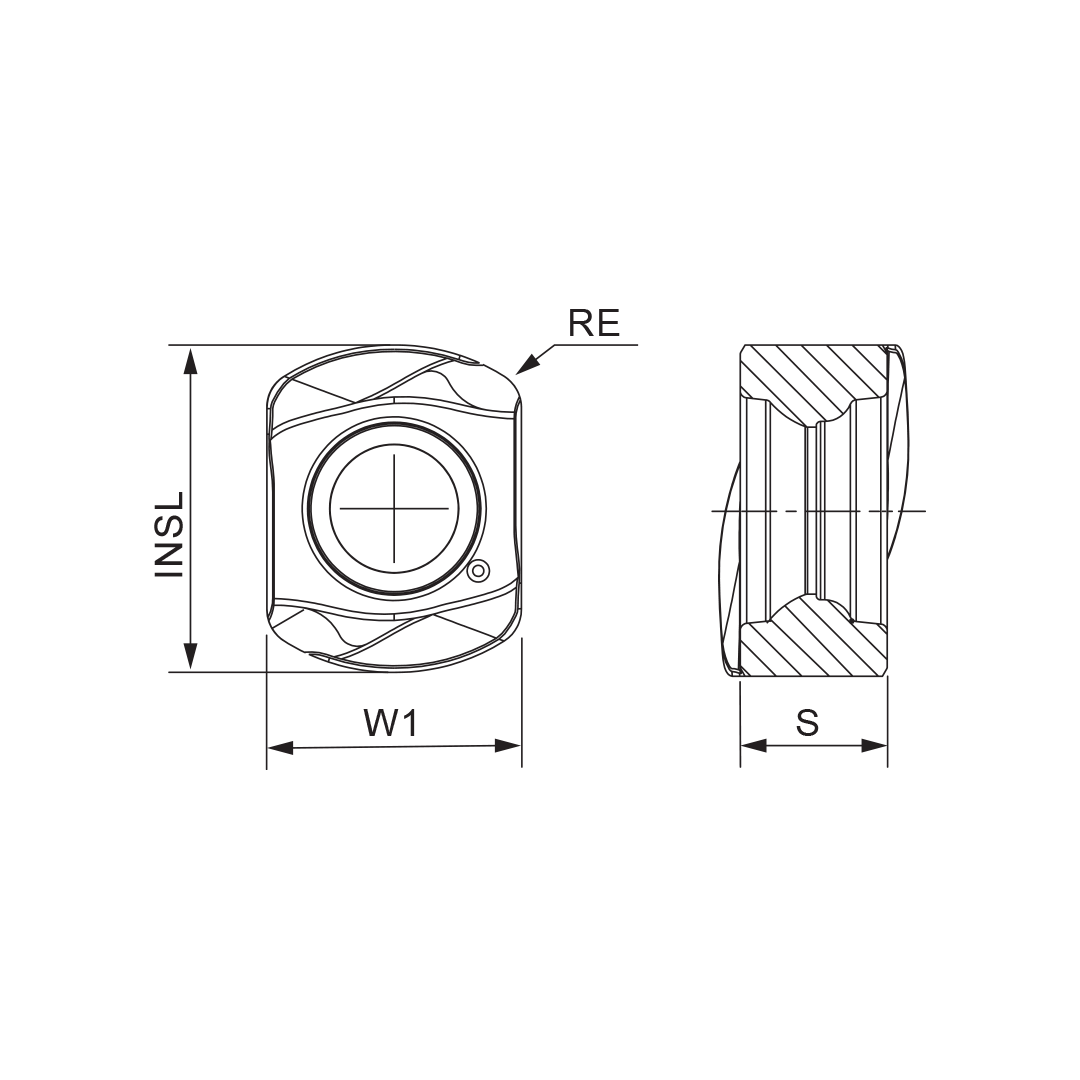

Corner radius (RE)
1.6 mm
Hand (HAND)
R
Grade (GRADE)
PHH930
Insert thickness (S)
5.9 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.2323 mm
Insert length (INSL)
15 mm
Tolerance class insert (TCINS)
K
Start values
- M
VC (m/min) (100 - 210)
AP (mm) (0.4 - 1.5)
AP (mm) (0.4 - 1.5)
- S
VC (m/min) (30 - 110)
AP (mm) (0.4 - 1.5)
AP (mm) (0.4 - 1.5)
