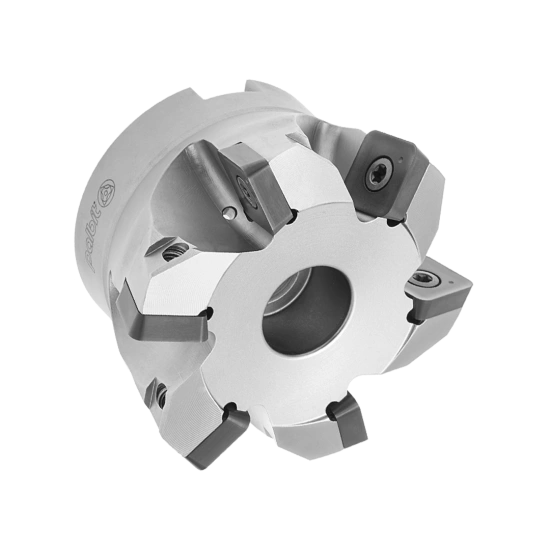

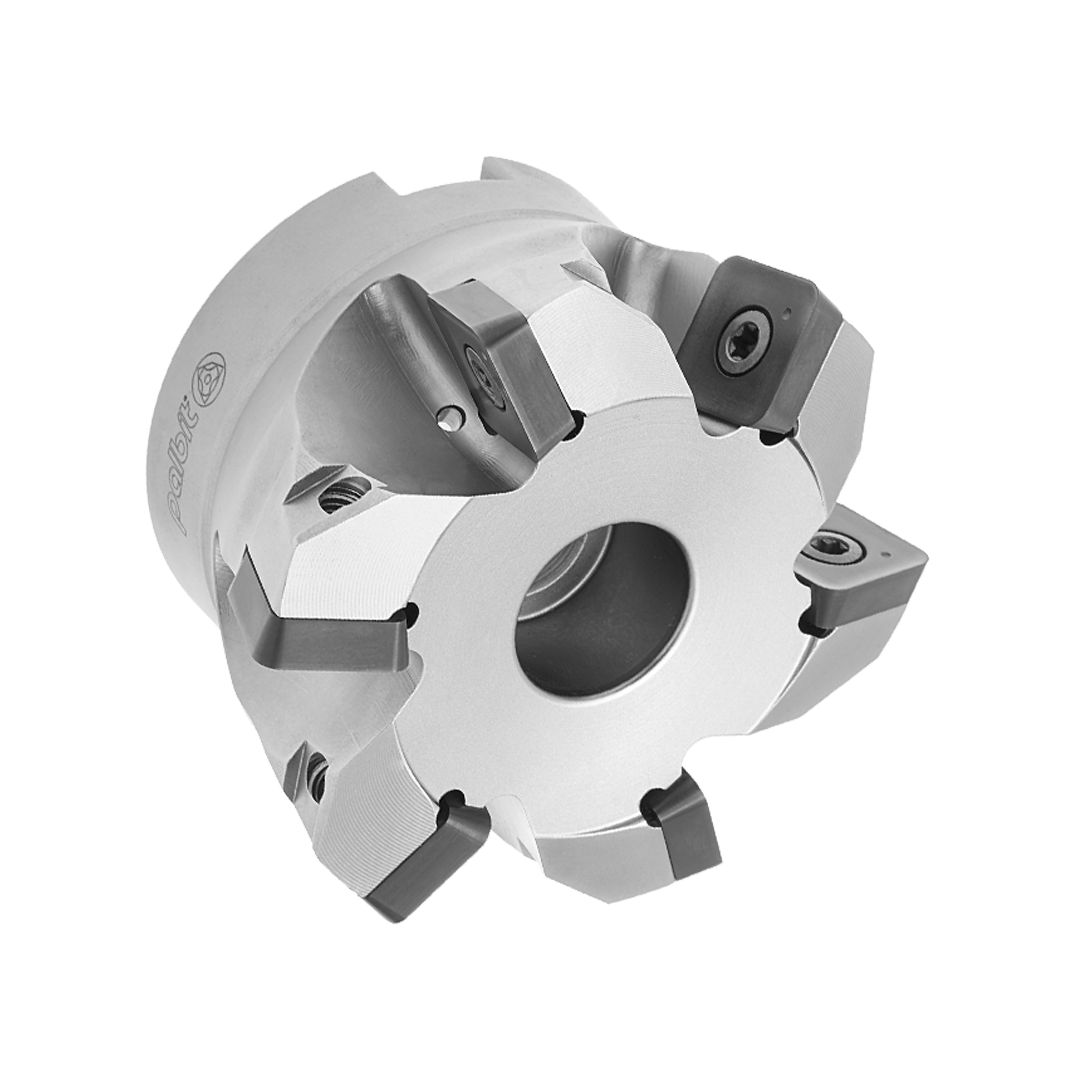

MILLING TOOL 125A06815-10-02-040063
181082200 | FRESA 125A06815-10-02-040063
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
3.5 mm
Axial rake angle (GAMP)
2
Connection diameter (DCONMS)
40 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
125 mm
Tool cutting edge angle (KAPR)
15
Functional length (LF)
63 mm
Radial rake angle (GAMF)
-5
Cutting item count (CICT)
10
Contact surface diameter machine side (DCSFMS)
90 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
5
Downloads
Spare parts
SCREW J0164110
Article code
119163100
Reference
J0164110
SCREW P0501302
Article code
290078900
Reference
P0501302
TORX KEY DT2050
Article code
290078400
Reference
DT2050
TORX KEY PT20
Article code
290014900
Reference
PT20
