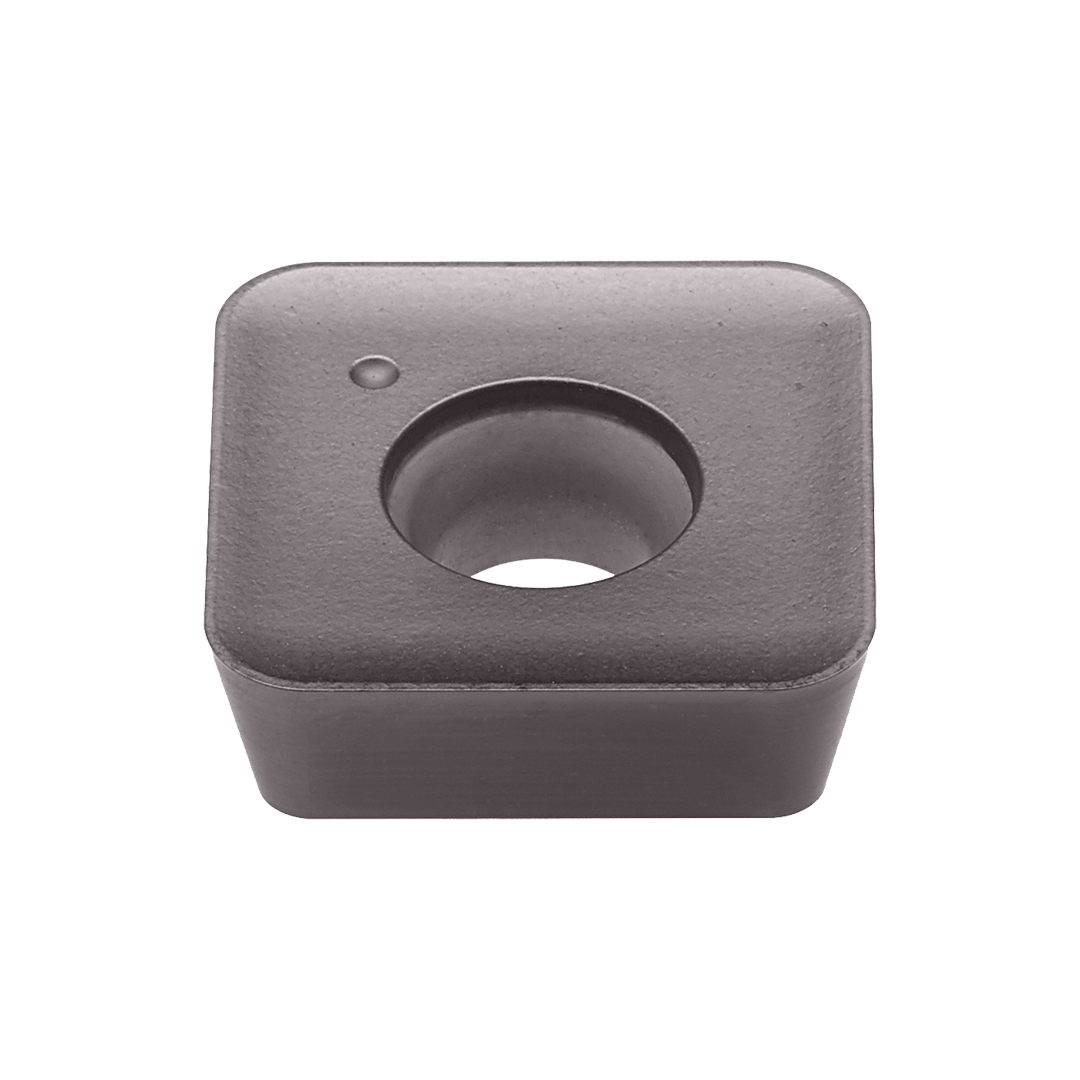

INSERT SOET 160520-MS PH7740
1112221G6 | PAST. SOET 160520-MS PH7740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
High Feed Milling
Cutting edge count (CEDC)
4

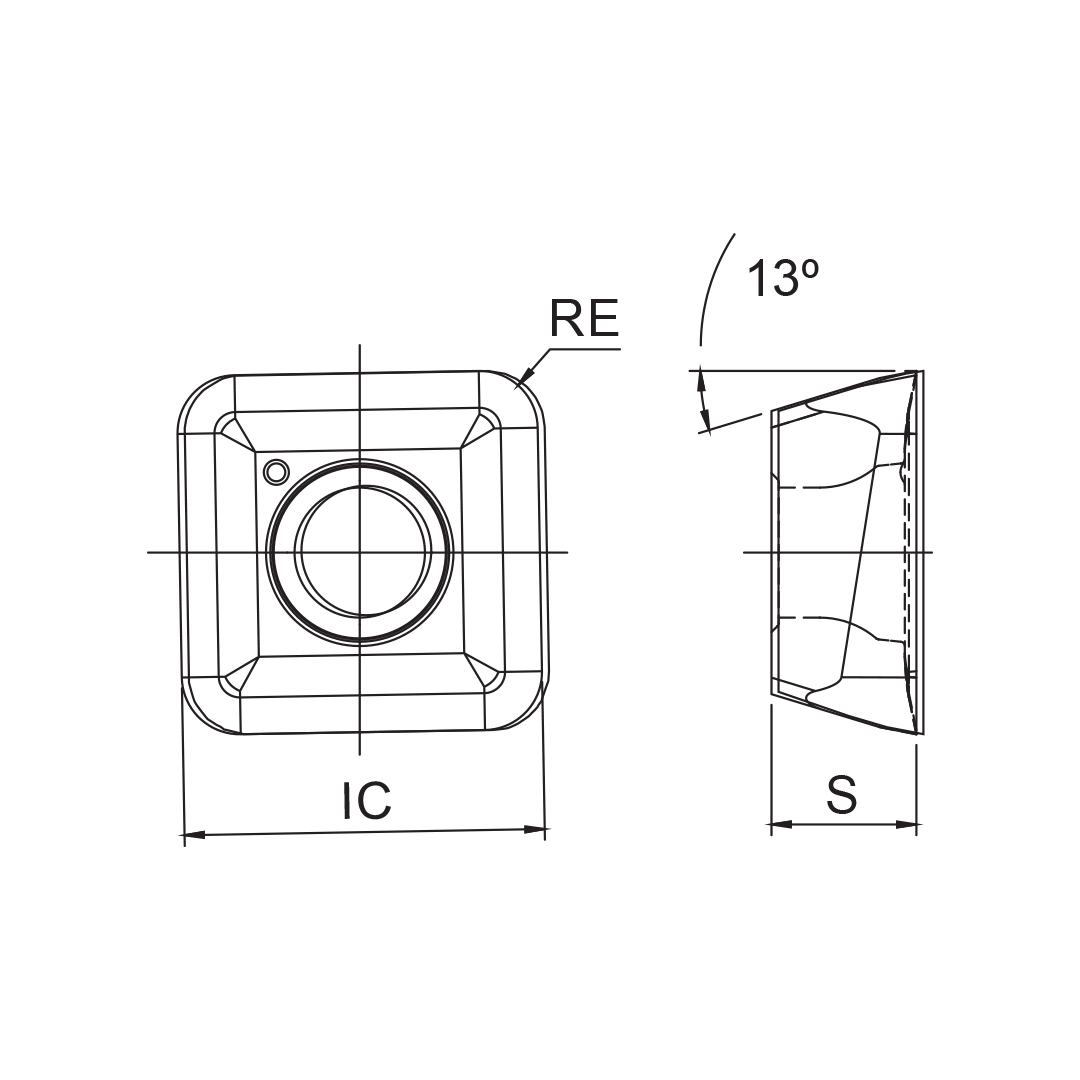

Inscribed circle diameter (IC)
16.4 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
0 mm
Corner radius (RE)
2 mm
Hand (HAND)
R
Grade (GRADE)
PH7740
Insert thickness (S)
5.26 mm
Chip breaker manufacturer's designation (CBMD)
MS
Fixing hole diameter (D1)
5.5 mm
Insert length (INSL)
0 mm
Tolerance class insert (TCINS)
E
Start values
- M
VC (m/min) (90 - 180)
FZ (mm/t) (0.4 - 2.2)
AP (mm) (1.2 - 3.5)
FZ (mm/t) (0.4 - 2.2)
AP (mm) (1.2 - 3.5)
- P
VC (m/min) (100 - 200)
FZ (mm/t) (0.4 - 2.2)
AP (mm) (1.2 - 3.5)
FZ (mm/t) (0.4 - 2.2)
AP (mm) (1.2 - 3.5)
- S
VC (m/min) (30 - 70)
FZ (mm/t) (0.4 - 2.2)
AP (mm) (1.2 - 3.5)
FZ (mm/t) (0.4 - 2.2)
AP (mm) (1.2 - 3.5)
