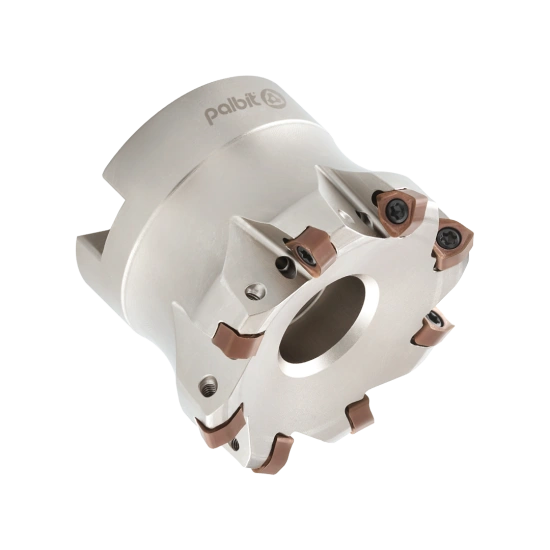

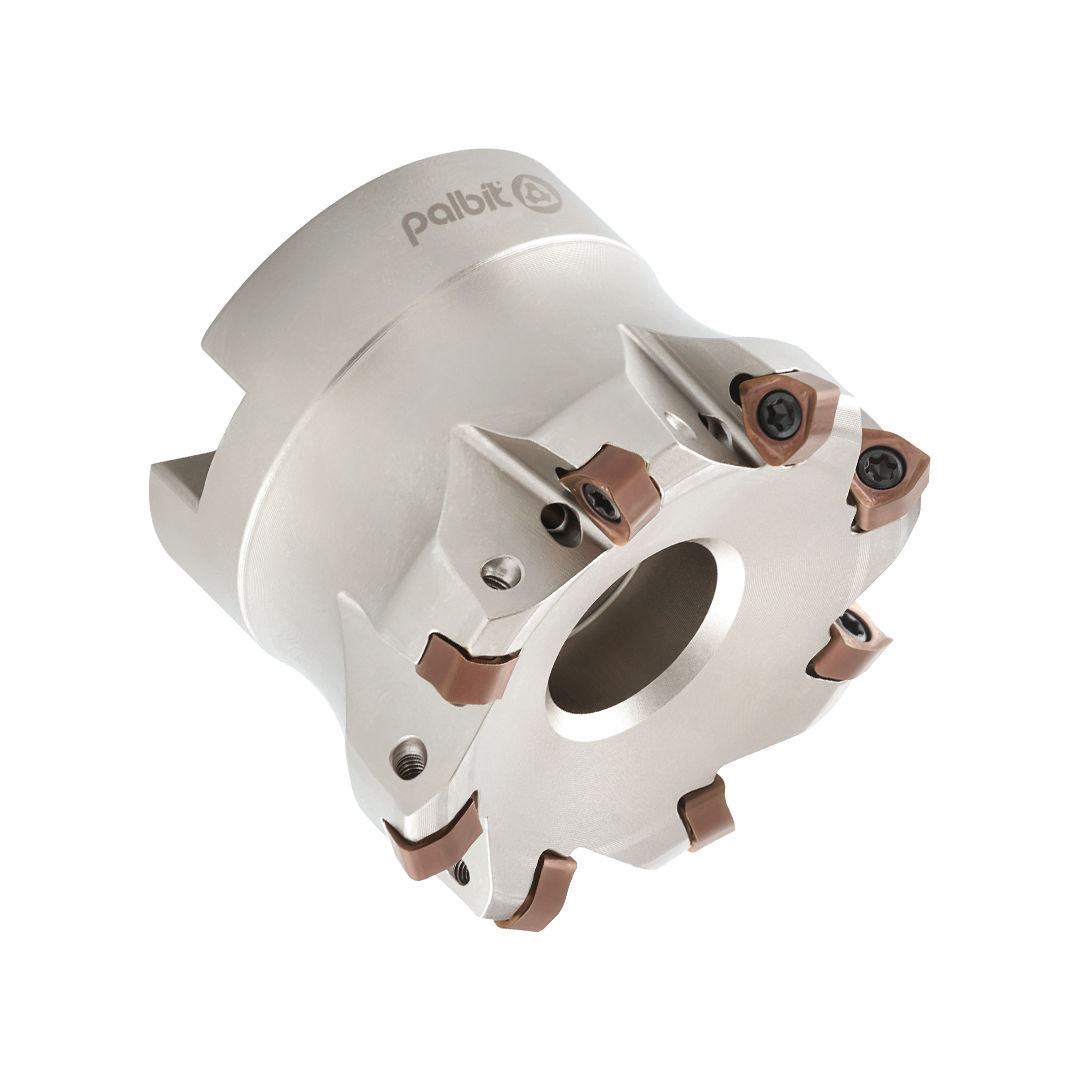

MILLING TOOL 040A13118-06-09-016040

181223900 | FRESA 040A13118-06-09-016040

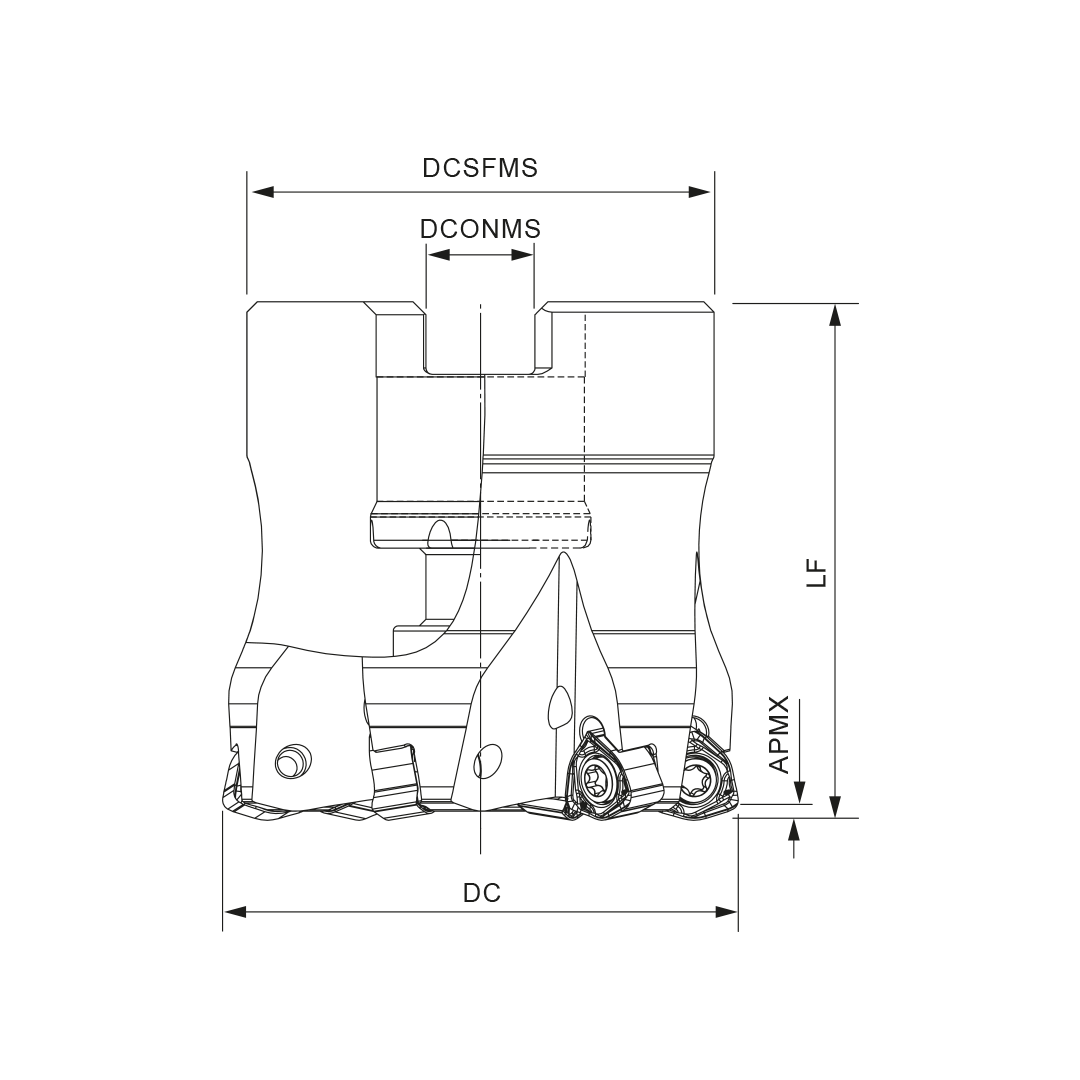

Product data

Depth of cut maximum (APMX)

1 mm

Axial rake angle (GAMP)

-9

Connection diameter (DCONMS)

16 mm

Adaptive interface machine direction (ADINTMS)

Arbor Mounting

Cutting diameter (DC)

40 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

40 mm

Radial rake angle (GAMF)

-14

Cutting item count (CICT)

Contact surface diameter machine side (DCSFMS)

36 mm

Torque (TQ)

1.2

Article code

290031300

Reference

P0250704

Article code

290011700

Reference

XT08
