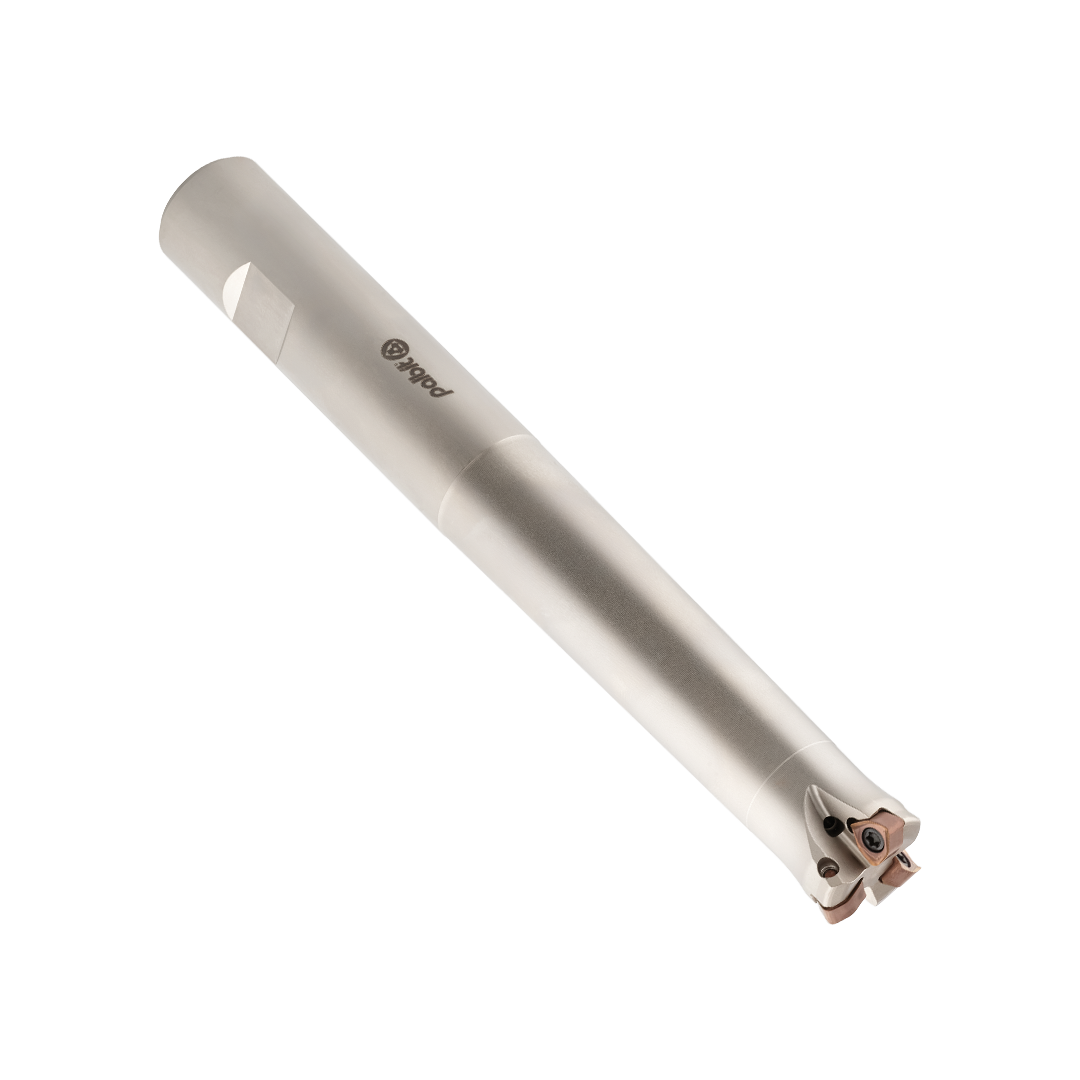

MILLING TOOL 025W13118-04-09-025180

181224800 | FRESA 025W13118-04-09-025180

Product data

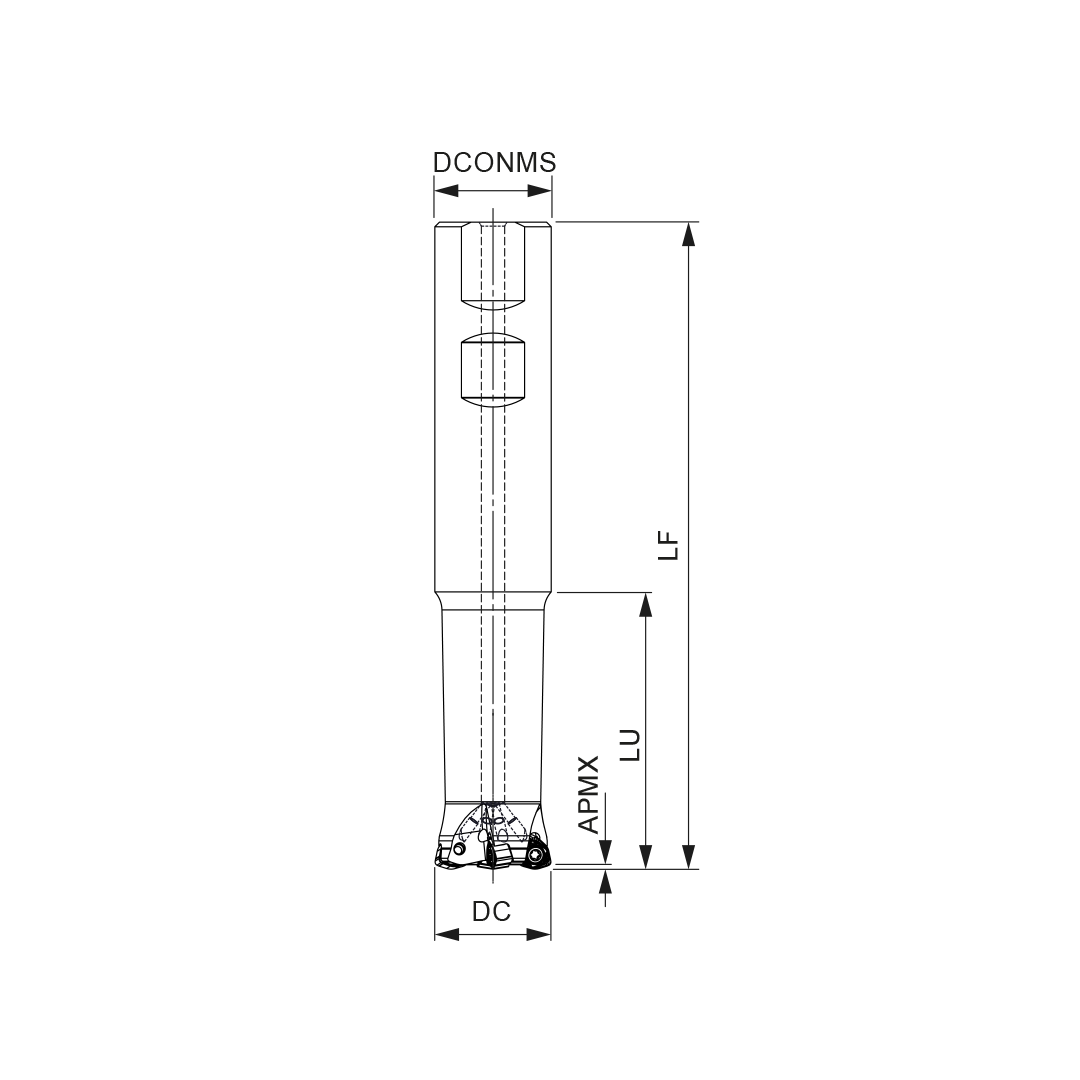

Depth of cut maximum (APMX)

1 mm

Axial rake angle (GAMP)

-9

Connection diameter (DCONMS)

25 mm

Adaptive interface machine direction (ADINTMS)

Weldon Shank

Cutting diameter (DC)

25 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

180 mm

Usable length (LU)

100 mm

Radial rake angle (GAMF)

-14

Cutting item count (CICT)

Torque (TQ)

1.2

Article code

290031300

Reference

P0250704

Article code

290011700

Reference

XT08
