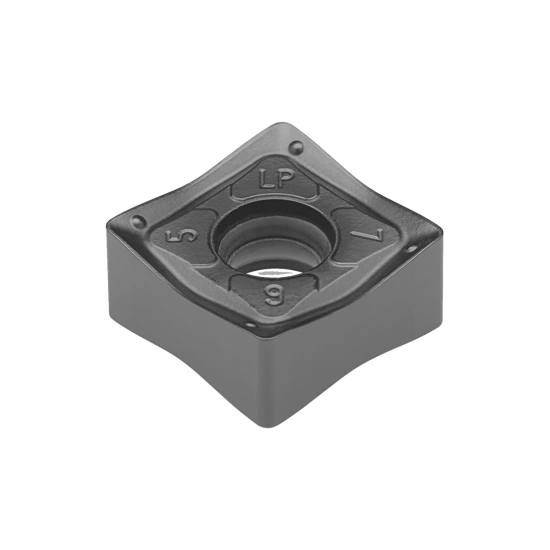

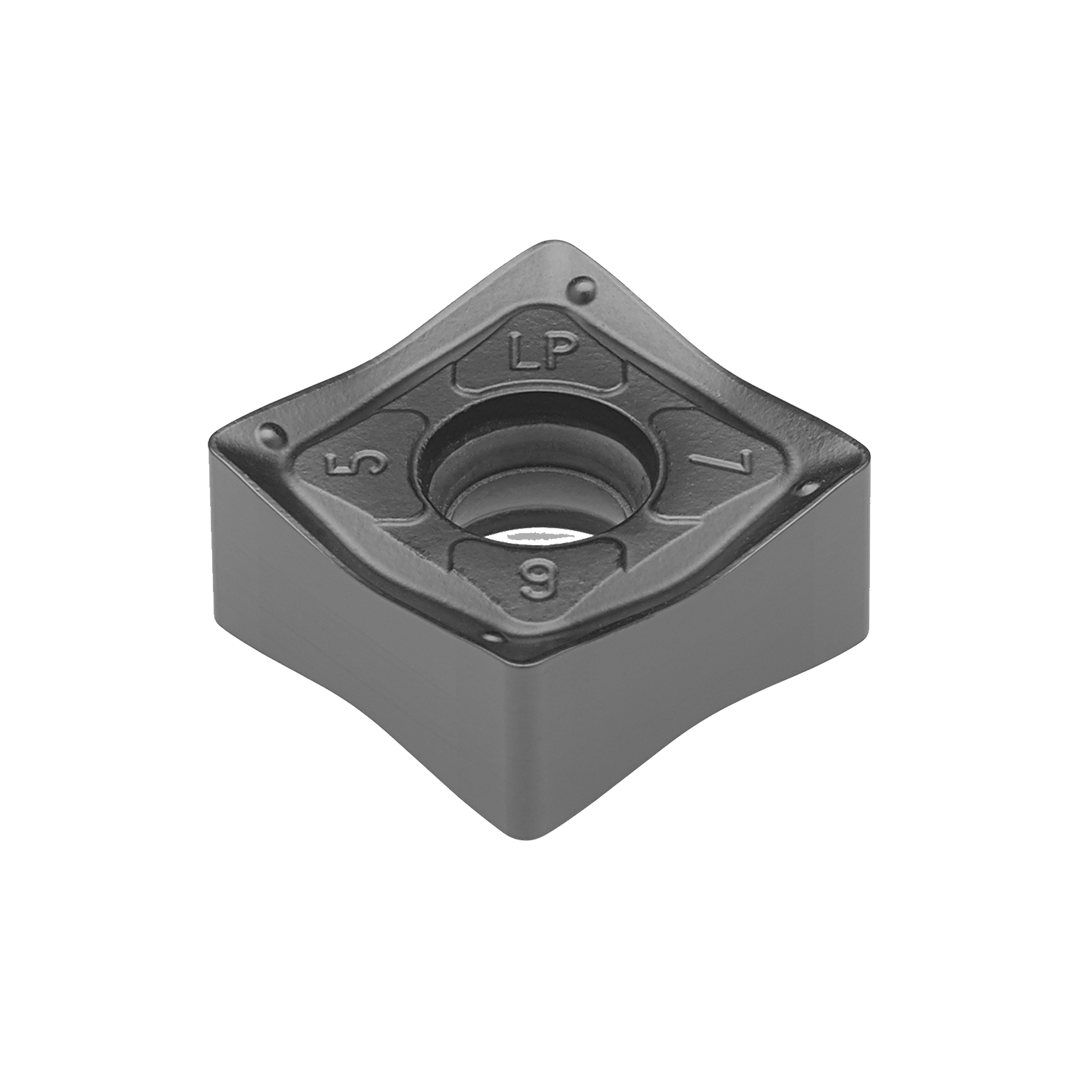

INSERT SNHU 120608 ZNER-LP PH5705
1112020L5 | PAST. SNHU 120608 ZNER-LP PH5705
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8

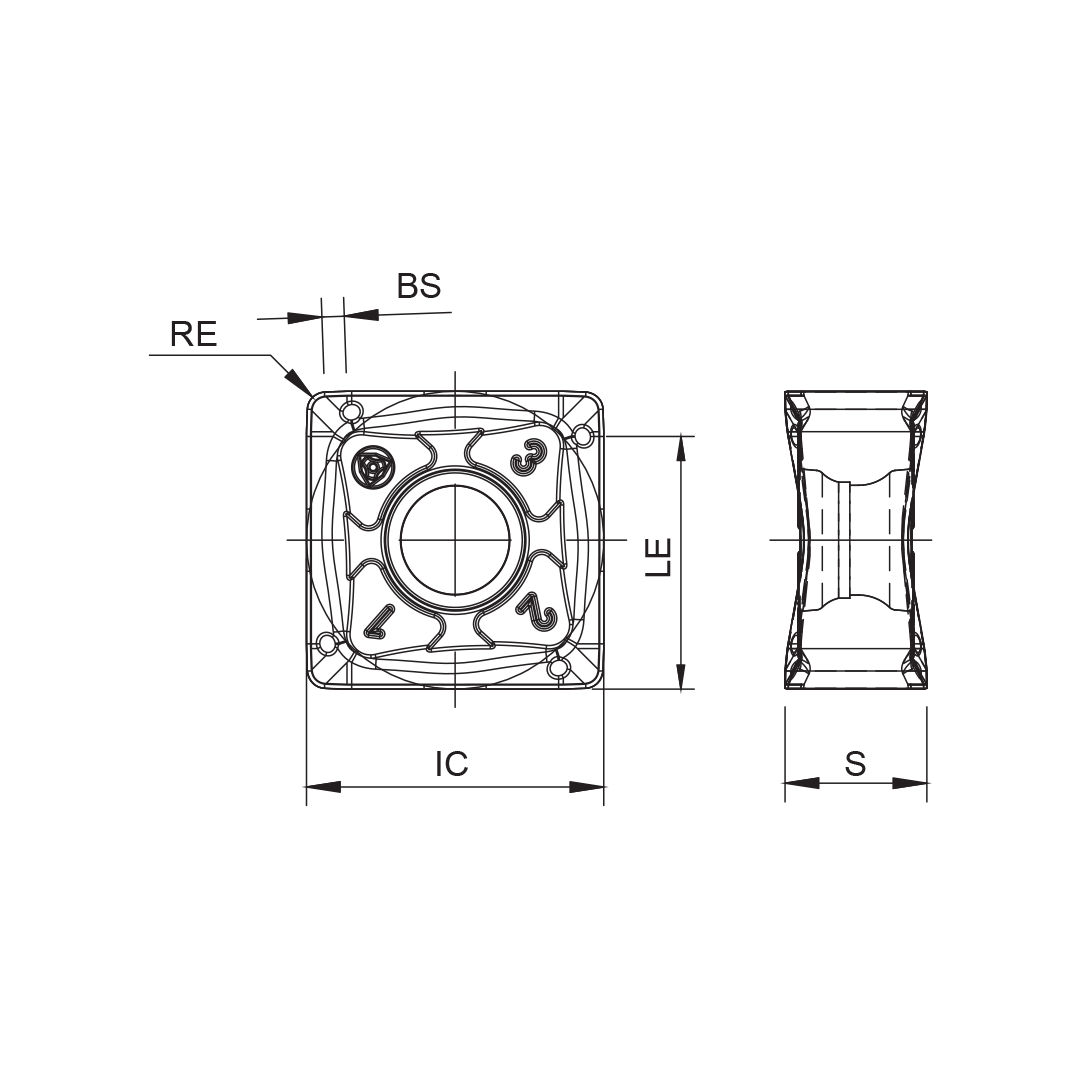

Inscribed circle diameter (IC)
13.3 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
11.6 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH5705
Insert thickness (S)
6.35 mm
Wiper edge length (BS)
1 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.1929 mm
Tolerance class insert (TCINS)
H
Start values
- K
