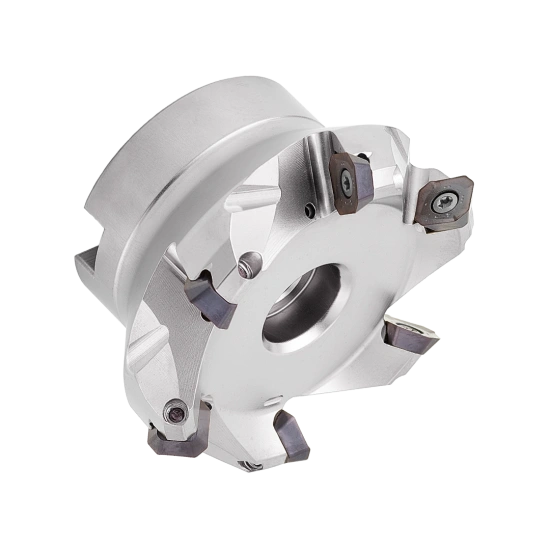

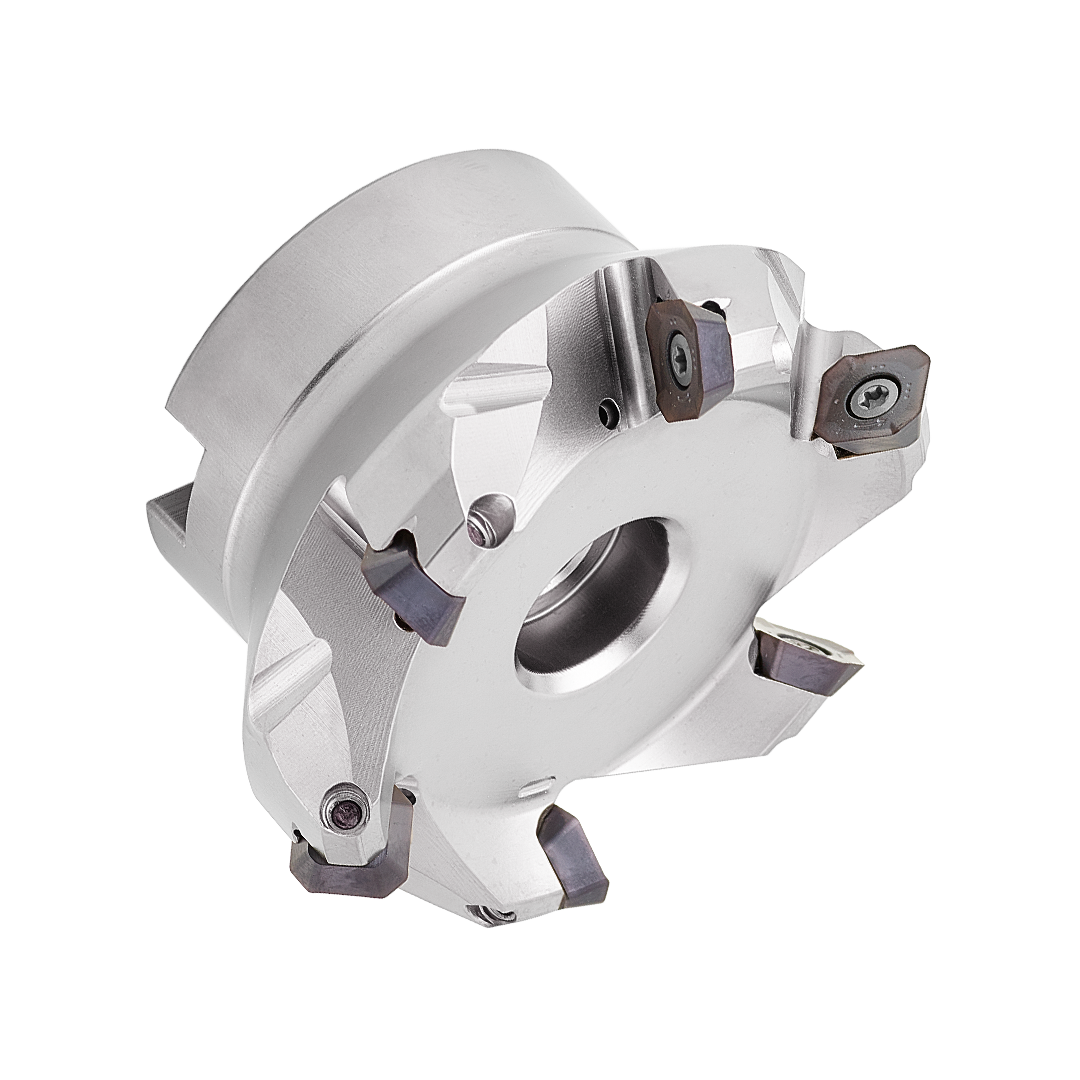

MILLING TOOL 040A57045-04-18-016040
181164100 | FRESA 040A57045-04-18-016040

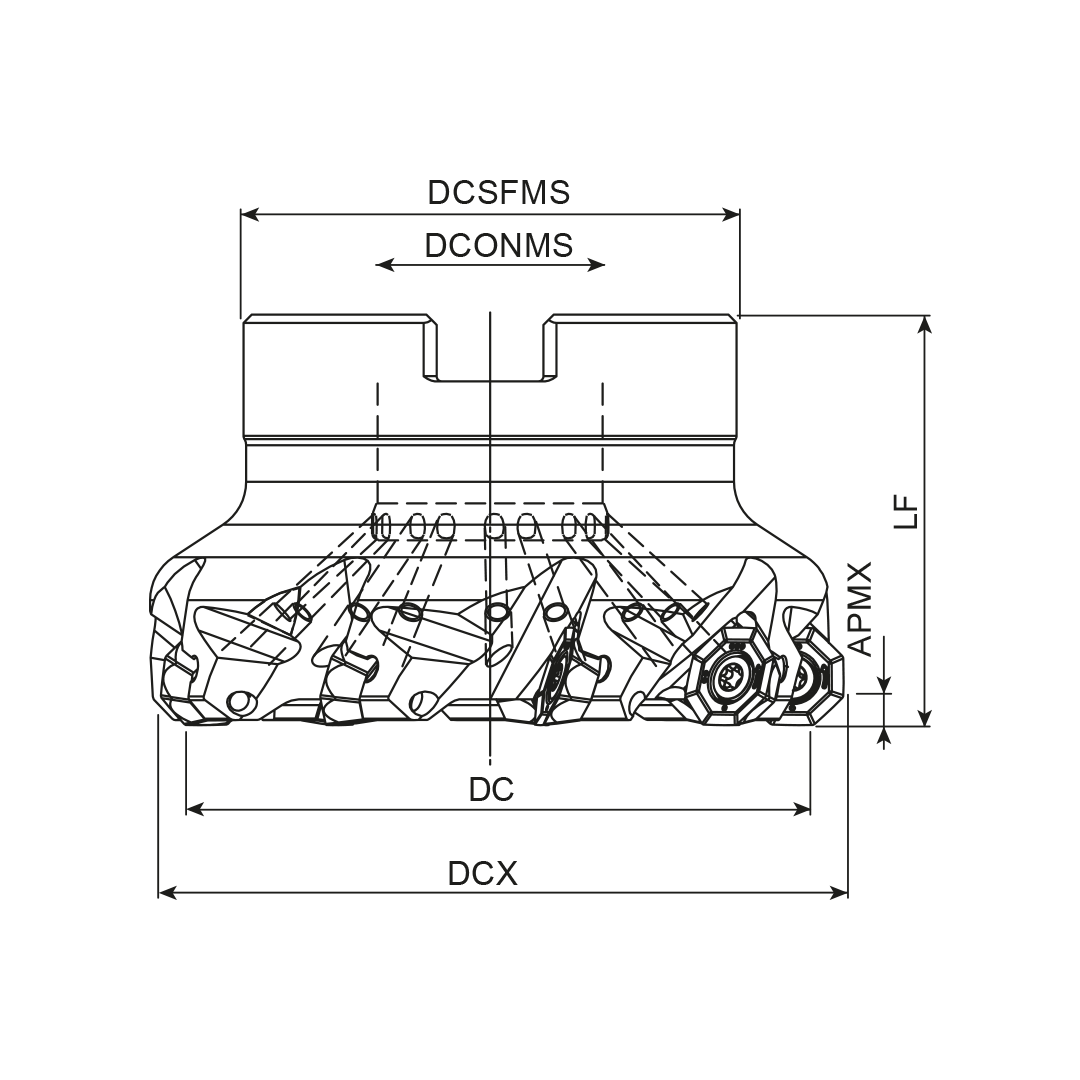

Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
3 mm
Axial rake angle (GAMP)
18
Connection diameter (DCONMS)
16 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
40 mm
Maximum cutting diameter (DCX)
45.8 mm
Cutting diameter 2 (DC2)
38.4 mm
Maximum cutting diameter 2 (DCX2)
47.7 mm
Tool cutting edge angle (KAPR)
45
Functional length (LF)
40.7 mm
Radial rake angle (GAMF)
-2.5
Cutting item count (CICT)
4
Contact surface diameter machine side (DCSFMS)
38 mm
Torque (TQ)
1.4
Spare parts
SCREW P0300800
Article code
290009100
Reference
P0300800
TORX KEY DT0914
Article code
290059900
Reference
DT0914
TORX KEY XT09
Article code
290025700
Reference
XT09
