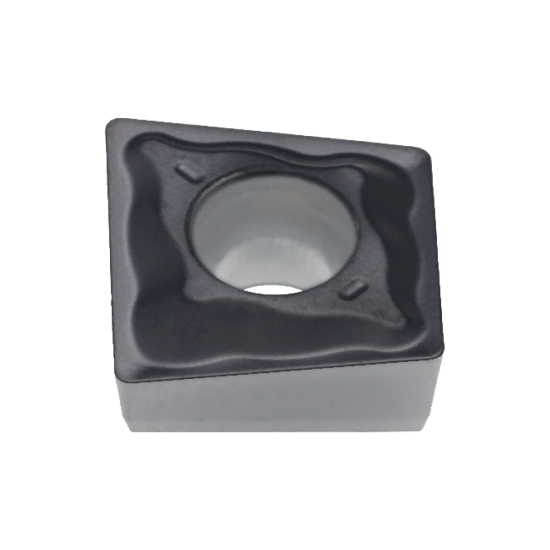

INSERT XCMT 080304-MP EN PHS225
1124785U5 | PAST. XCMT 080304-MP EN PHS225
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- S
Operation type (CTPT)
Drilling, External Turning, Internal Turning
Cutting edge count (CEDC)
2
Inscribed circle diameter (IC)
8.4 mm
Insert shape code (SC)
X
Corner radius (RE)
0.4 mm
Hand (HAND)
N
Grade (GRADE)
PHS225
Insert thickness (S)
3.26 mm
Insert length (INSL)
8 mm
Tolerance class insert (TCINS)
M
Start values
- M
VC (m/min) (110 - 240)
FN (mm/r) (0.03 - 0.2)
AP (mm) (0.9 - 4.2)
FN (mm/r) (0.03 - 0.2)
AP (mm) (0.9 - 4.2)
