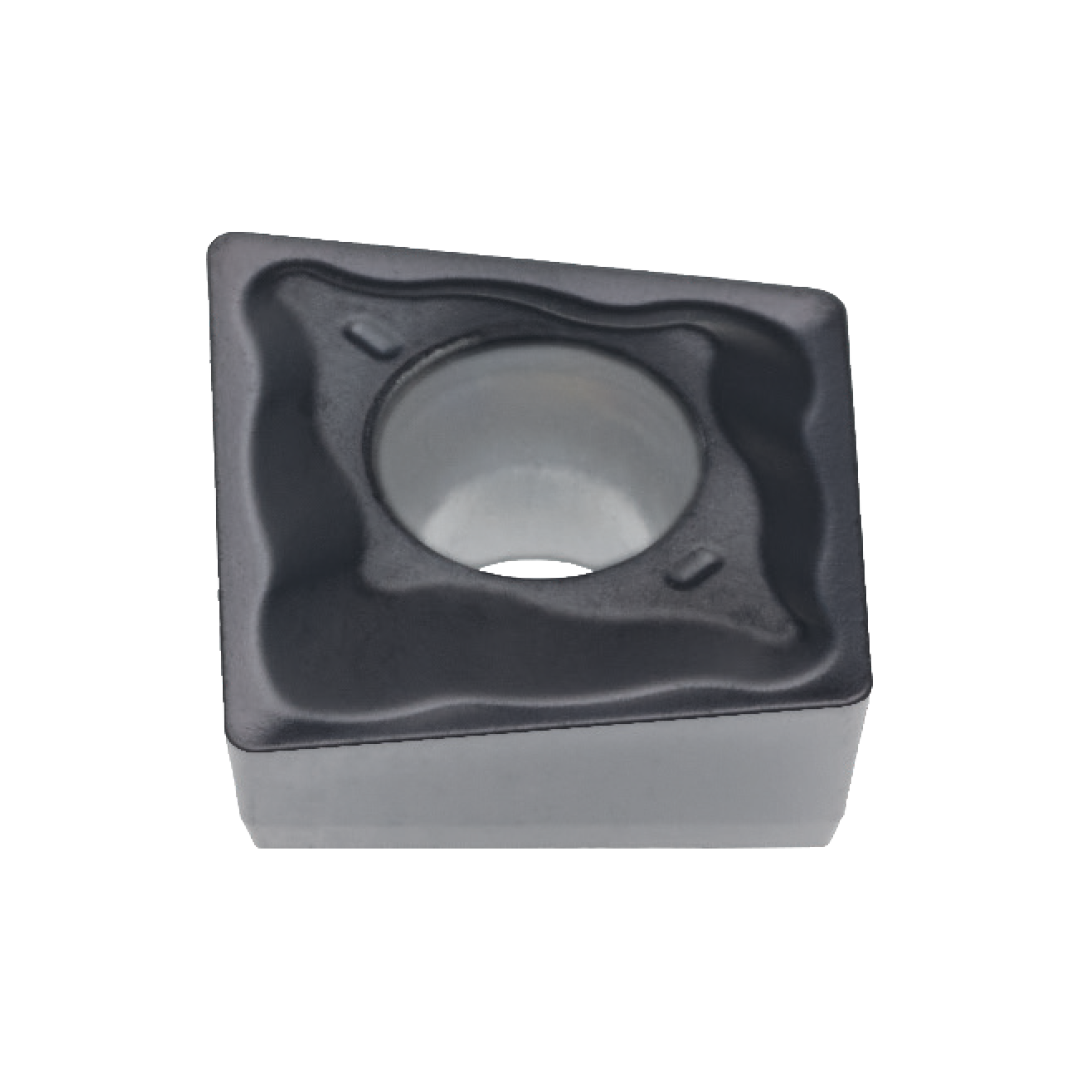

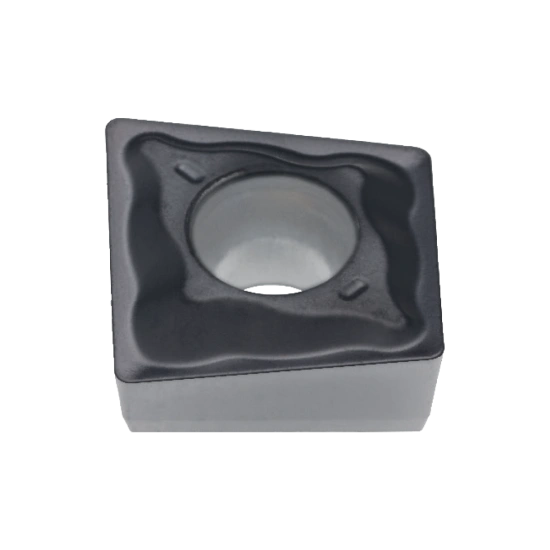

INSERT XCMT 070304-MP EN PHS225
1124784U5 | PAST. XCMT 070304-MP EN PHS225
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- S
Operation type (CTPT)
Drilling, External Turning, Internal Turning
Cutting edge count (CEDC)
2
Inscribed circle diameter (IC)
7.5 mm
Insert shape code (SC)
X
Corner radius (RE)
0.4 mm
Hand (HAND)
N
Grade (GRADE)
PHS225
Insert thickness (S)
3.25 mm
Insert length (INSL)
7 mm
Tolerance class insert (TCINS)
M
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- M
VC (m/min) (110 - 240)
FN (mm/r) (0.02 - 0.18)
AP (mm) (0.8 - 4)
FN (mm/r) (0.02 - 0.18)
AP (mm) (0.8 - 4)
