INSERT XCMT 040104-MP EL PH7920
1124791G4 | PAST. XCMT 040104-MP EL PH7920
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- S
Operation type (CTPT)
Drilling, External Turning, Internal Turning
Cutting edge count (CEDC)
2

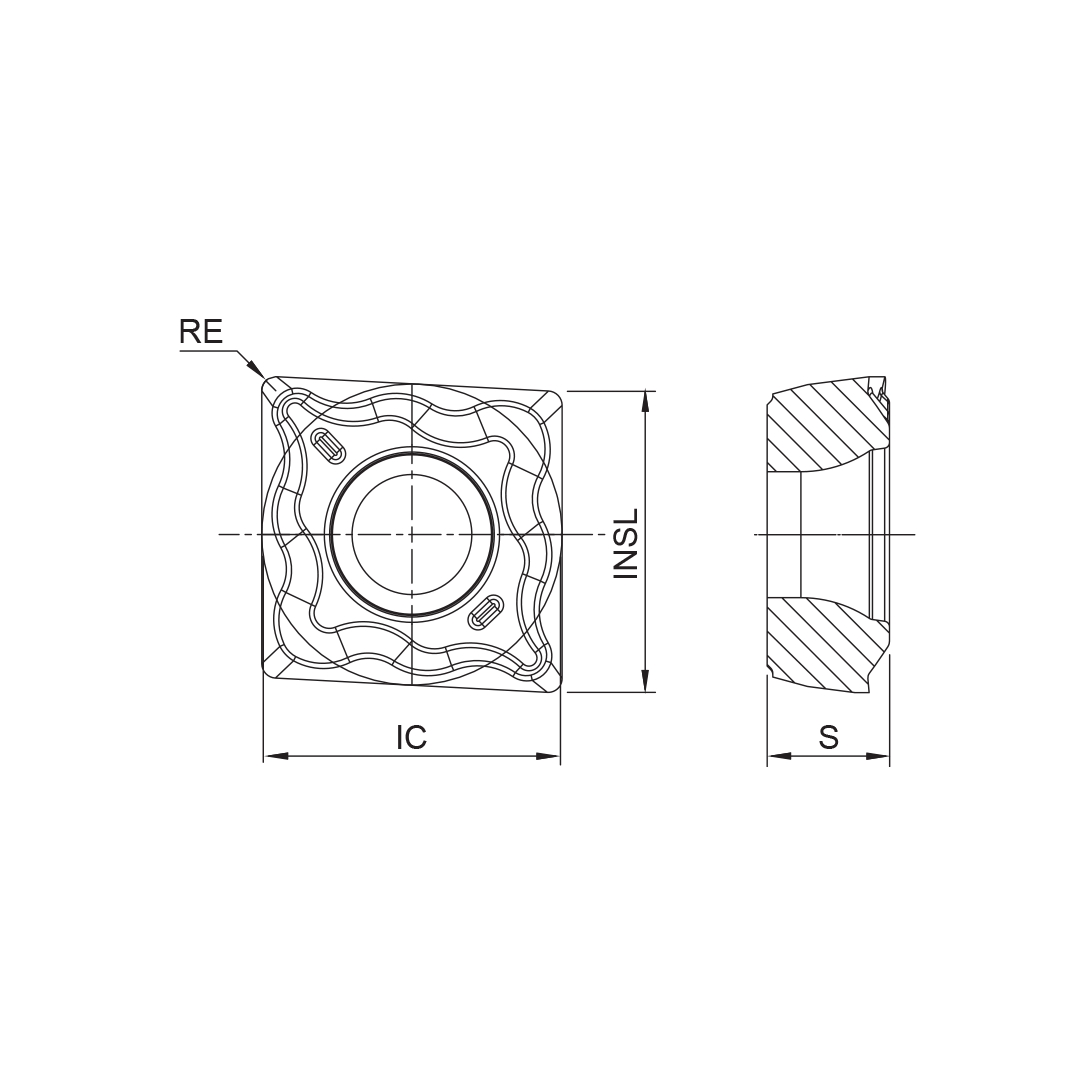

Inscribed circle diameter (IC)
4.4 mm
Insert shape code (SC)
X
Corner radius (RE)
0.4 mm
Hand (HAND)
L
Grade (GRADE)
PH7920
Insert thickness (S)
1.89 mm
Insert length (INSL)
4 mm
Tolerance class insert (TCINS)
M
Start values
- M
VC (m/min) (90 - 220)
FN (mm/r) (0.02 - 0.13)
AP (mm) (0.5 - 2.7)
FN (mm/r) (0.02 - 0.13)
AP (mm) (0.5 - 2.7)
- P
VC (m/min) (85 - 220)
FN (mm/r) (0.02 - 0.13)
AP (mm) (0.5 - 2.7)
FN (mm/r) (0.02 - 0.13)
AP (mm) (0.5 - 2.7)
- S
VC (m/min) (20 - 150)
FN (mm/r) (0.02 - 0.13)
AP (mm) (0.5 - 2.7)
FN (mm/r) (0.02 - 0.13)
AP (mm) (0.5 - 2.7)
