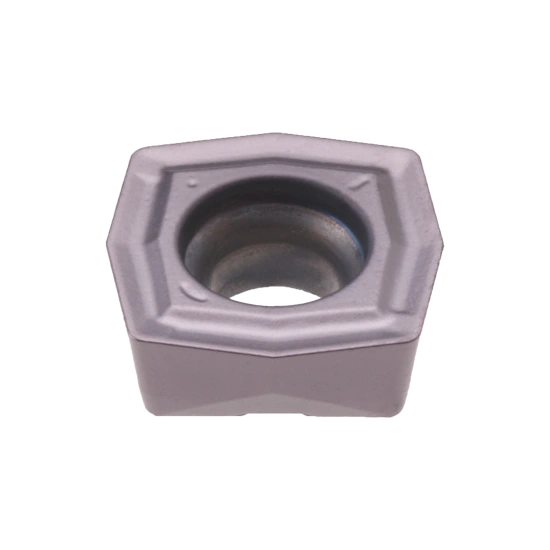

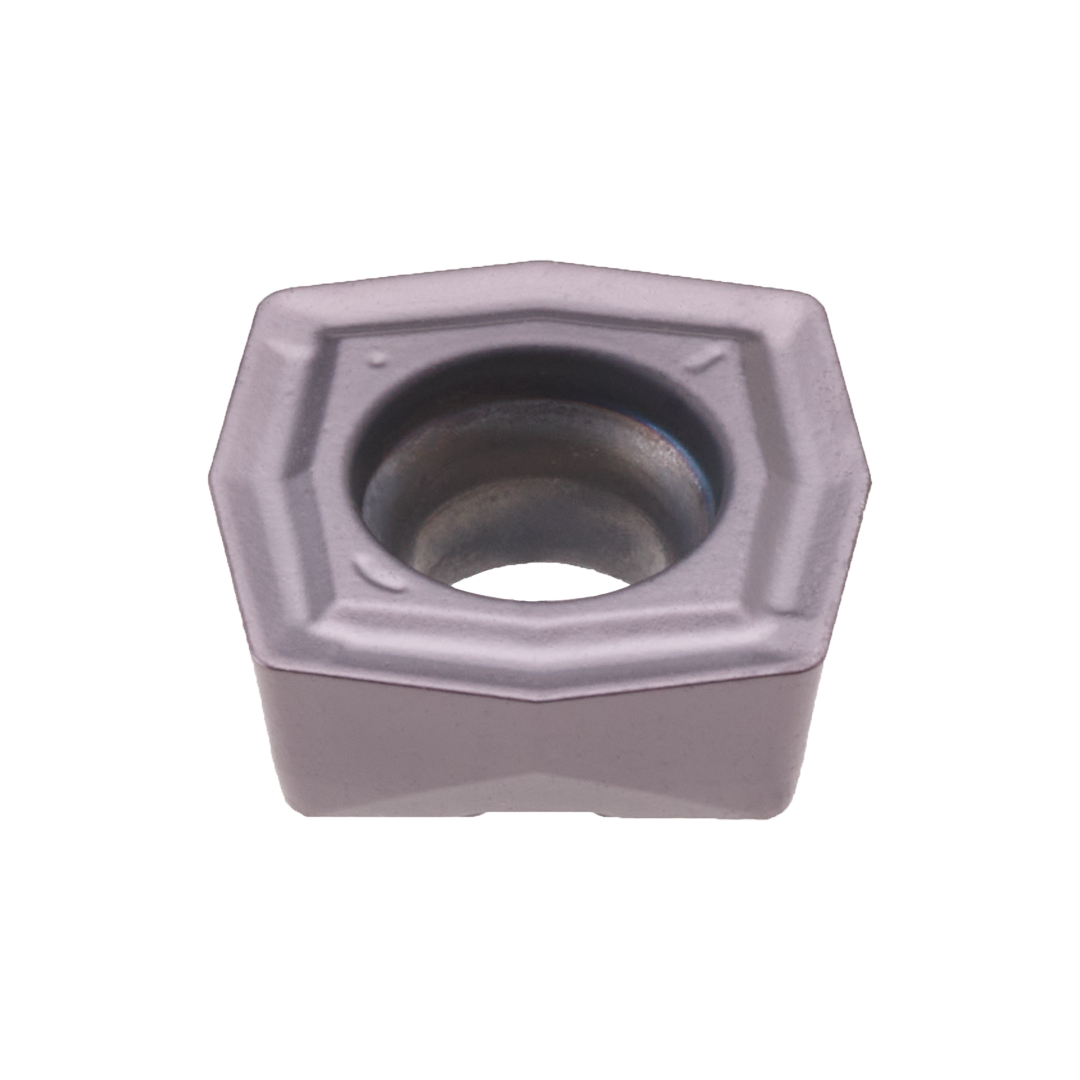

INSERT XOKX 180508-MP PHP930
1142159P4 | PAST. XOKX 180508-MP PHP930
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4
Inscribed circle diameter (IC)
18.2 mm
Insert shape code (SC)
X
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PHP930
Insert thickness (S)
5.3 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
5.6 mm
Tolerance class insert (TCINS)
K
