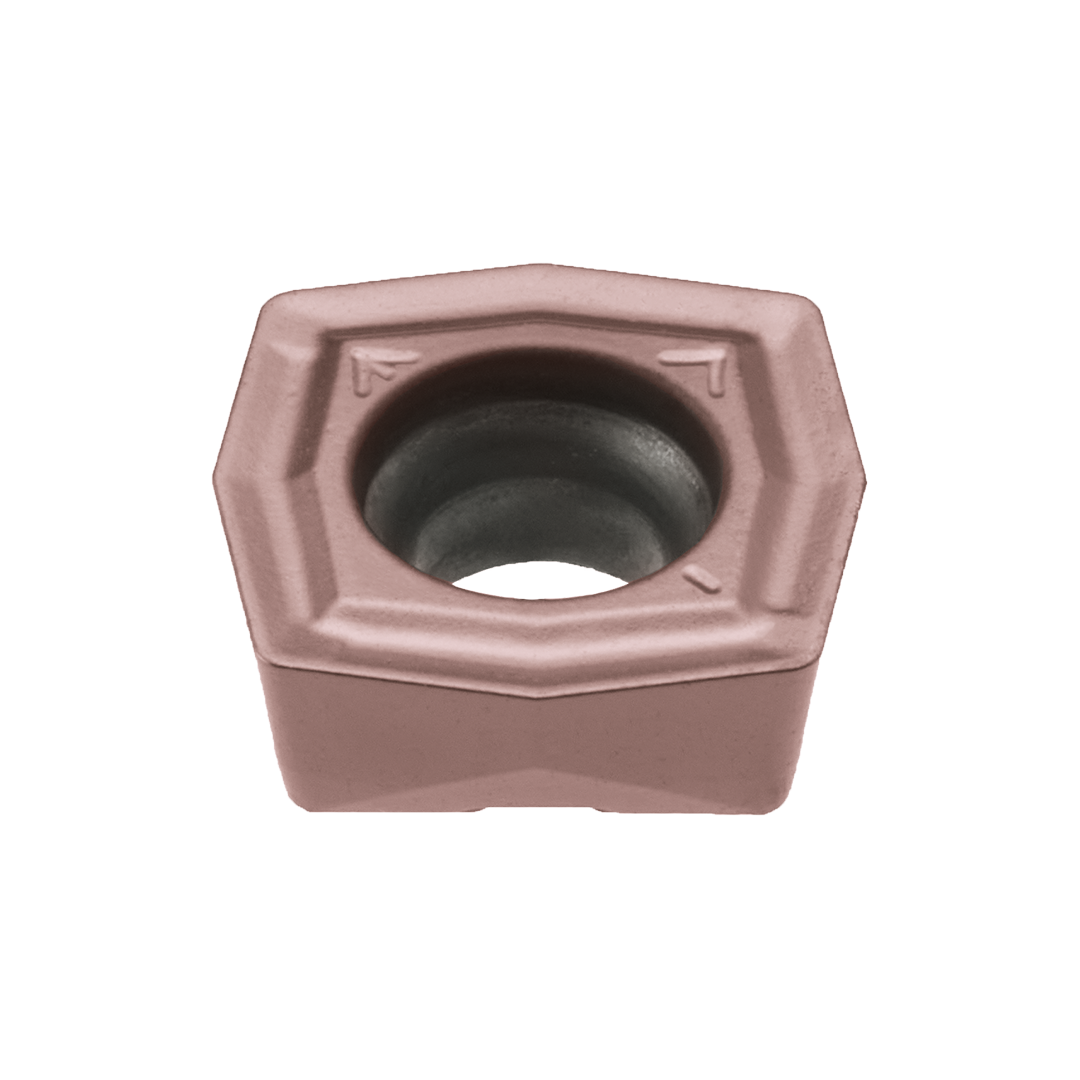

INSERT XOKX 090305-MS PHH930
1142132X9 | PAST. XOKX 090305-MS PHH930
Product data
Material classification level 1 (TMC1ISO)
- M
- S
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4
Inscribed circle diameter (IC)
9.6 mm
Insert shape code (SC)
X
Corner radius (RE)
0.5 mm
Hand (HAND)
R
Grade (GRADE)
PHH930
Insert thickness (S)
3.5 mm
Chip breaker manufacturer's designation (CBMD)
MS
Fixing hole diameter (D1)
3.5 mm
Tolerance class insert (TCINS)
K
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- M
VC (m/min) (40 - 160)
FZ (mm/t) (0.04 - 0.14)
FZ (mm/t) (0.04 - 0.14)
- S
VC (m/min) (20 - 100)
FZ (mm/t) (0.04 - 0.12)
FZ (mm/t) (0.04 - 0.12)
