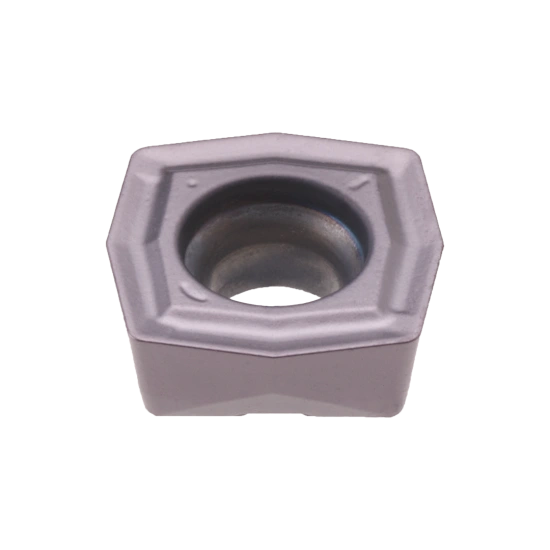

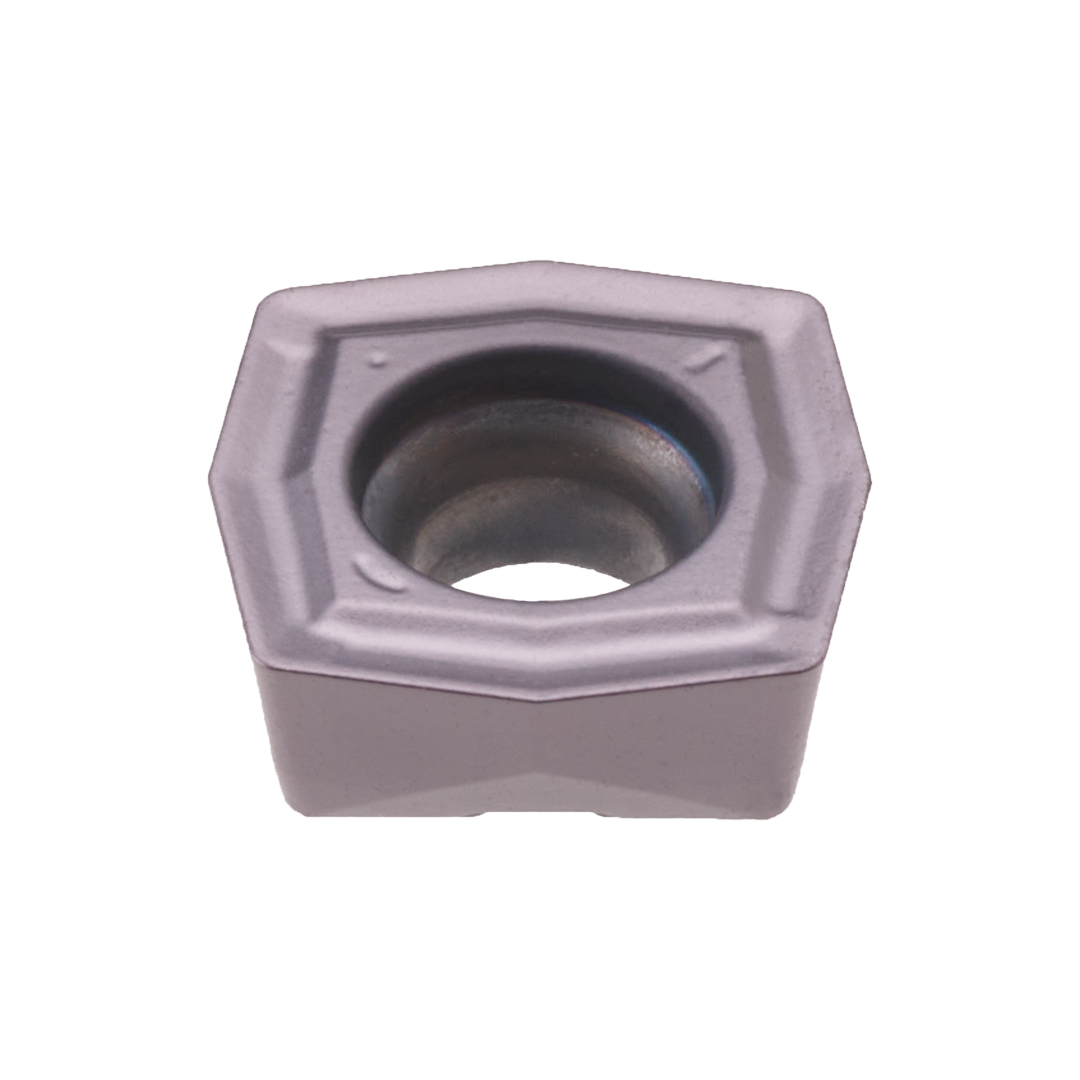

INSERT XOKX 090305-MP PHP930
1142118P4 | PAST. XOKX 090305-MP PHP930
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4
Inscribed circle diameter (IC)
9.6 mm
Insert shape code (SC)
X
Corner radius (RE)
0.5 mm
Hand (HAND)
R
Grade (GRADE)
PHP930
Insert thickness (S)
3.5 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
3.5 mm
Tolerance class insert (TCINS)
K
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- K
VC (m/min) (60 - 250)
FZ (mm/t) (0.04 - 0.18)
FZ (mm/t) (0.04 - 0.18)
- P
VC (m/min) (60 - 250)
FZ (mm/t) (0.04 - 0.17)
FZ (mm/t) (0.04 - 0.17)
