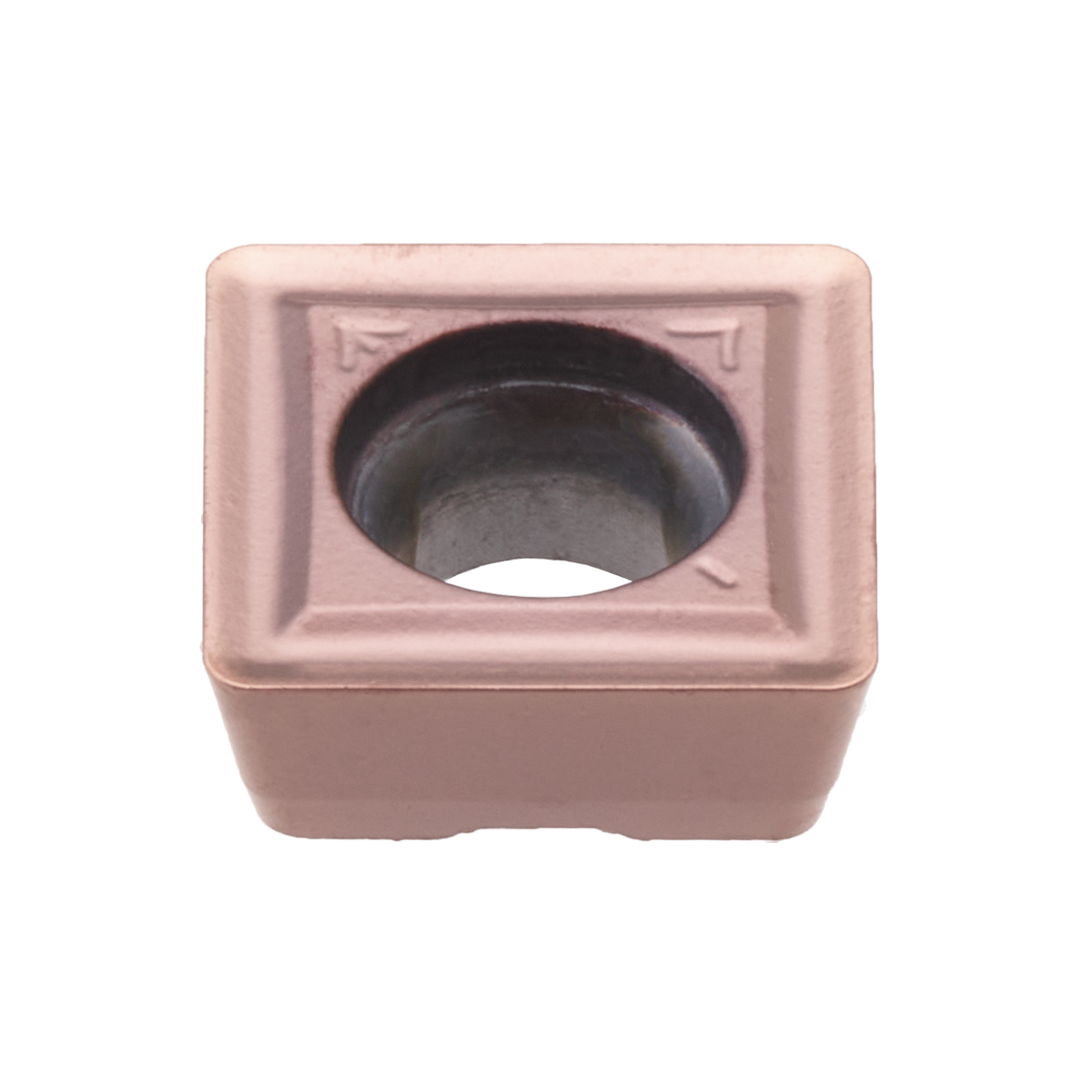

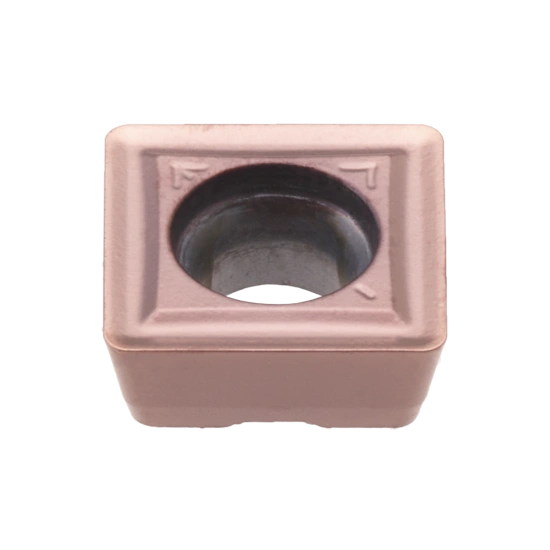

INSERT SOKX 150510-MS PHH920

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1142139Y3 | PAST. SOKX 150510-MS PHH920

Technical flyer Web page

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Drilling

Cutting edge count (CEDC)

Inscribed circle diameter (IC)

15.2 mm

Insert shape code (SC)

Corner radius (RE)

1 mm

Hand (HAND)

Grade (GRADE)

PHH920

Insert thickness (S)

5.3 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

5.6 mm

Tolerance class insert (TCINS)
