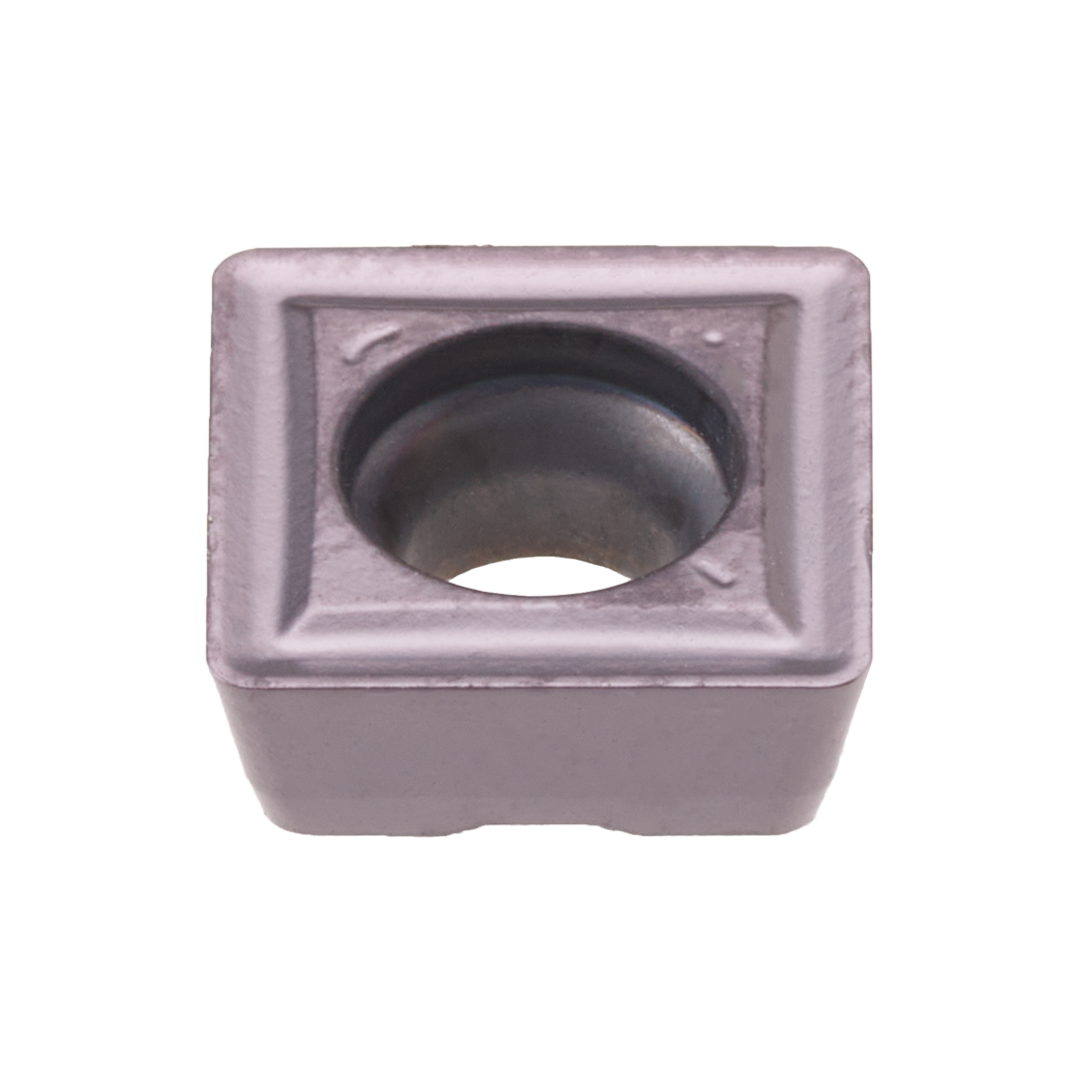

INSERT SOKX 060205-MP PHP920
1142115T1 | PAST. SOKX 060205-MP PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4

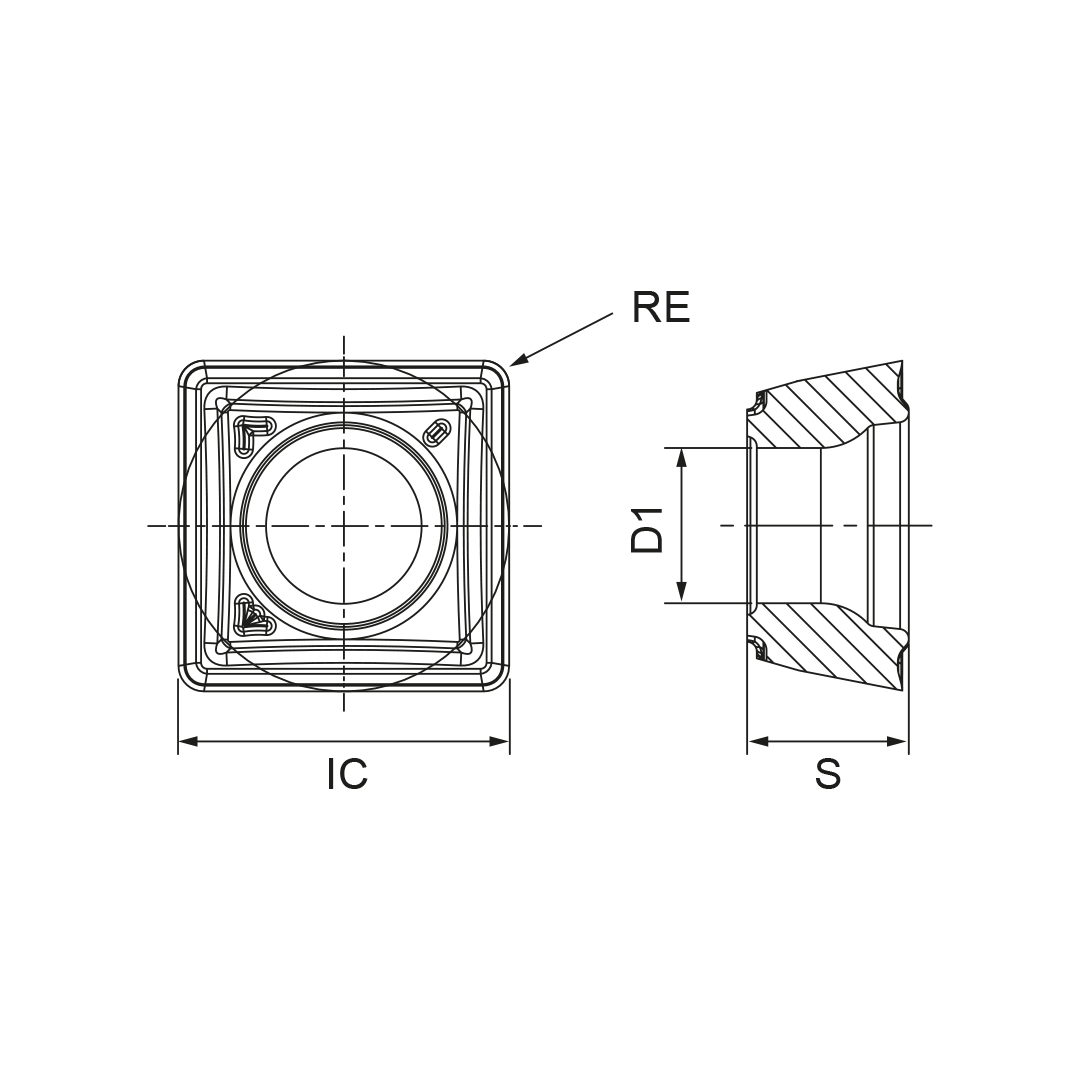

Inscribed circle diameter (IC)
6.2 mm
Insert shape code (SC)
S
Corner radius (RE)
0.5 mm
Hand (HAND)
R
Grade (GRADE)
PHP920
Insert thickness (S)
2.6 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
2.6 mm
Tolerance class insert (TCINS)
K
Start values
- K
- P
