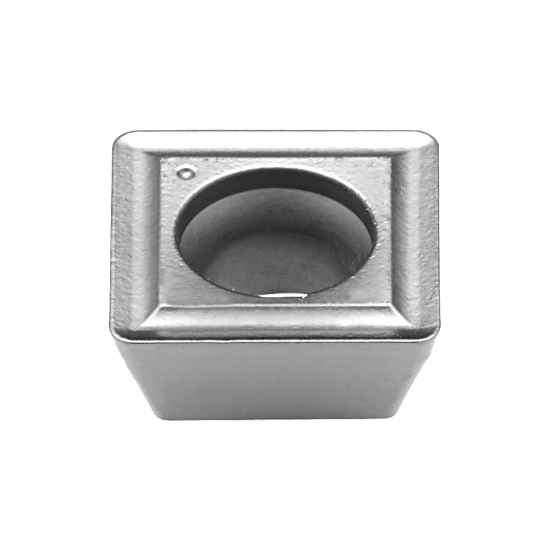

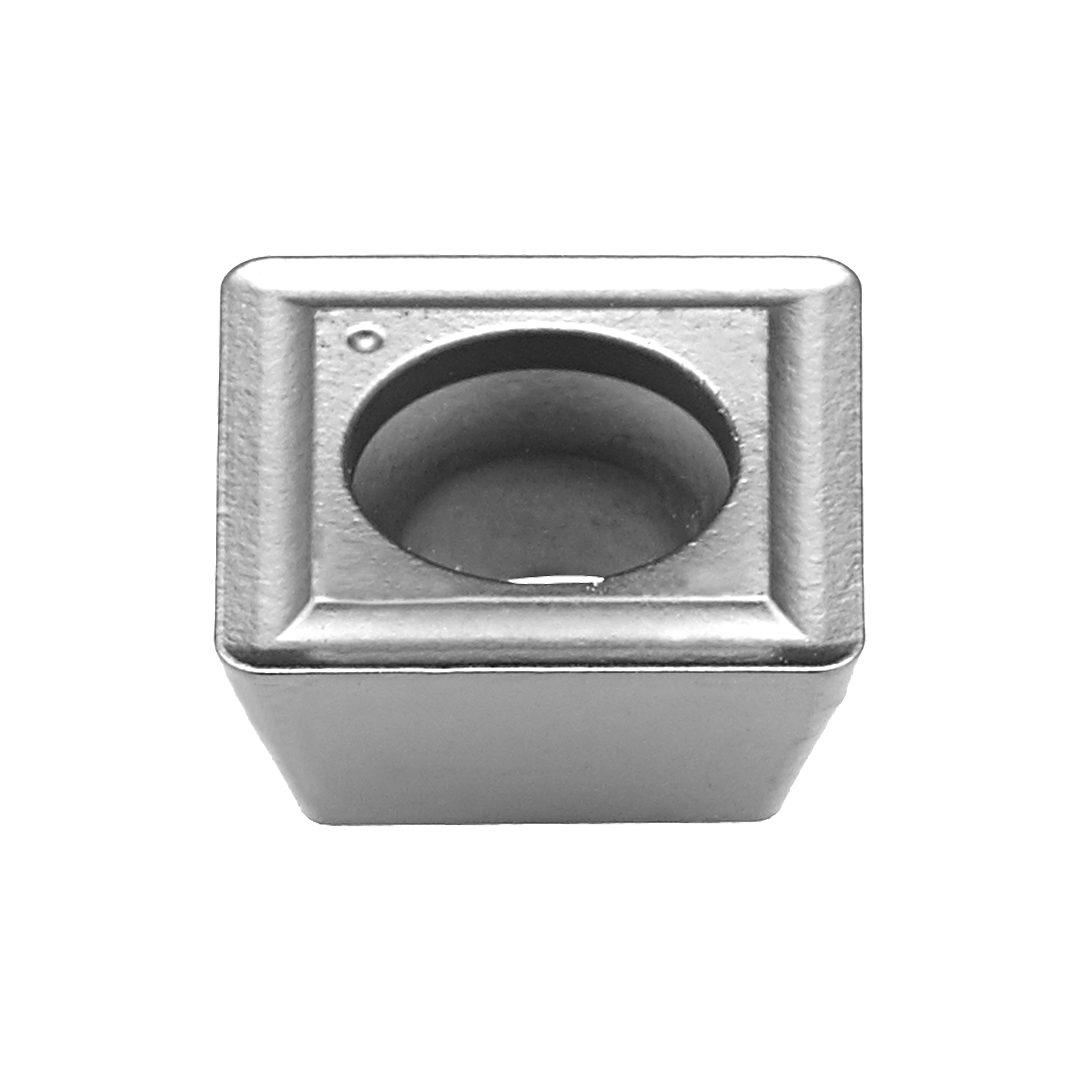

INSERT SPKX 090308 PH6920
111163768 | PAST. SPKX 090308 PH6920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Specialty Milling
Cutting edge count (CEDC)
4

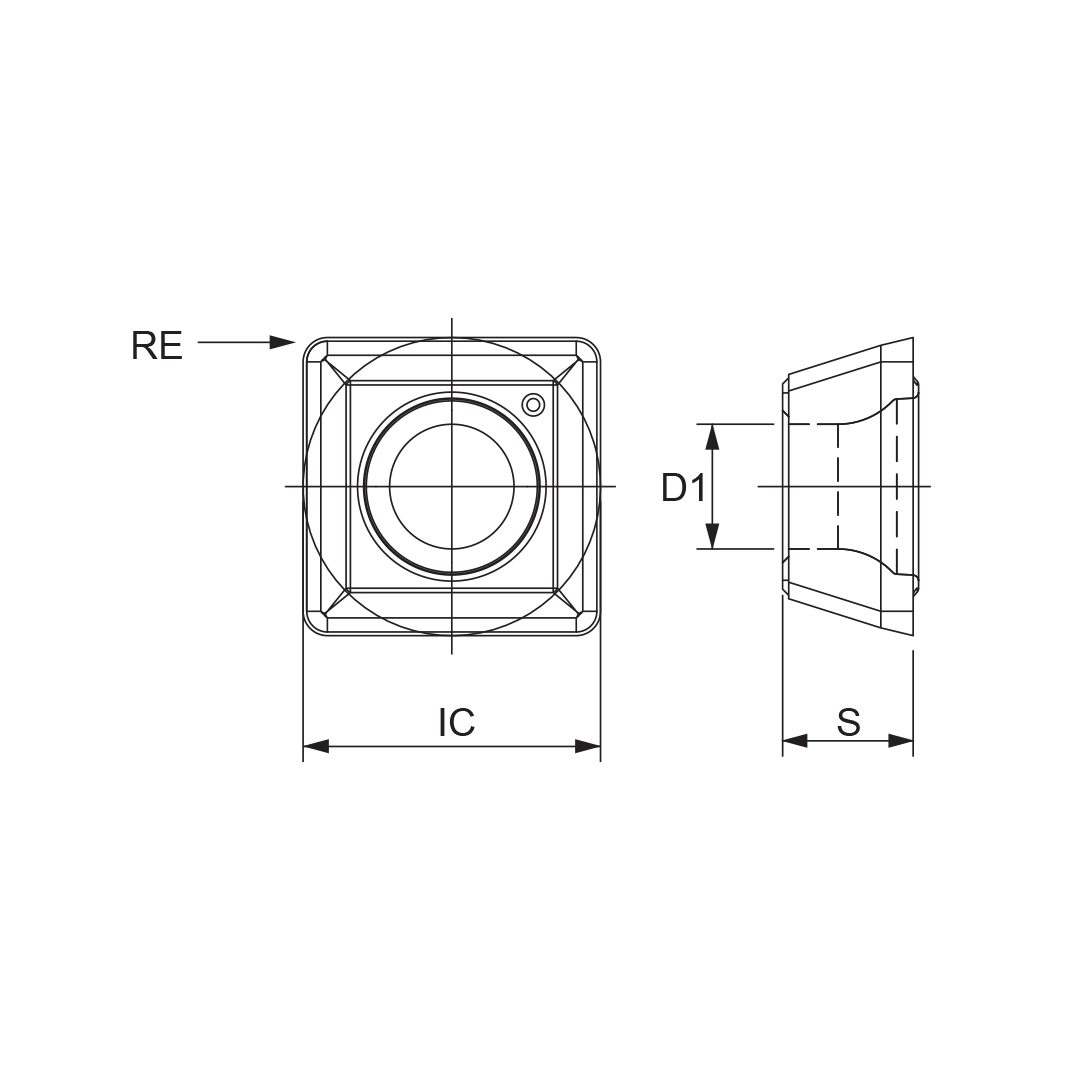

Inscribed circle diameter (IC)
9.8 mm
Insert shape code (SC)
S
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PH6920
Insert thickness (S)
3.18 mm
Chip breaker manufacturer's designation (CBMD)
08
Fixing hole diameter (D1)
0.1614 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (100 - 280)
FZ (mm/t) (0.12 - 0.25)
FZ (mm/t) (0.12 - 0.25)
- M
VC (m/min) (60 - 240)
FZ (mm/t) (0.09 - 0.16)
FZ (mm/t) (0.09 - 0.16)
- P
VC (m/min) (60 - 340)
FZ (mm/t) (0.07 - 0.23)
FZ (mm/t) (0.07 - 0.23)
