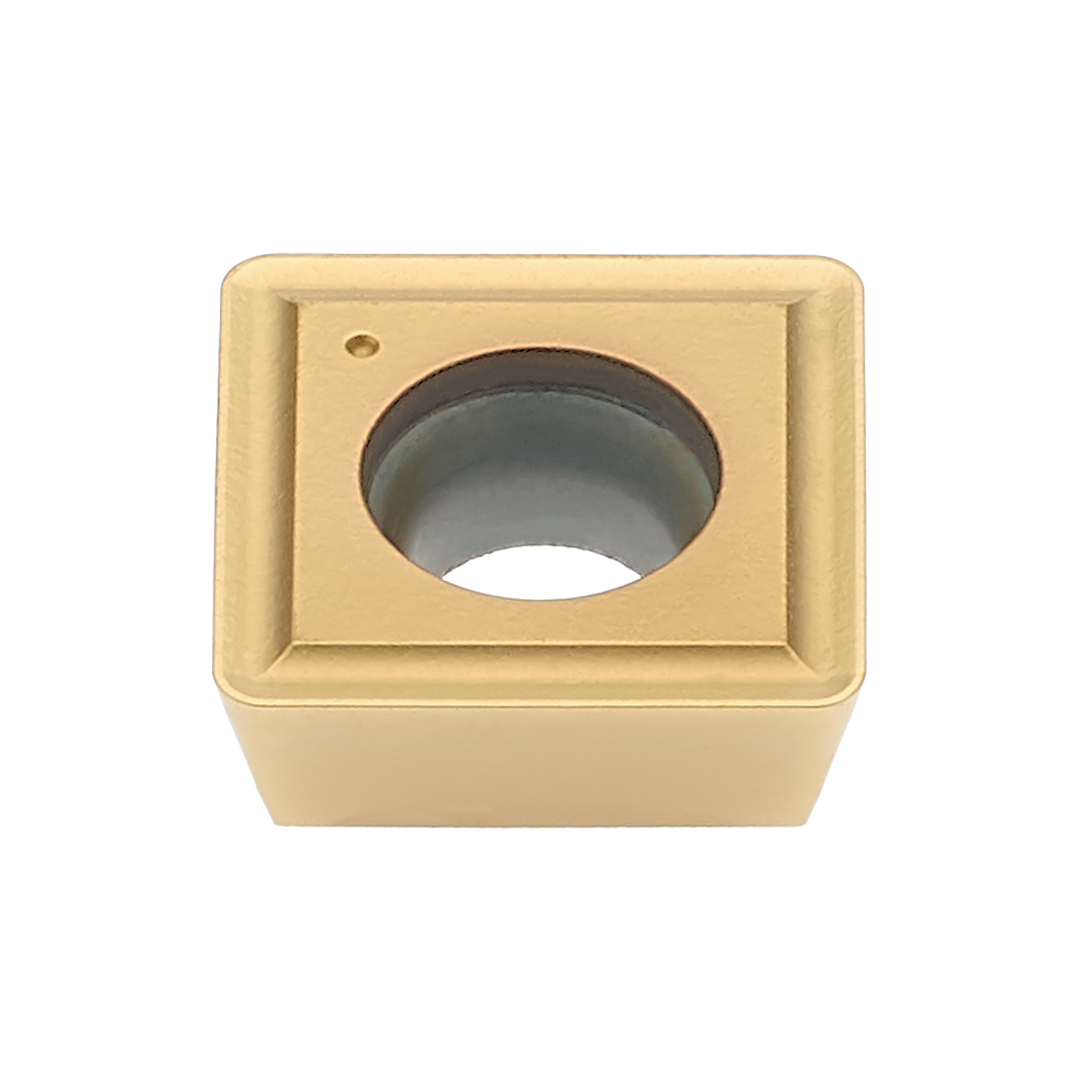

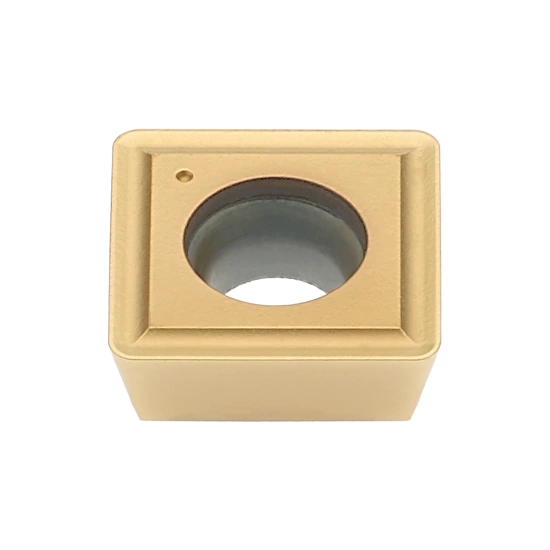

INSERT SPKX 060204 PHL930
11112823B | PAST. SPKX 060204 PHL930
Product data
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4

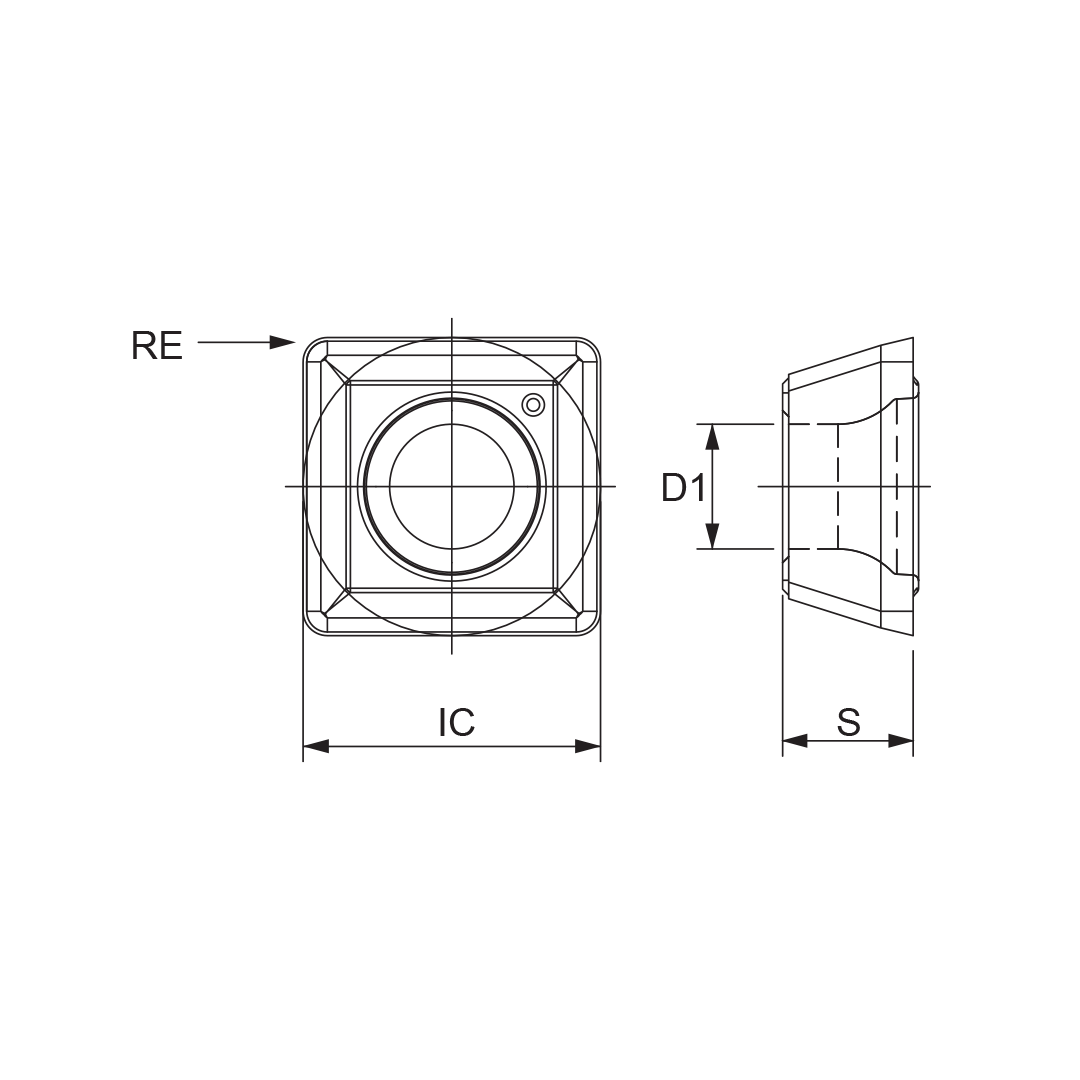

Inscribed circle diameter (IC)
6 mm
Insert shape code (SC)
S
Corner radius (RE)
0.4 mm
Hand (HAND)
R
Grade (GRADE)
PHL930
Insert thickness (S)
2.38 mm
Fixing hole diameter (D1)
2.25 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (100 - 230)
FZ (mm/t) (0.08 - 0.16)
FZ (mm/t) (0.08 - 0.16)
- M
VC (m/min) (80 - 170)
FZ (mm/t) (0.06 - 0.12)
FZ (mm/t) (0.06 - 0.12)
- P
VC (m/min) (120 - 180)
FZ (mm/t) (0.06 - 0.15)
FZ (mm/t) (0.06 - 0.15)
