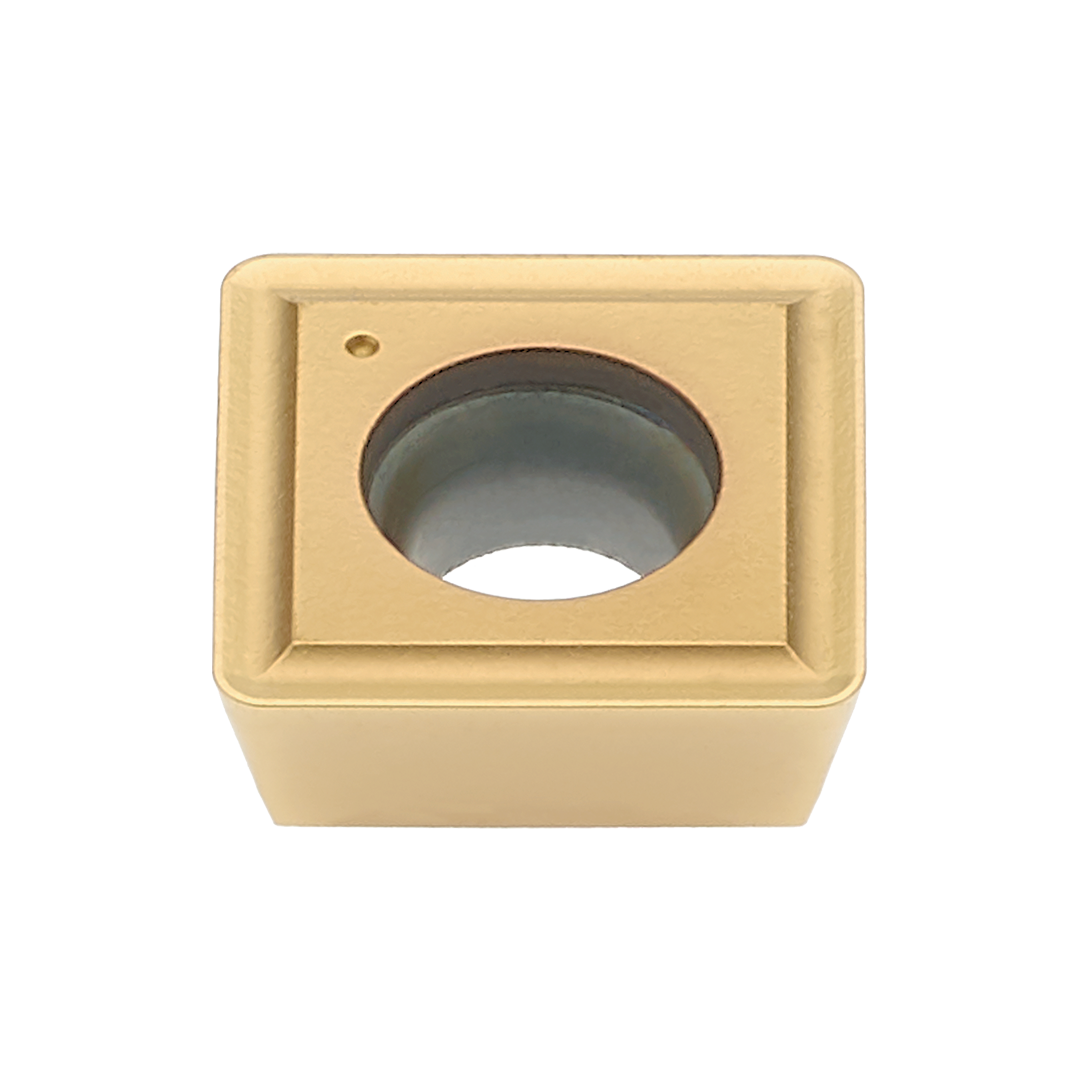

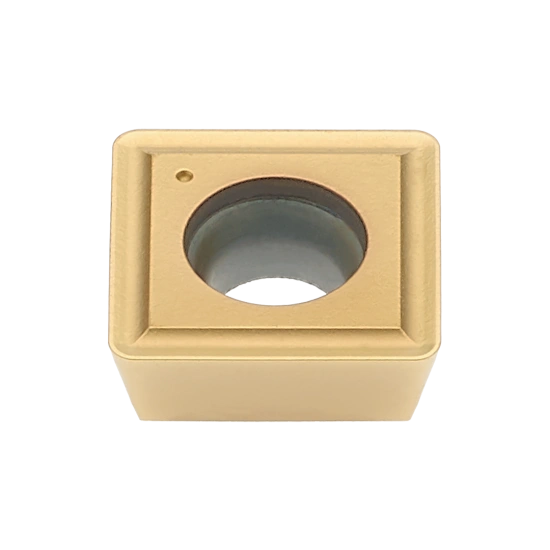

INSERT SPKX 050204 PHC930

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1111281J3 | PAST. SPKX 050204 PHC930

Product data

Operation type (CTPT)

Drilling

Cutting edge count (CEDC)

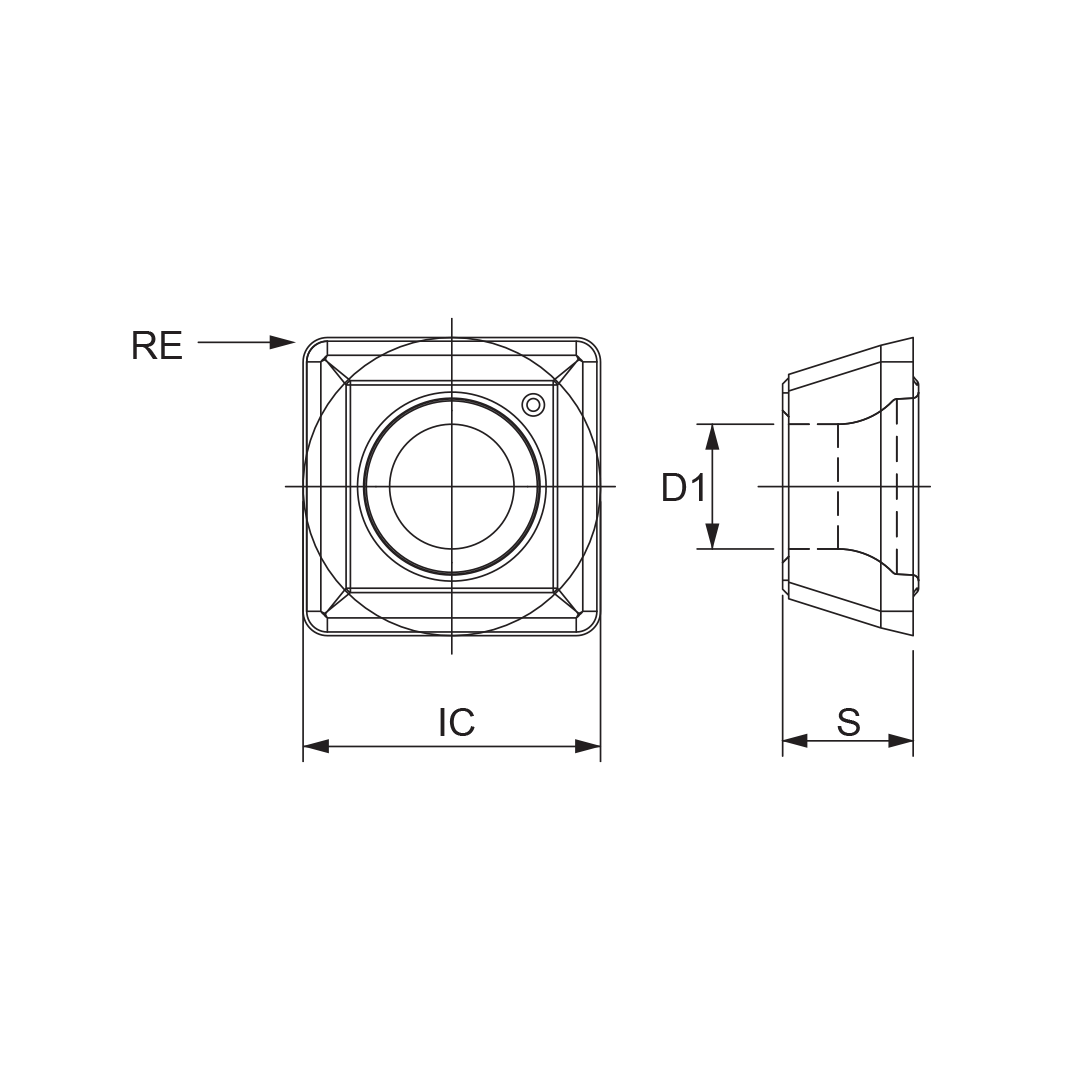

Inscribed circle diameter (IC)

5 mm

Insert shape code (SC)

Corner radius (RE)

0.4 mm

Hand (HAND)

Grade (GRADE)

PHC930

Insert thickness (S)

2.38 mm

Fixing hole diameter (D1)

2.2 mm

Tolerance class insert (TCINS)

VC (m/min) (80 - 260)

VC (m/min) (40 - 220)

VC (m/min) (40 - 240)
