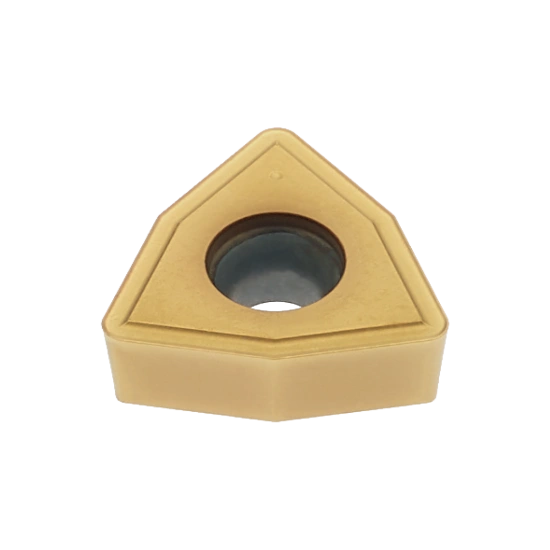

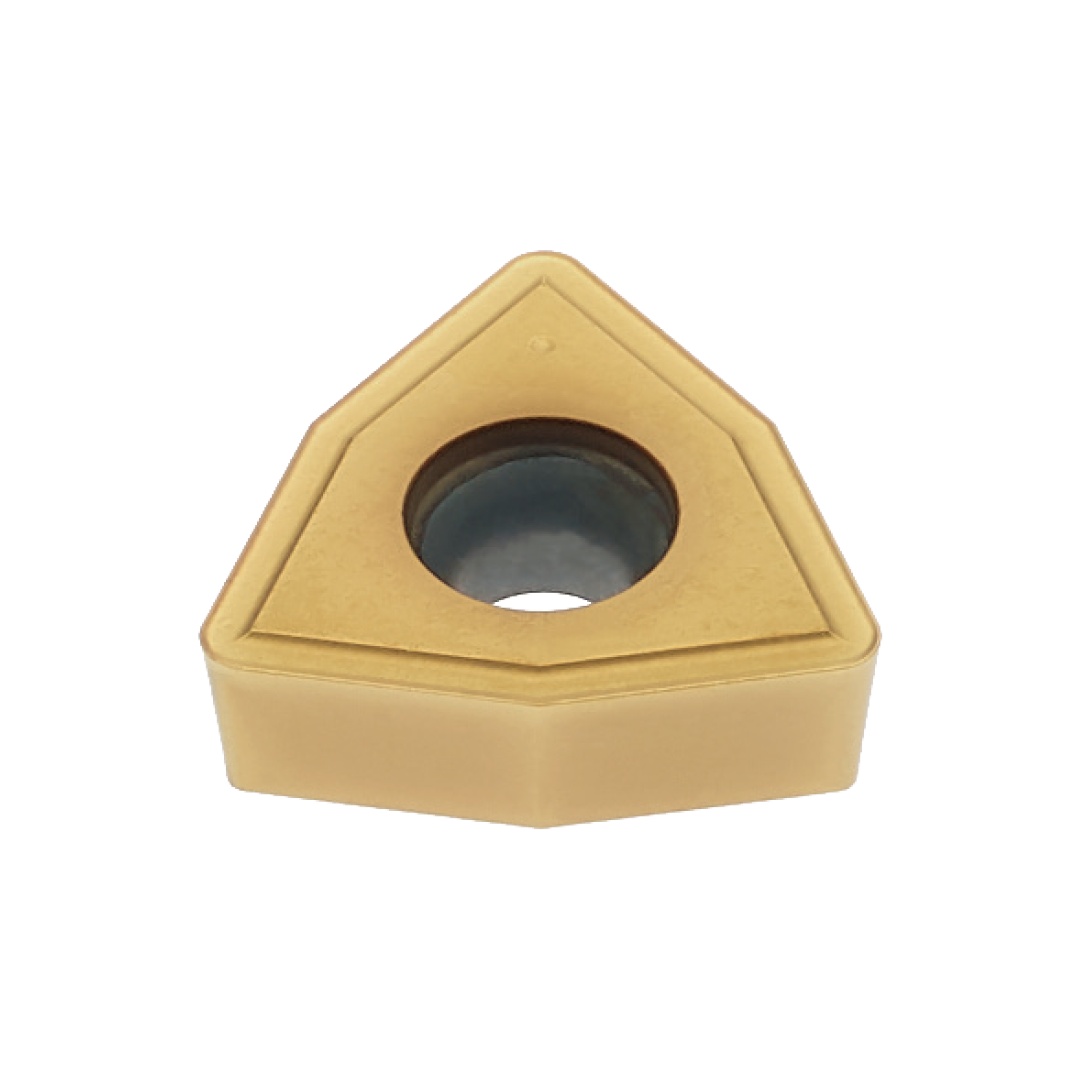

INSERT WCMX 06T308 PHL930
11208313B | PAST. WCMX 06T308 PHL930
Product data
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4

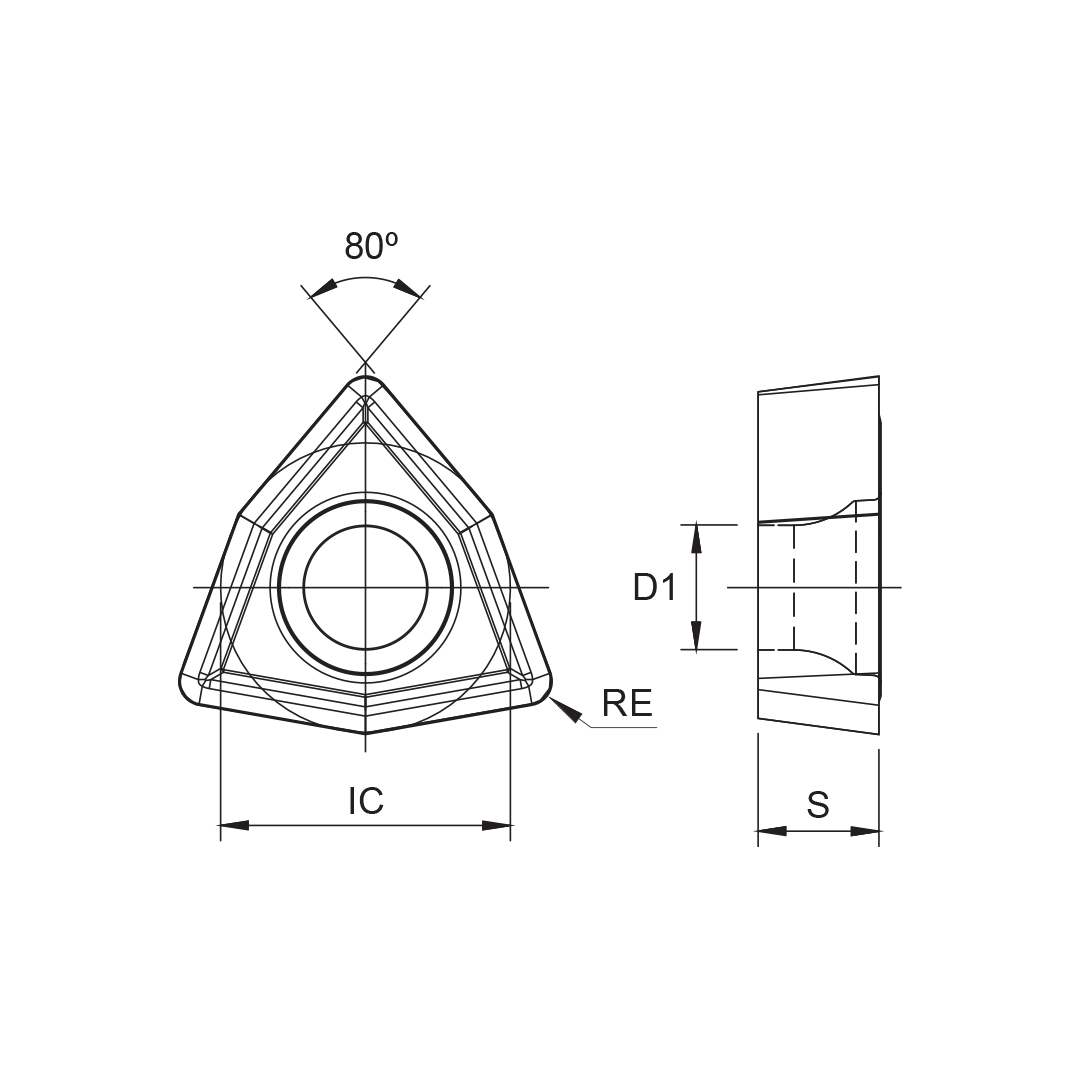

Inscribed circle diameter (IC)
9.55 mm
Insert shape code (SC)
W
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PHL930
Insert thickness (S)
3.97 mm
Fixing hole diameter (D1)
3.7 mm
Tolerance class insert (TCINS)
M
Start values
- K
VC (m/min) (80 - 180)
- M
VC (m/min) (100 - 210)
- P
VC (m/min) (100 - 200)
