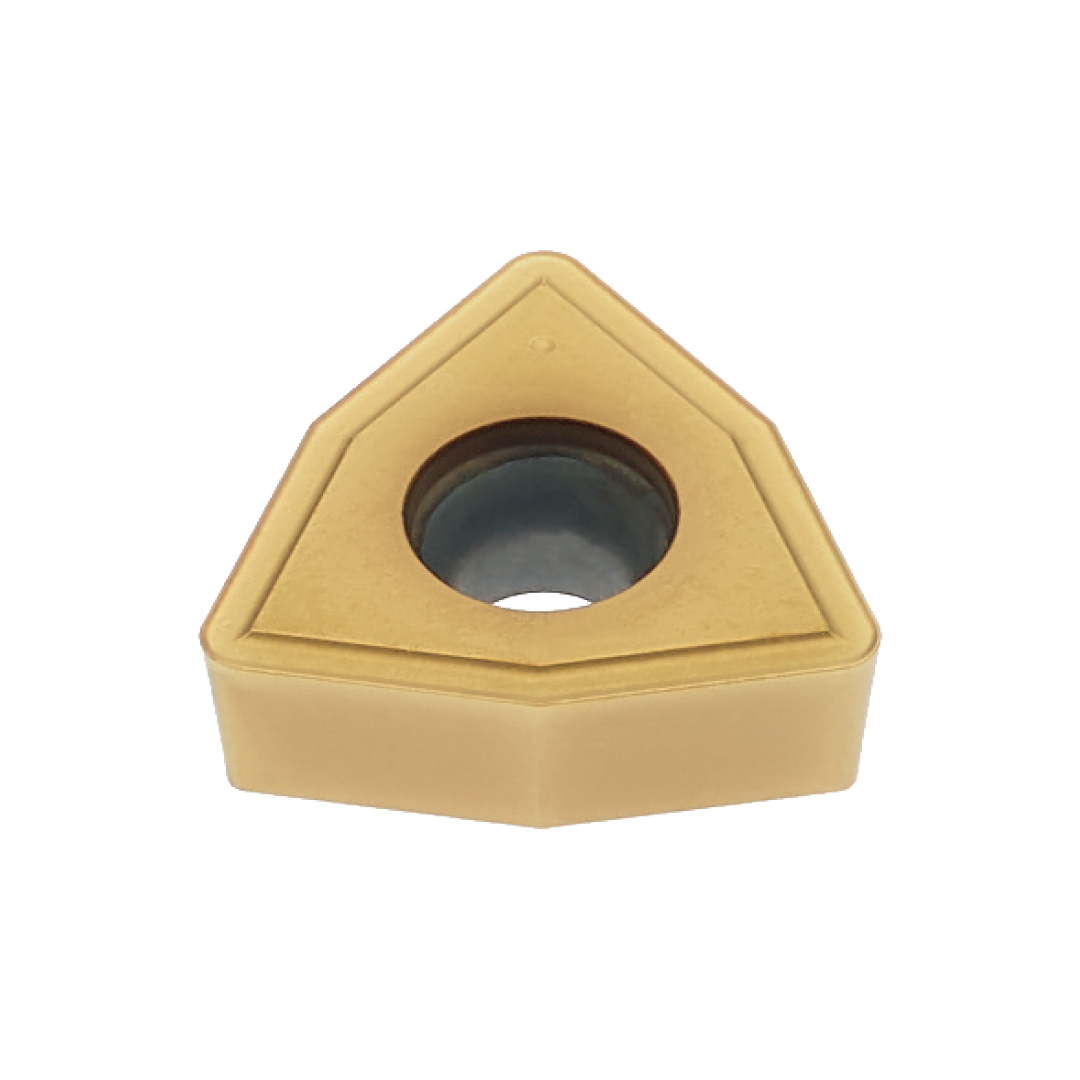

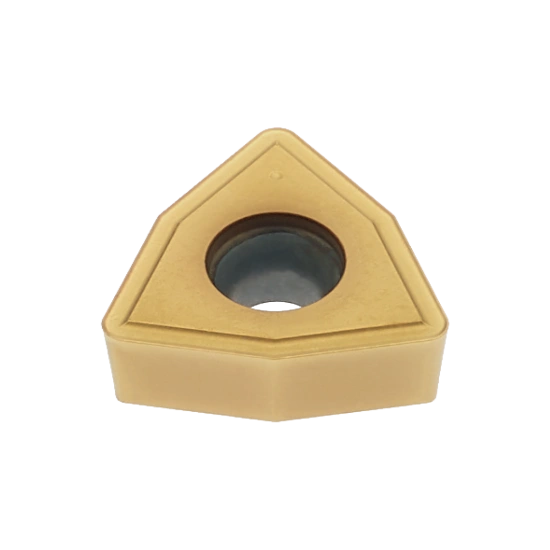

INSERT WCMX 030208 PHL930

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

11208283B | PAST. WCMX 030208 PHL930

Product data

Operation type (CTPT)

Drilling

Cutting edge count (CEDC)

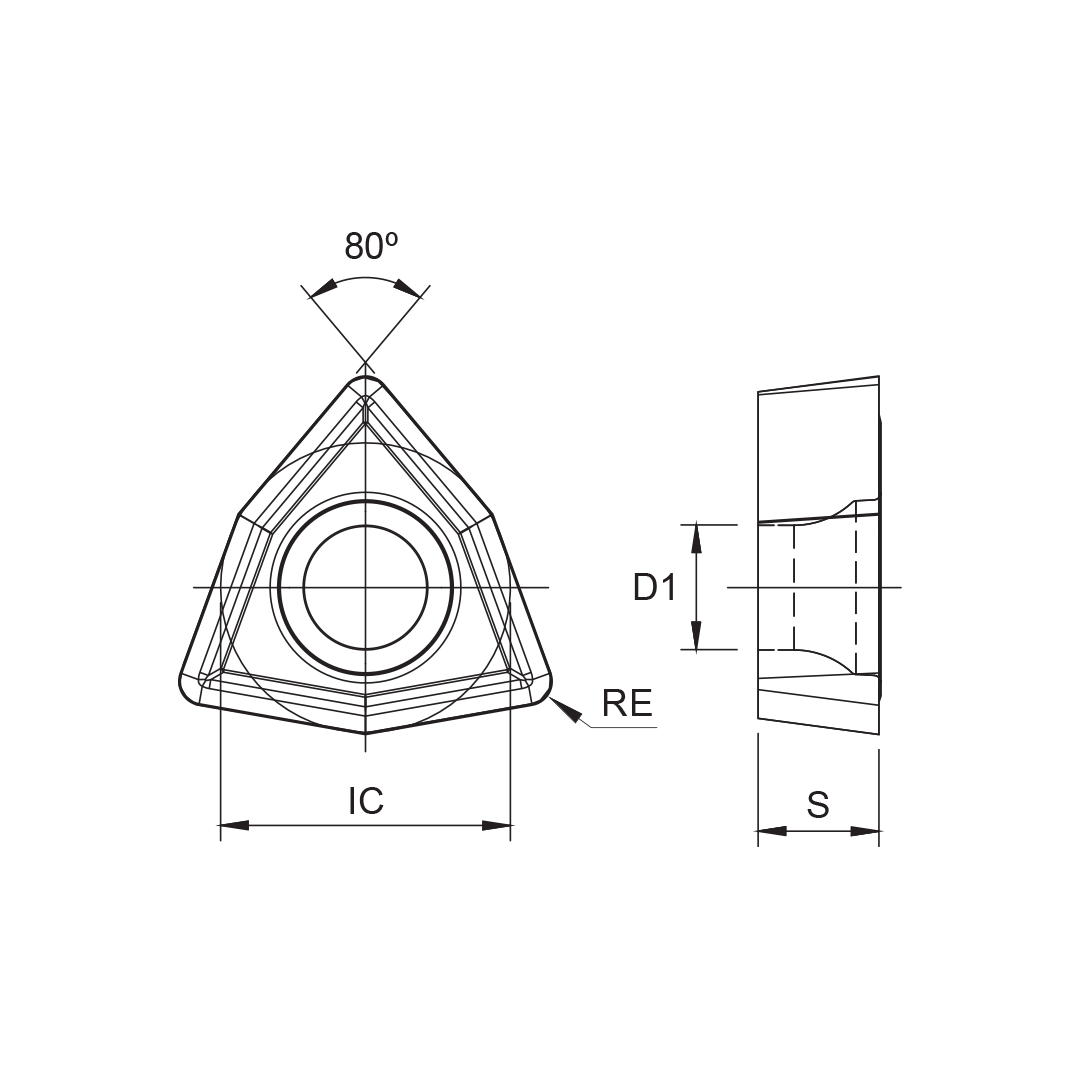

Inscribed circle diameter (IC)

5.56 mm

Insert shape code (SC)

Corner radius (RE)

0.8 mm

Hand (HAND)

Grade (GRADE)

PHL930

Insert thickness (S)

2.38 mm

Fixing hole diameter (D1)

2.8 mm

Tolerance class insert (TCINS)

VC (m/min) (80 - 260)
FN (mm/r) (0.06 - 0.13)

VC (m/min) (40 - 220)
FN (mm/r) (0.05 - 0.09)

VC (m/min) (40 - 240)
FN (mm/r) (0.06 - 0.1)
