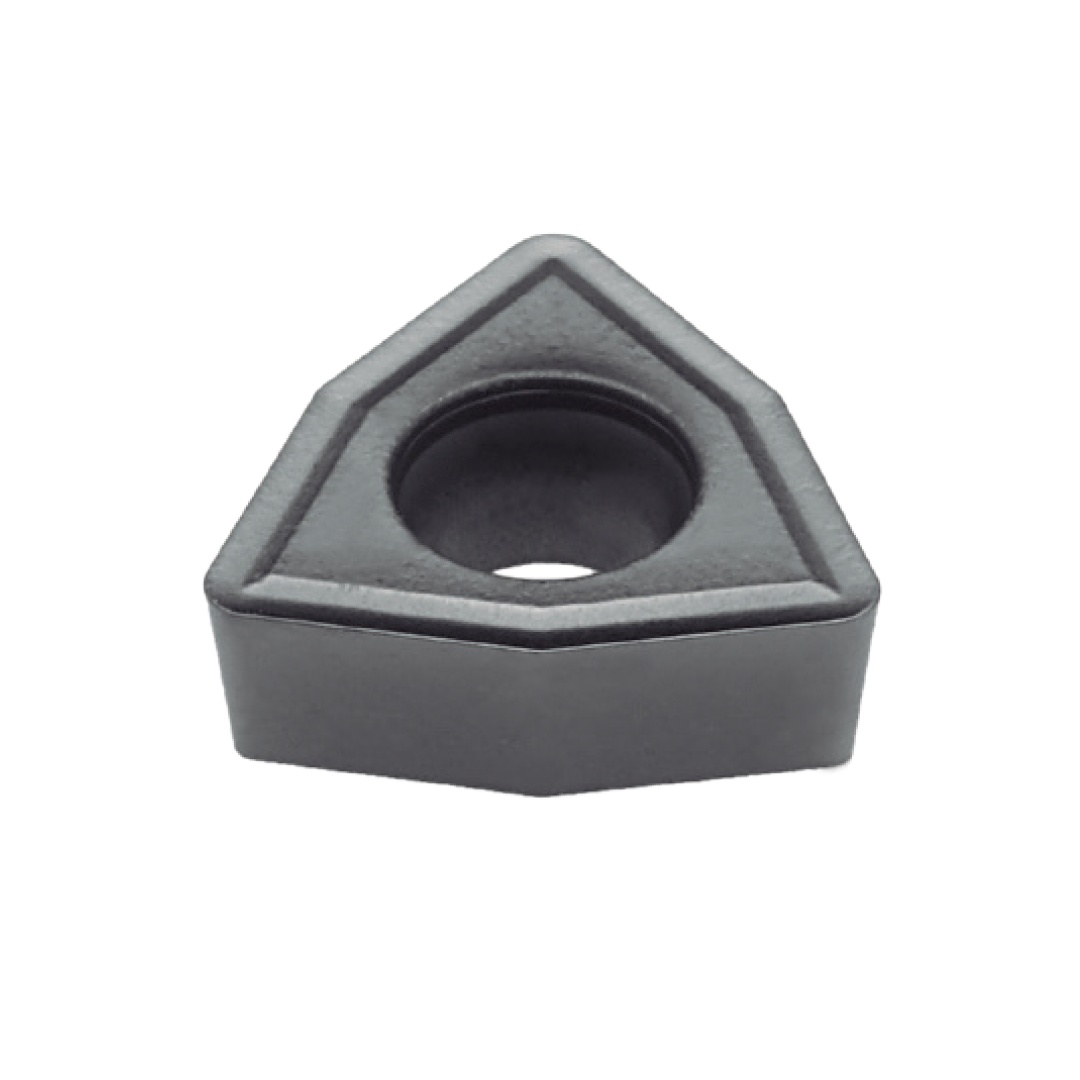

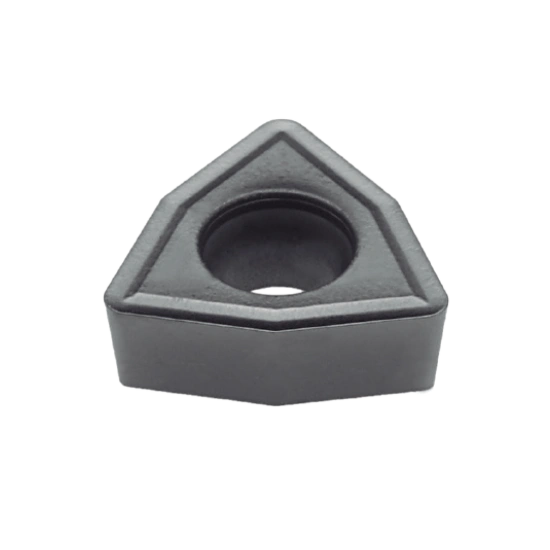

INSERT WCKX 050308 PH6125
114027878 | PAST. WCKX 050308 PH6125
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4

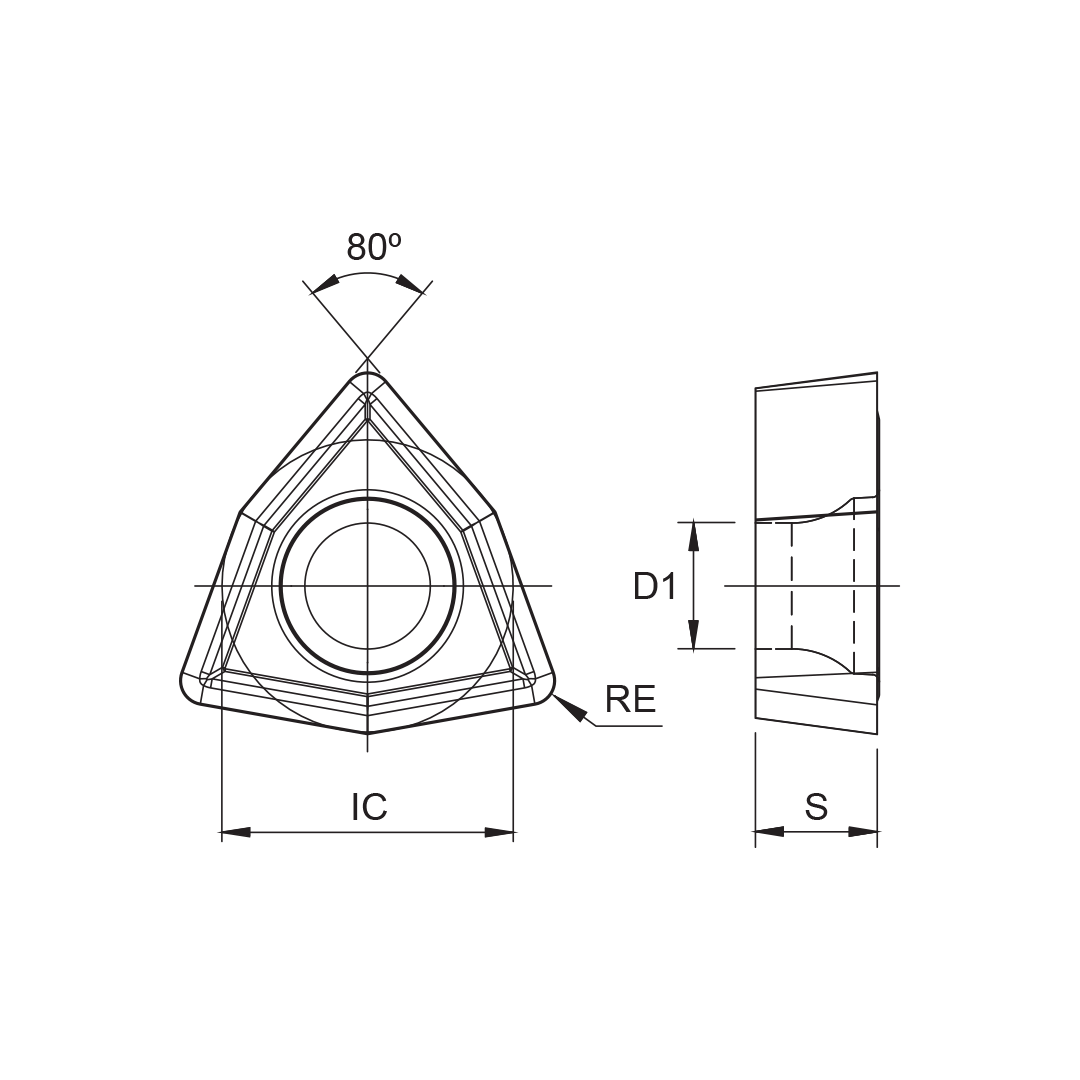

Inscribed circle diameter (IC)
7.94 mm
Insert shape code (SC)
W
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH6125
Insert thickness (S)
3.18 mm
Fixing hole diameter (D1)
3.5 mm
Tolerance class insert (TCINS)
K
