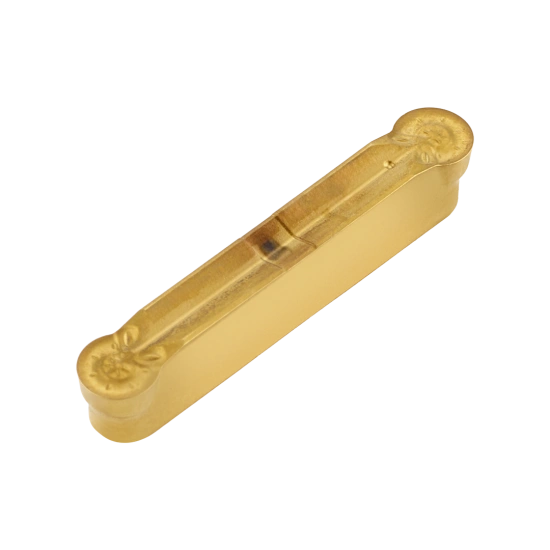

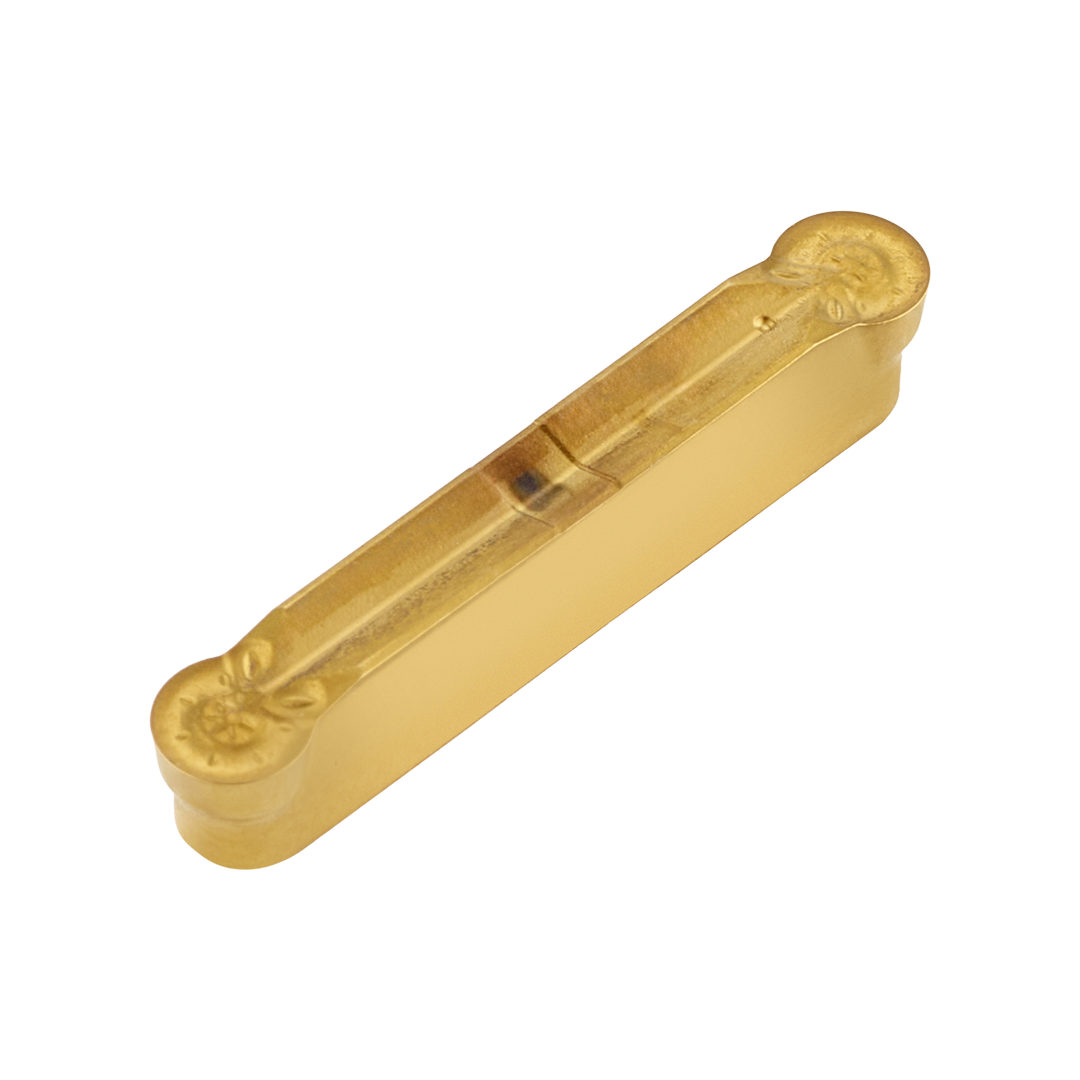

GRV INSERT MG0200A100-N02-PG PHL910

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

11309176F | SAP. MG0200A100-N02-PG PHL910

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Grooving & Parting Off

Cutting edge count (CEDC)

Corner radius (RE)

1 mm

Grade (GRADE)

PHL910

Cutting width (CW)

2 mm

Cutting depth maximum (CDX)

20 mm

Chip breaker manufacturer's designation (CBMD)

Insert length (INSL)

22 mm

Insert seat size code (SSC)
