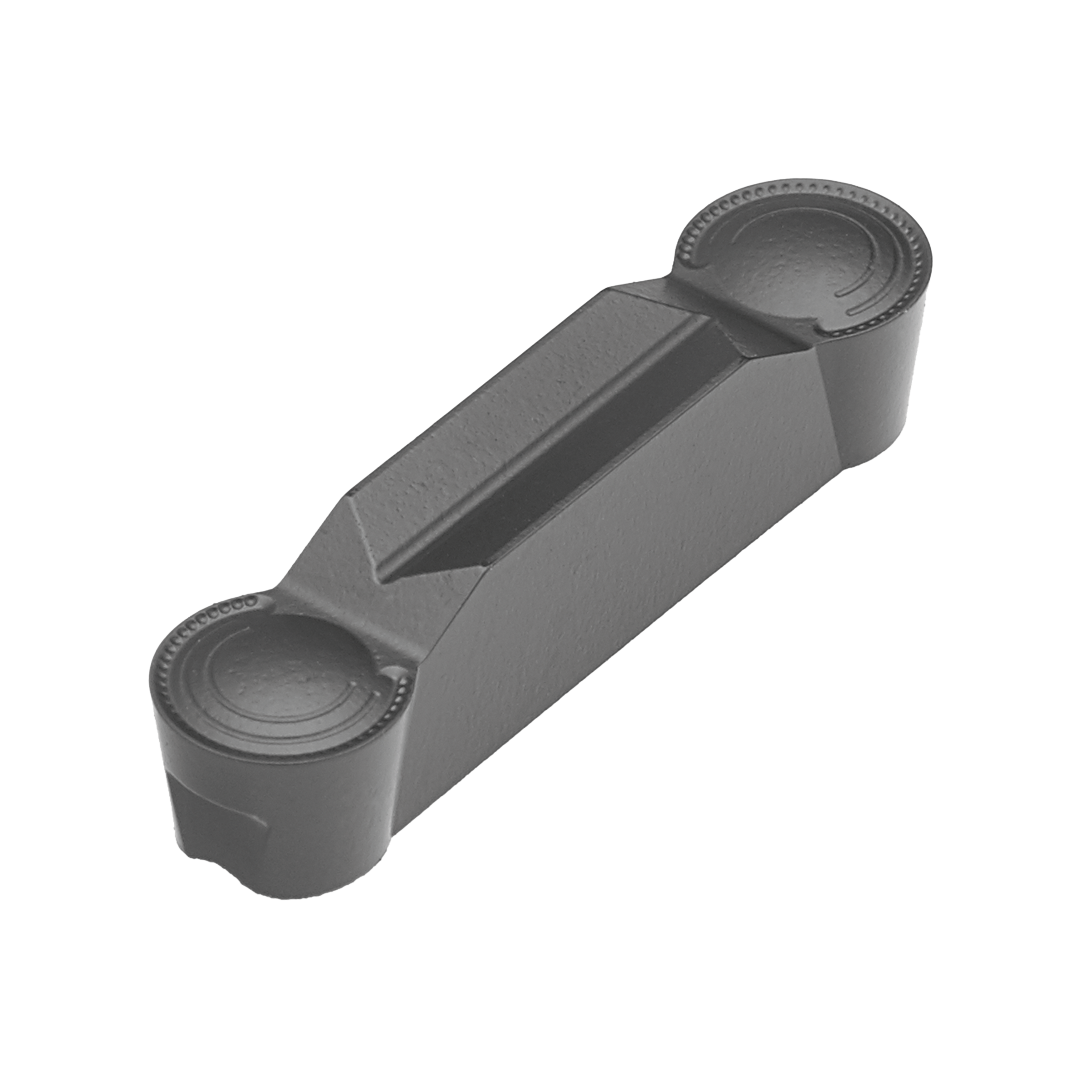

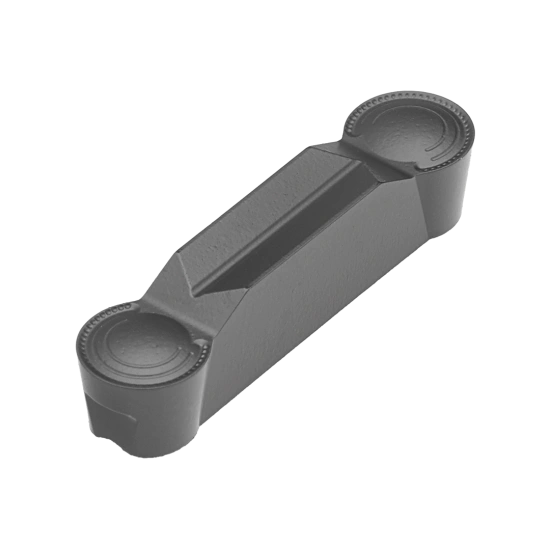

GRV INSERT GP0600E300-N02-MP PHP920
1130404T1 | SAP. GP0600E300-N02-MP PHP920
Product data
Grade (GRADE)
PHP920
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- M
VC (m/min) (40 - 130)
FN (mm/r) (0.15 - 0.22)
AP (mm) (0.04 - 2.2)
FN (mm/r) (0.15 - 0.22)
AP (mm) (0.04 - 2.2)
- P
VC (m/min) (50 - 150)
FN (mm/r) (0.15 - 0.22)
AP (mm) (0.04 - 2.2)
FN (mm/r) (0.15 - 0.22)
AP (mm) (0.04 - 2.2)
- S
VC (m/min) (20 - 90)
FN (mm/r) (0.15 - 0.22)
AP (mm) (0.04 - 2.2)
FN (mm/r) (0.15 - 0.22)
AP (mm) (0.04 - 2.2)
