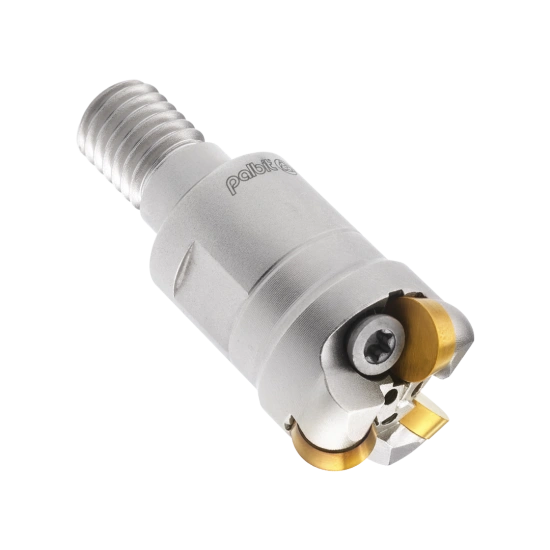

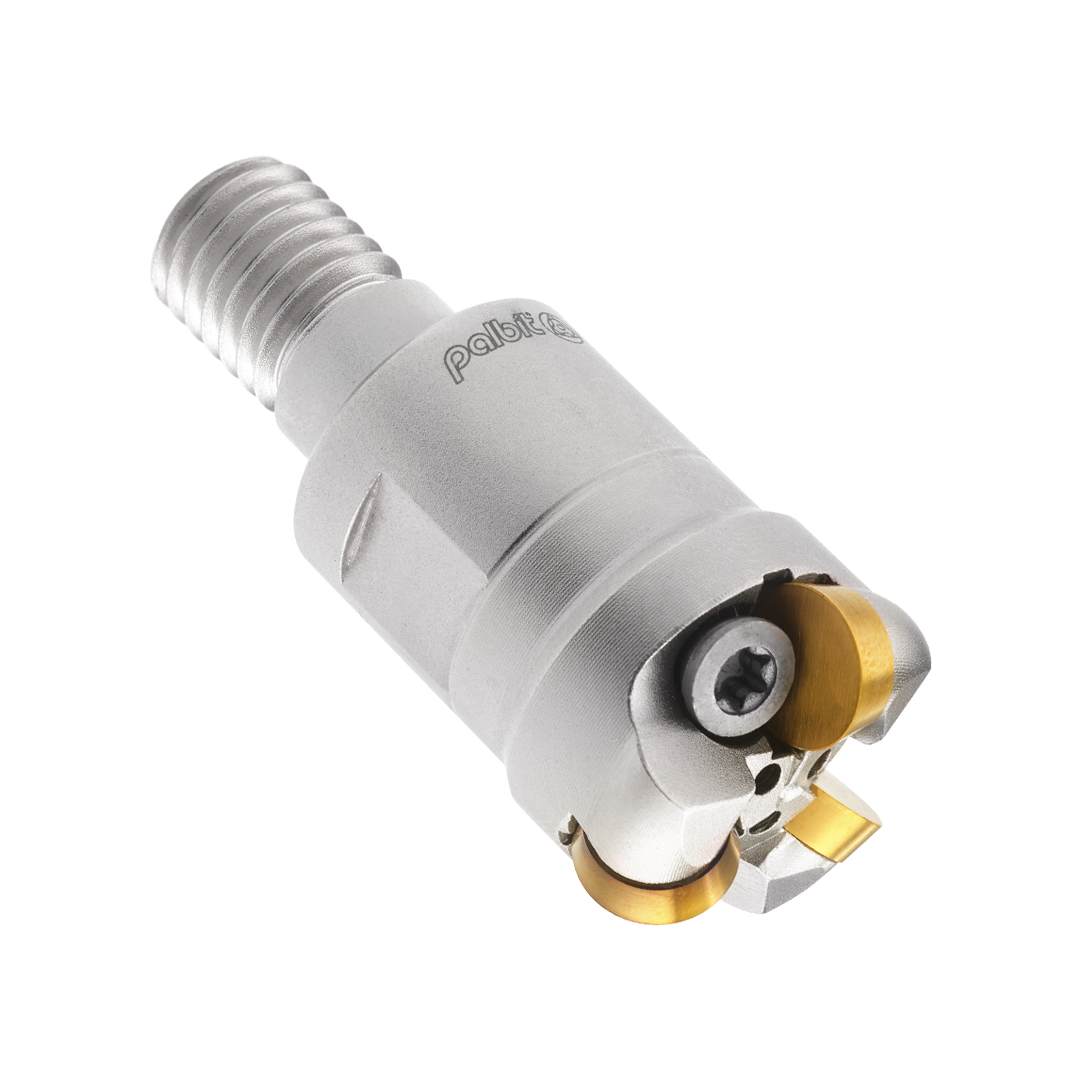

MILLING TOOL 025R44190-03-05-M12035

181209100 | FRESA 025R44190-03-05-M12035

Product data

Hand (HAND)

Depth of cut maximum (APMX)

2.5 mm

Axial rake angle (GAMP)

5,5

Adaptive interface machine direction (ADINTMS)

Threaded Coupling

Cutting diameter (DC)

15.5 mm

Maximum cutting diameter (DCX)

25 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

35 mm

Radial rake angle (GAMF)

-3,6

Cutting item count (CICT)

Contact surface diameter machine side (DCSFMS)

21 mm

Cutting pitch differential (CPDF)

Connection Thread Nominal Size Machine Side (THSZMS)

M12

Article code

290078900

Reference

P0501302

Article code

290078400

Reference

DT2050

Article code

290013200

Reference

XT20-S40
