Superior finish on complex surfaces
.webp "Solution for finishing operations")

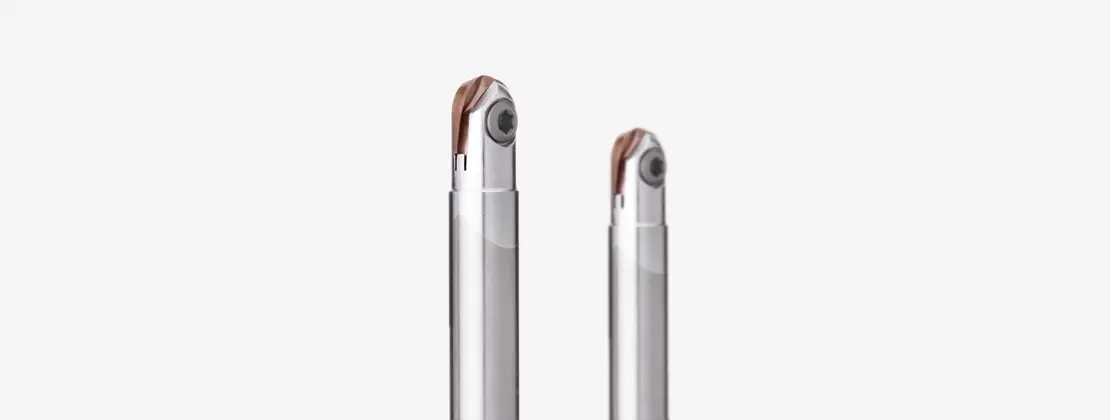

W-PRO 62090
UPDATED TOOLHOLDER RANGE
The W-PRO line is the combination of the most refined inserts with exceptionally stable shanks, making it an ideal finishing solution for materials such as steels, stainless steels, cast irons and hardened steels.
The design allows users to position the insert consistently, with the same side always facing the same direction when mounted in the tool body. This ensures high repeatable accuracy, reliability, excellent surface quality and predictable tool life.
We are launching an updated version of our W-PRO 62090 toolholder range. It has been developed to offer greater size flexibility and improved compatibility across applications, while making it easier to select the correct coupling for each setup.
This new generation introduces changes to both coupling types
■ The range of carbide cylindrical shank toolholders has been expanded to include additional LU lengths, as well as shorter options for each diameter, in order to better align with customer requirements;
■ All threaded toolholders have transitioned from a non-coolant system to an internal coolant system, In addition, the range has been expanded with the introduction of a new smaller diameter, DC 8 mm;
The design allows users to position the insert consistently, with the same side always facing the same direction when mounted in the tool body. This ensures high repeatable accuracy, reliability, excellent surface quality and predictable tool life.
We are launching an updated version of our W-PRO 62090 toolholder range. It has been developed to offer greater size flexibility and improved compatibility across applications, while making it easier to select the correct coupling for each setup.
This new generation introduces changes to both coupling types
■ The range of carbide cylindrical shank toolholders has been expanded to include additional LU lengths, as well as shorter options for each diameter, in order to better align with customer requirements;
■ All threaded toolholders have transitioned from a non-coolant system to an internal coolant system, In addition, the range has been expanded with the introduction of a new smaller diameter, DC 8 mm;
Main Changes on toolholders
Now with a new coating and new geometries
find out more!

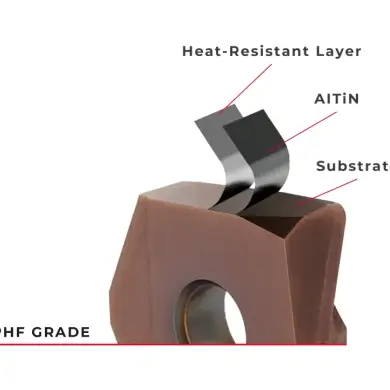

PHF Grade Presentation New Coating
Continuing our commitment to high-performance cutting tools, we introduce our new PHF grade series.
PHF coating introduces significant improvements in the machining of hard and exotic materials due to improved thermal stability, microhardness and excellent adhesion, thus increasing process stability and efficiency in the machining of hardened steels.
Hardened steels with a hardness above 50 HRC are not only extremely hard but also exhibit a certain level of toughness. Furthermore, they often contain alloying elements that increase corrosion resistance, making machining more difficult. The PHF series was specifically developed to meet the challenge of machining these hardened steels.
Harder materials also require higher temperatures during machining, making durable, heat-resistant coatings essential for inserts. The PHF series provides excellent thermal insulation, preventing heat from reaching the tool and effectively dissipating it through the chips.
PHF coating introduces significant improvements in the machining of hard and exotic materials due to improved thermal stability, microhardness and excellent adhesion, thus increasing process stability and efficiency in the machining of hardened steels.
Hardened steels with a hardness above 50 HRC are not only extremely hard but also exhibit a certain level of toughness. Furthermore, they often contain alloying elements that increase corrosion resistance, making machining more difficult. The PHF series was specifically developed to meet the challenge of machining these hardened steels.
Harder materials also require higher temperatures during machining, making durable, heat-resistant coatings essential for inserts. The PHF series provides excellent thermal insulation, preventing heat from reaching the tool and effectively dissipating it through the chips.
Main benefits of PHF coating
■ Originally developed for machining hardened steels (over 50 HRC), it also demonstrates versatility with stainless steels, nickel-based alloys, titanium and normal steels;
■ High-density coating with better adhesion to any tool geometry and reduced roughness;
■ Heat resistant layer for exceptional thermal stability and hardness;
■ Prevents heat from affecting the tool, crucial for materials with poor thermal conductivity;
■ Improves chip removal, contributing to high process stability;
■ High temperature is dissipated through the filings, preserving the integrity and performance of the tool;
■ Particularly successful in the machining of injection molds.
■ Originally developed for machining hardened steels (over 50 HRC), it also demonstrates versatility with stainless steels, nickel-based alloys, titanium and normal steels;
■ High-density coating with better adhesion to any tool geometry and reduced roughness;
■ Heat resistant layer for exceptional thermal stability and hardness;
■ Prevents heat from affecting the tool, crucial for materials with poor thermal conductivity;
■ Improves chip removal, contributing to high process stability;
■ High temperature is dissipated through the filings, preserving the integrity and performance of the tool;
■ Particularly successful in the machining of injection molds.
WCX Inserts Discover the new geometries
Chip Breakers -HF, -XT & -LE
Chip Breakers -HF, -XT & -LE
With the introduction of new tangential inserts, barrel and lens, the W-PRO line is optimized for 5-axis machining of complex 3D surfaces and profiles, making it ideal for the mold and die and aerospace industries.
These advanced inserts are designed with larger radius cutting edges compared to traditional ball nose inserts, allowing for larger pitch or drop increments during machining. This results in significantly improved productivity while maintaining high-quality surface finishes, making the W-PRO the ideal choice for precision finishing operations on complex geometries.
WCX-XT and WCX-LE inserts are available in the PHF910 grade. This new coating offers high wear resistance thanks to the latest PVD coating technology, ensuring that the PHF910 delivers exceptionally long service life.
These advanced inserts are designed with larger radius cutting edges compared to traditional ball nose inserts, allowing for larger pitch or drop increments during machining. This results in significantly improved productivity while maintaining high-quality surface finishes, making the W-PRO the ideal choice for precision finishing operations on complex geometries.
WCX-XT and WCX-LE inserts are available in the PHF910 grade. This new coating offers high wear resistance thanks to the latest PVD coating technology, ensuring that the PHF910 delivers exceptionally long service life.

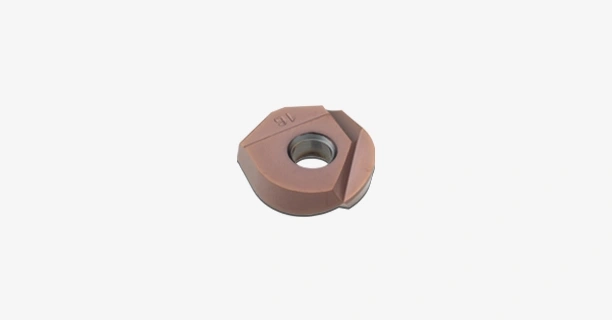

WCR
The WCR is a ball nose insert with a helical profile for a smooth cut, ideal for finishing and profiling 3D surfaces, available in sizes 08 to 20.

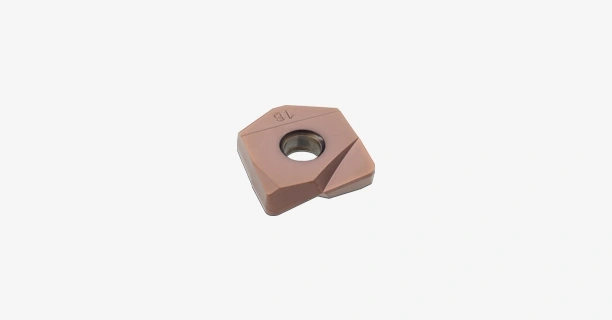

WCL
WCL is a square shaped insert with variable corner radii, combining stability and smooth cutting, available in sizes 08 to 20.

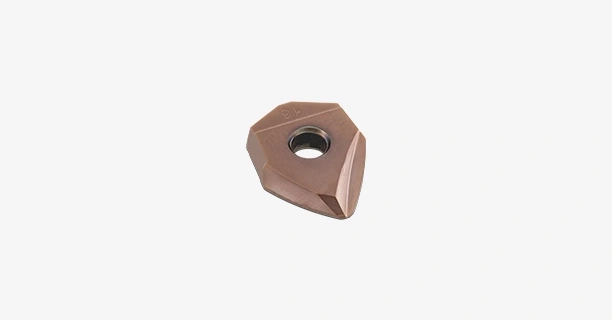

WCX-XT NEW
The WCX-XT is a multi-radius insert for 5-axis machining, combining a ball nose and a tangential cutting edge, available in sizes 12 to 20.

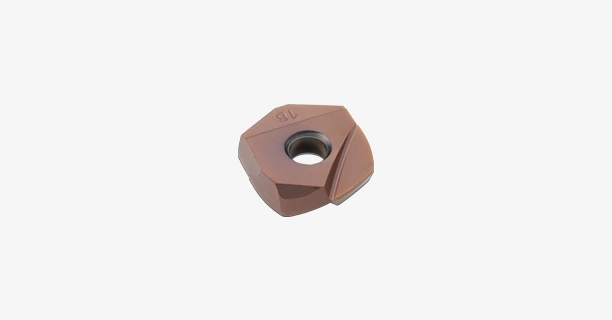

WCX-LE NEW
The WCX-LE is a multi-radius insert for 5-axis machining, combining lenses and barrel-shaped cutting edges for efficient bottom and wall surface machining, available in sizes 16 to 20.

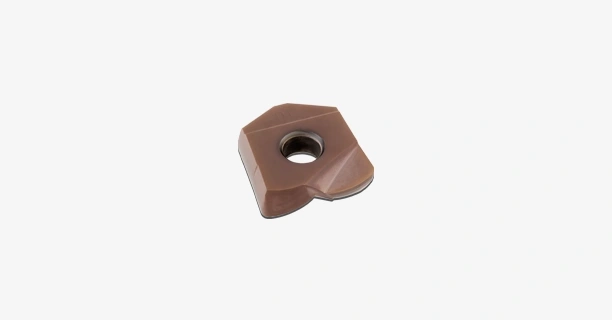

WCX-HF NEW
The WCX-HF is a high feed roughing tool that combines the principles of multiple radius and large radius with chip roughing, available in sizes 08 to 20.
Wall finishing
High feed roughing
Surface finish

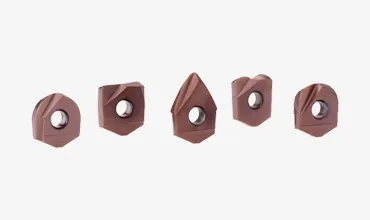

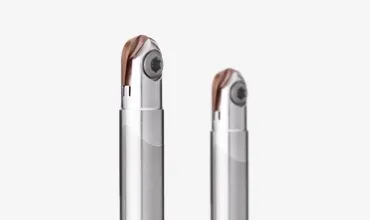

Product range
