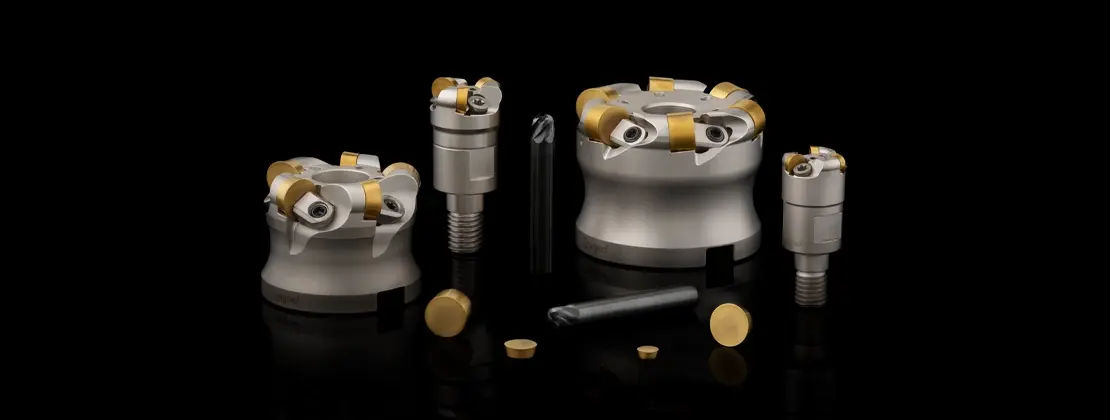

Indexable Inserts and All-Ceramic Milling Cutters

Pastilhas Indexáveis e Fresas de Cerâmica Integral

CERABOOST

Nickel-based superalloys are valued for their exceptional high-temperature strength, structural reliability, and corrosion and fatigue resistance, making them ideal for engineering components subjected to high thermomechanical loads, especially in the aerospace industry. However, their remarkable properties result in reduced machinability, limiting processing efficiency. Challenges include high cutting resistance, a tendency to work harden, abrasive carbide precipitates, and extreme temperatures at the tool-workpiece interface.

Furthermore, low thermal conductivity hinders heat dissipation, while the material's high weldability causes built-up edges to form on cutting tools, further complicating machining operations and requiring advanced cutting technologies to improve performance and efficiency.

Palbit's CERABOOST range combines advanced ceramic technology with optimized geometry to deliver exceptional performance and efficiency when machining nickel-based alloys, from roughing to semi-finishing.

The CERABOOST range of milling tools includes ceramic indexable inserts and Integral Ceramic Milling Cutters, developed to meet the different requirements of superalloy machining.

Introduction to CERABOOST Products

INDEXABLE CERAMIC TILES

High-performance ceramic milling solution that provides stable, high-speed machining with versatile insert geometries.

CERABOOST 44090 | RPGN 0602: Diameter Ø16 and Ø20mm
CERABOOST 44190 | RPGN 0903: Diameter Ø25 and Ø32mm
CERABOOST 44290 | RPGN 1204: Diameter Ø32, Ø40 and Ø50mm
CERABOOST 44590 | RPGN 1207: Diameter Ø50, Ø63 and Ø80mm

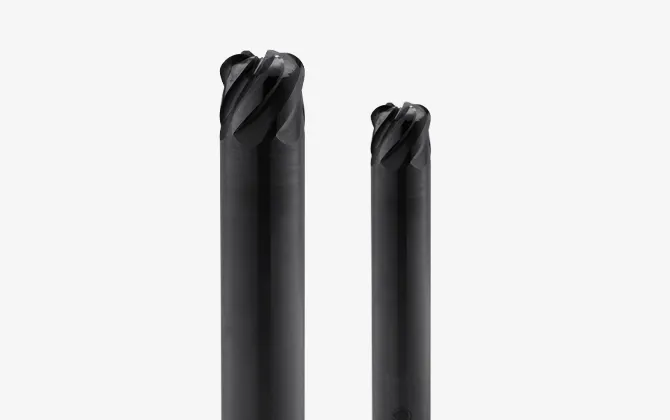

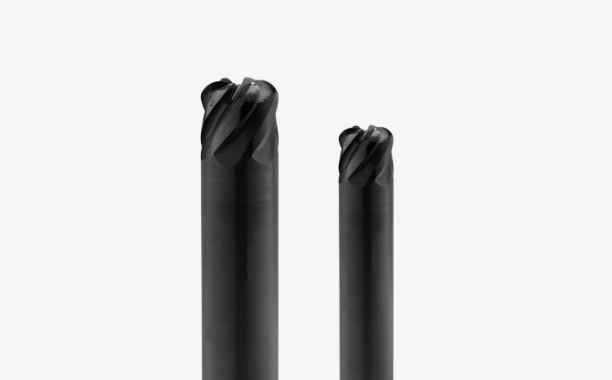

INTEGRAL CERAMIC BITS

End mills that combine an advanced substrate with a unique cutting geometry for superior productivity.

CERABOOST CR42SS: Diameter Ø6 to Ø16mm

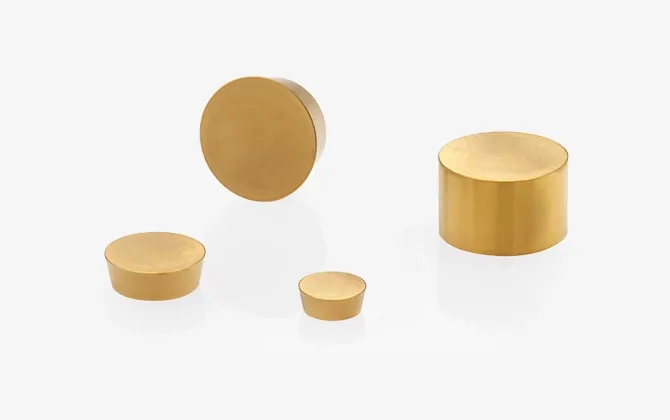

Round Tablets

Positive or negative tablets.

Rod Type

With threaded or mandrel mounting to allow for small and large cutting diameters.

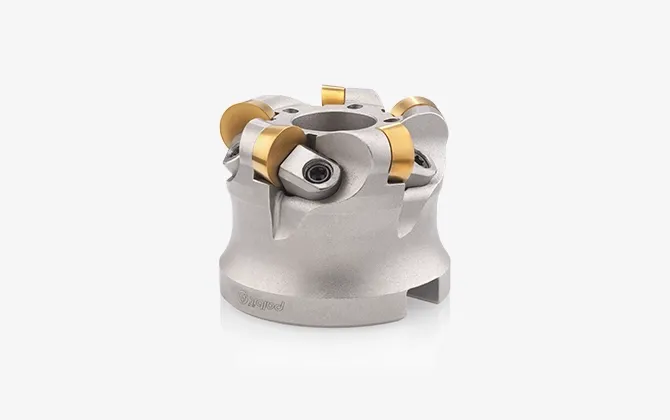

Fixation System

Wedge or screw fixing to ensure quick and easy indexing.

Coated Tablets

To reduce material adhesion.

Robust Core

75% of the cutting diameter.

High Performance Substrate

High heat resistance for high speed machining.

Optimized Flute Geometry

For easy chip evacuation.

Redefining excellence in machining
with advanced ceramic solutions for challenging materials.

Ceramic Grades

To meet the challenges of machining advanced materials, ceramic cutting tools have been developed and are currently considered one of the most effective solutions. Their excellent heat resistance and chemical stability, combined with exceptional hardness and wear resistance, make them highly suitable for demanding applications.

Composed primarily of alumina (Al₂O₃) or silicon nitride (Si₃N₄), ceramic tools are tailored to meet specific requirements through the use of different grades and additives. These tools excel in high-speed machining and extreme environments, offering superior performance and a high material removal rate compared to traditional materials, making them the preferred choice for demanding applications.

Main Benefits of Ceramic Grades

■ Excellent heat resistance;

■ High hardness;

■ High wear resistance;

■ Excellent chemical stability;

■ Dry machining;

Palbit offers a special ceramic grade, PCN010 , which can be coated or uncoated and is ideal for machining nickel-based alloys such as Inconel. The PCN010 grade, with its SiAlON composition, enables high stock removal rates to be achieved under extreme operating conditions, minimizing wear in roughing applications. SiAlON ceramic grades are characterized by their exceptional hardness and extreme wear resistance, combined with high chemical stability.

When PCN010 grade is coated, it becomes PCNY10 grade, providing several significant benefits. These include easy wear identification, a reduced coefficient of friction, reduced material adhesion and more stable wear progression.
