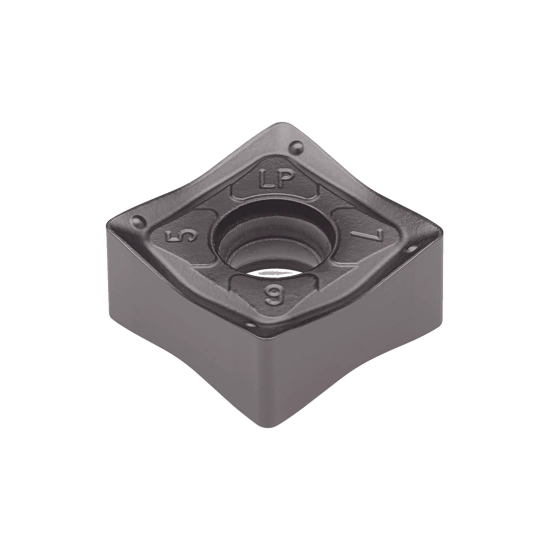

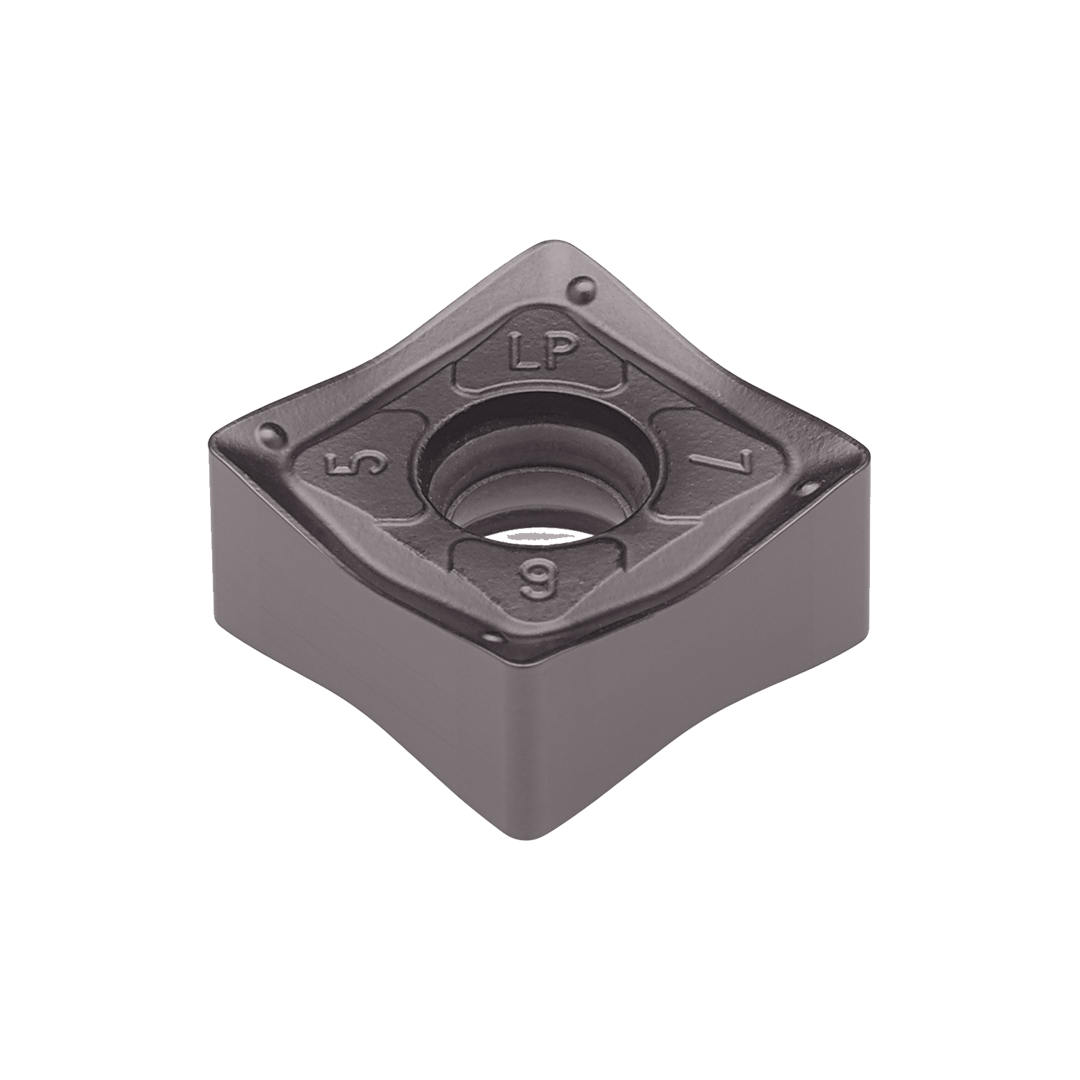

PAST. SNHU 120608 ZNER-LP PH7740
1112020G6 | PAST. SNHU 120608 ZNER-LP PH7740
Dados do produto
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Facejamento
Cutting edge count (CEDC)
8

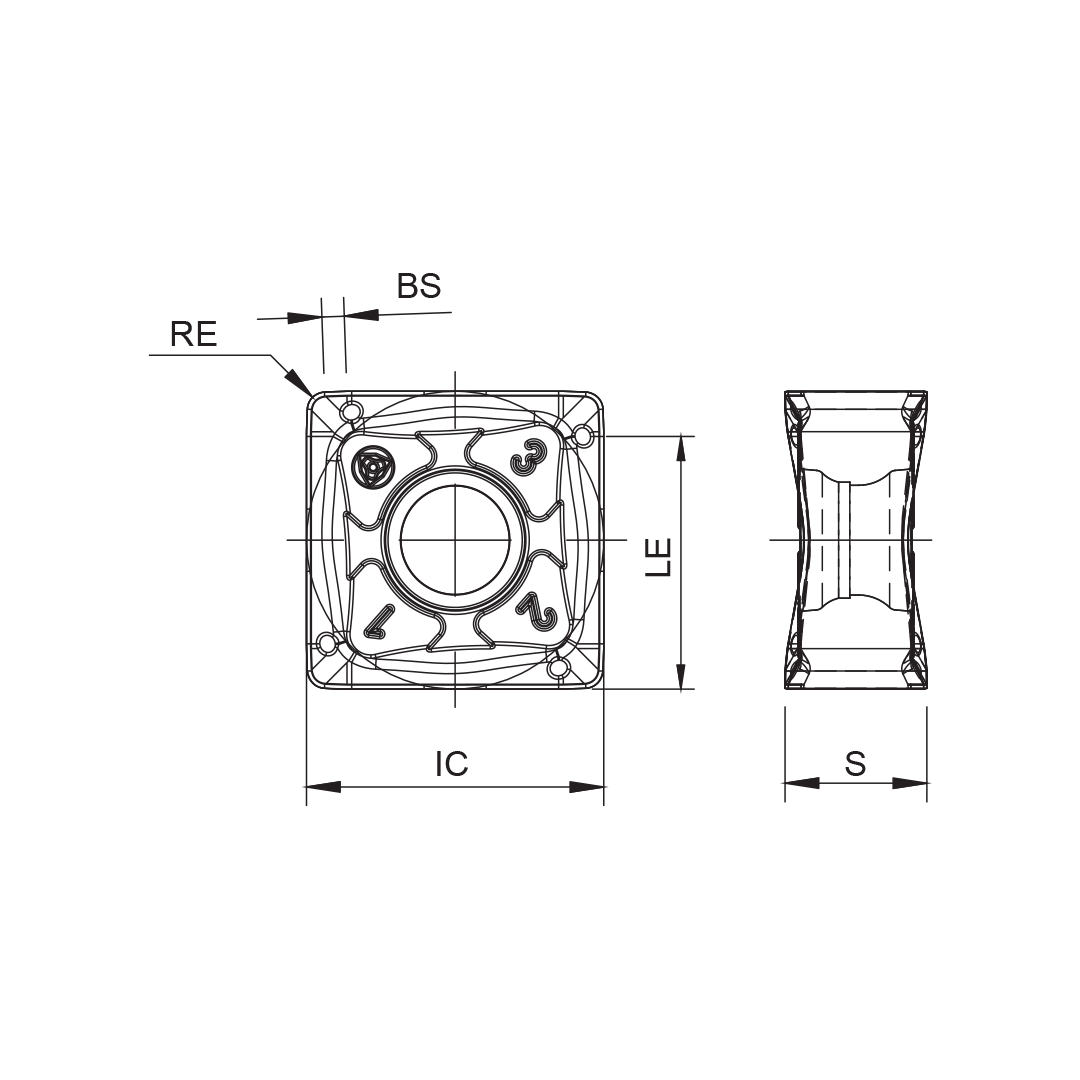

Inscribed circle diameter (IC)
13.3 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
11.6 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH7740
Insert thickness (S)
6.35 mm
Wiper edge length (BS)
1 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.1929 mm
Tolerance class insert (TCINS)
H
Prog. Stocks
Sim
* parâmetros das ferramentas de corte em conformidade com a norma ISO 13399. Saiba mais aqui.
Valores iniciais
- K
VC (m/min) (100 - 220)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 10.5)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 10.5)
- M
VC (m/min) (90 - 180)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 10.5)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 10.5)
- P
VC (m/min) (100 - 200)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 10.5)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 10.5)
