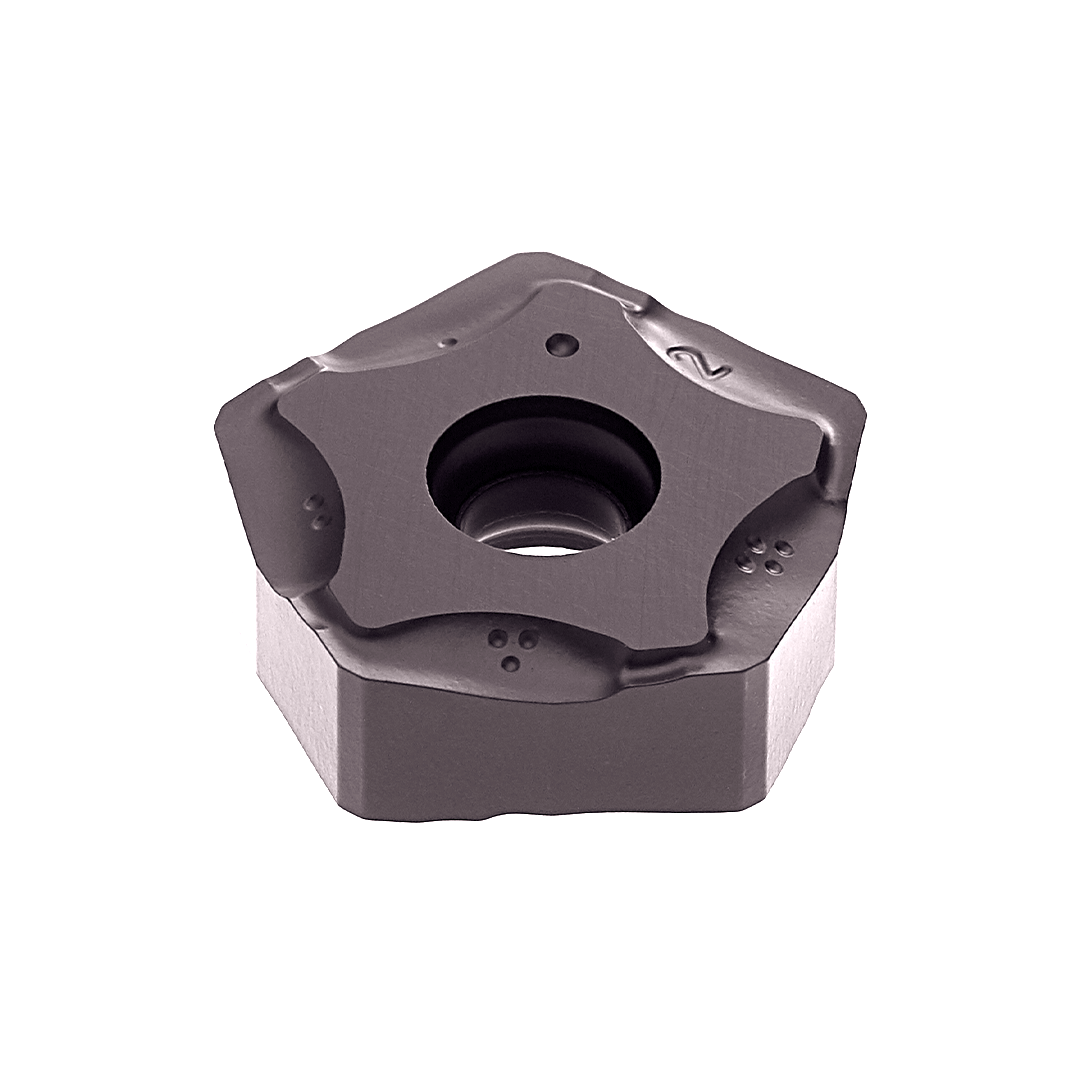

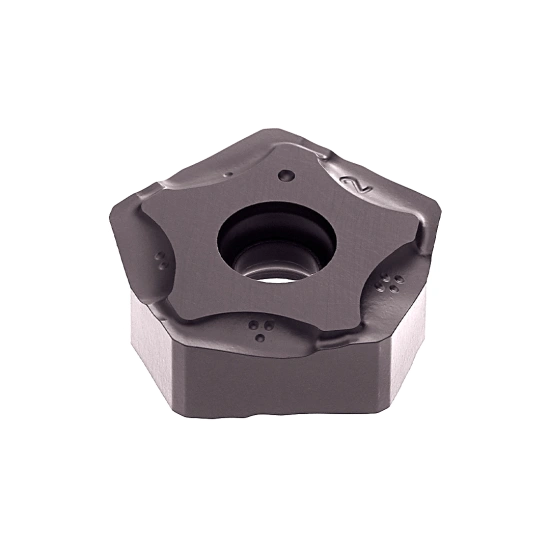

PLAQUITA PNKX 1105 ZNER-MK PH7910
1112294G1 | PAST. PNKX 1105 ZNER-MK PH7910
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Planeado
Cutting edge count (CEDC)
10
Inscribed circle diameter (IC)
16.5 mm
Insert shape code (SC)
P
Cutting edge effective length (LE)
5.7 mm
Hand (HAND)
R
Grade (GRADE)
PH7910
Insert thickness (S)
5.66 mm
Wiper edge length (BS)
1.3 mm
Chip breaker manufacturer's designation (CBMD)
MK
Fixing hole diameter (D1)
0.1811 mm
Tolerance class insert (TCINS)
K
Prog. Stocks
Sí
*parámetros de las herramientas de corte conformes a la norma ISO 13399. Más información aquí.
Start values
- K
VC (m/min) (150 - 300)
FZ (mm/t) (0.15 - 0.3)
AP (mm) (0.5 - 5)
FZ (mm/t) (0.15 - 0.3)
AP (mm) (0.5 - 5)
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.15 - 0.3)
AP (mm) (0.5 - 5)
FZ (mm/t) (0.15 - 0.3)
AP (mm) (0.5 - 5)
