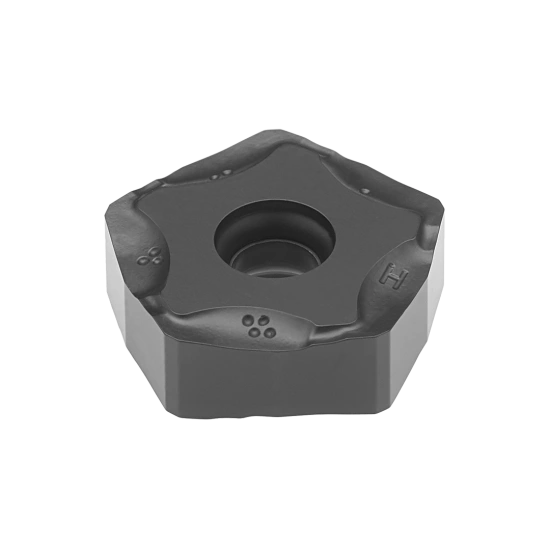

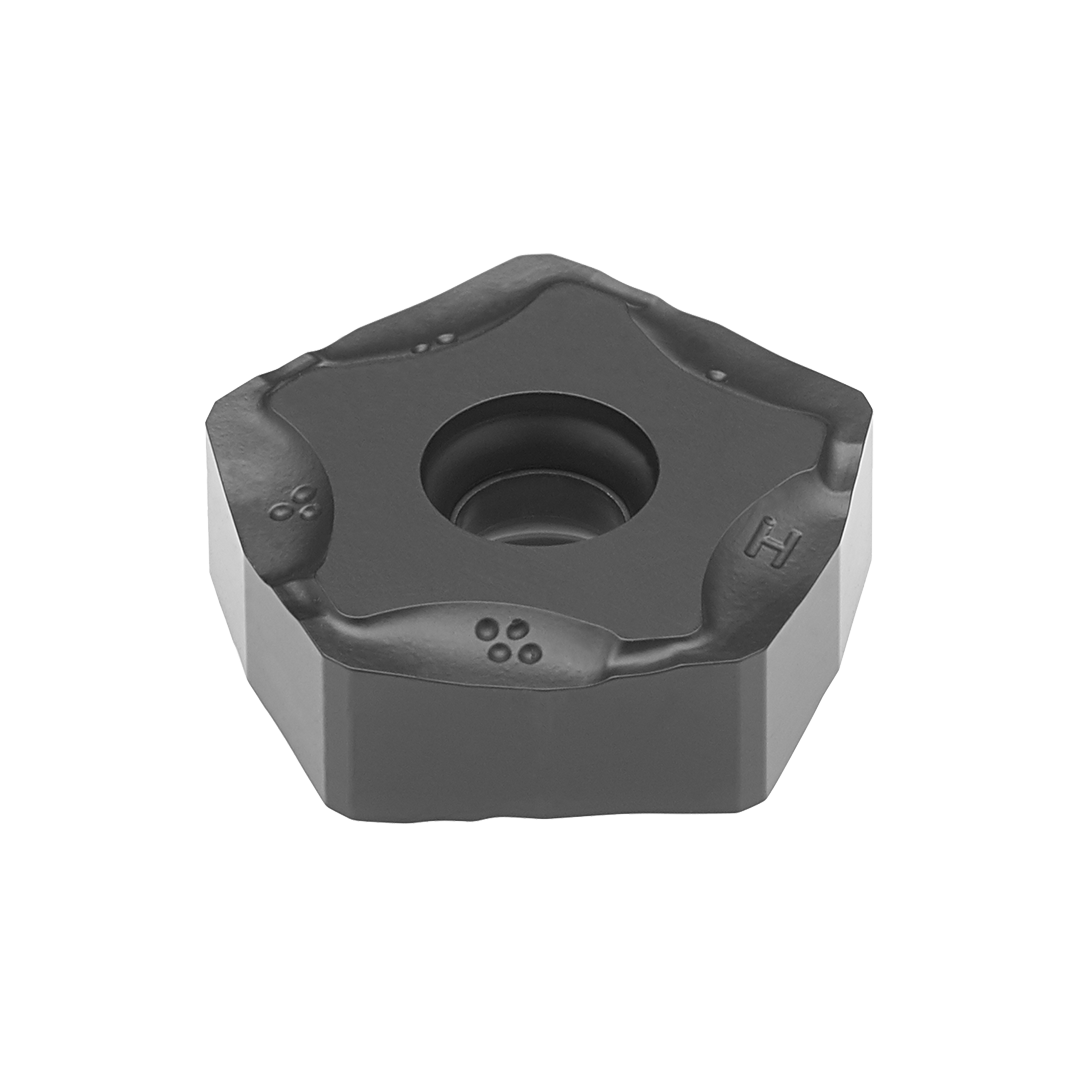

INSERT PNHX 1105 ZNER-HK PH5740
1111998L9 | PAST. PNHX 1105 ZNER-HK PH5740
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
10

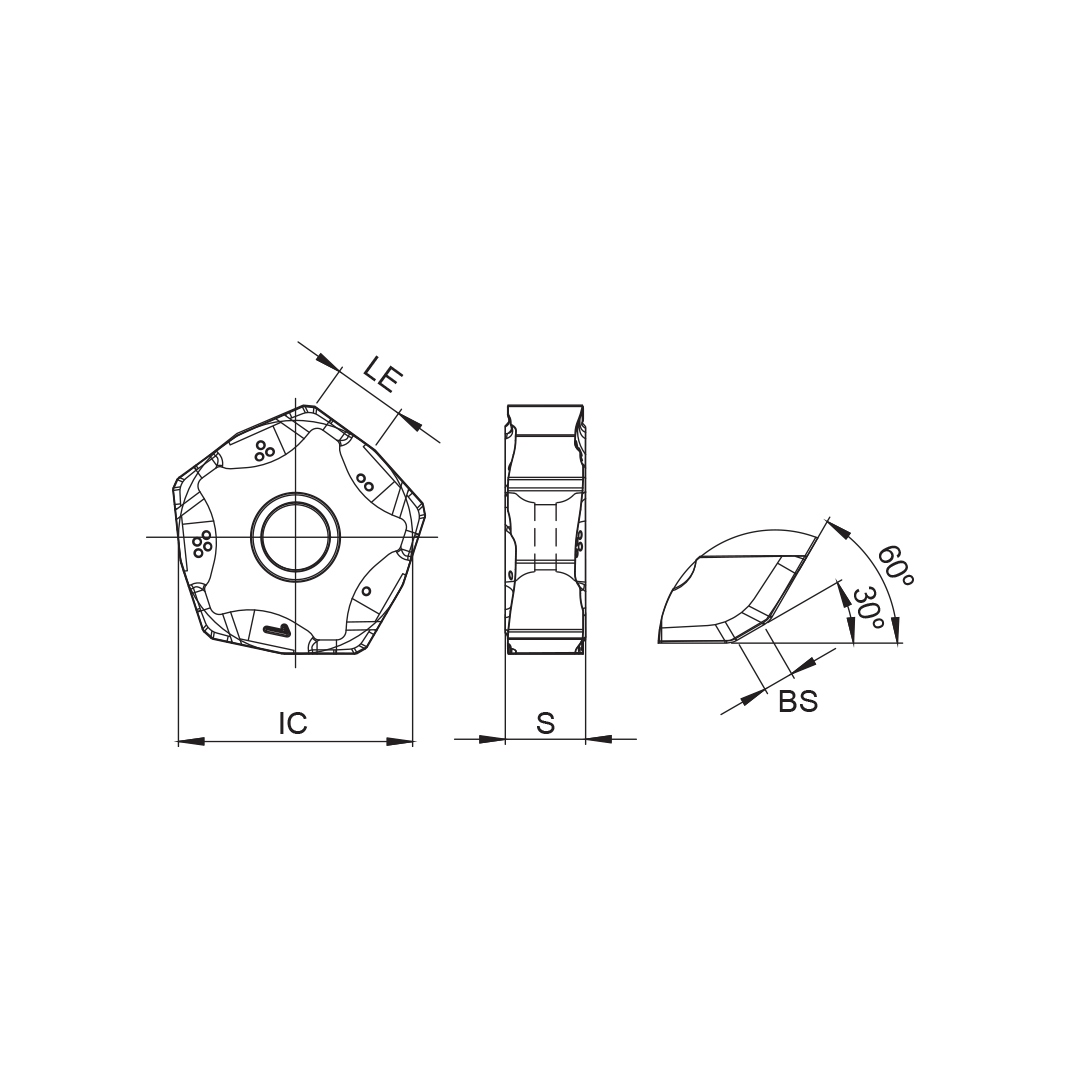

Inscribed circle diameter (IC)
16.5 mm
Insert shape code (SC)
P
Cutting edge effective length (LE)
5.7 mm
Hand (HAND)
R
Grade (GRADE)
PH5740
Insert thickness (S)
5.66 mm
Wiper edge length (BS)
1.3 mm
Chip breaker manufacturer's designation (CBMD)
HK
Fixing hole diameter (D1)
0.1811 mm
Tolerance class insert (TCINS)
H
Prog. Stocks
No
* cutting tool parameters according to ISO 13399. Read more here
Start values
- K
VC (m/min) (120 - 280)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (1 - 3.5)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (1 - 3.5)
